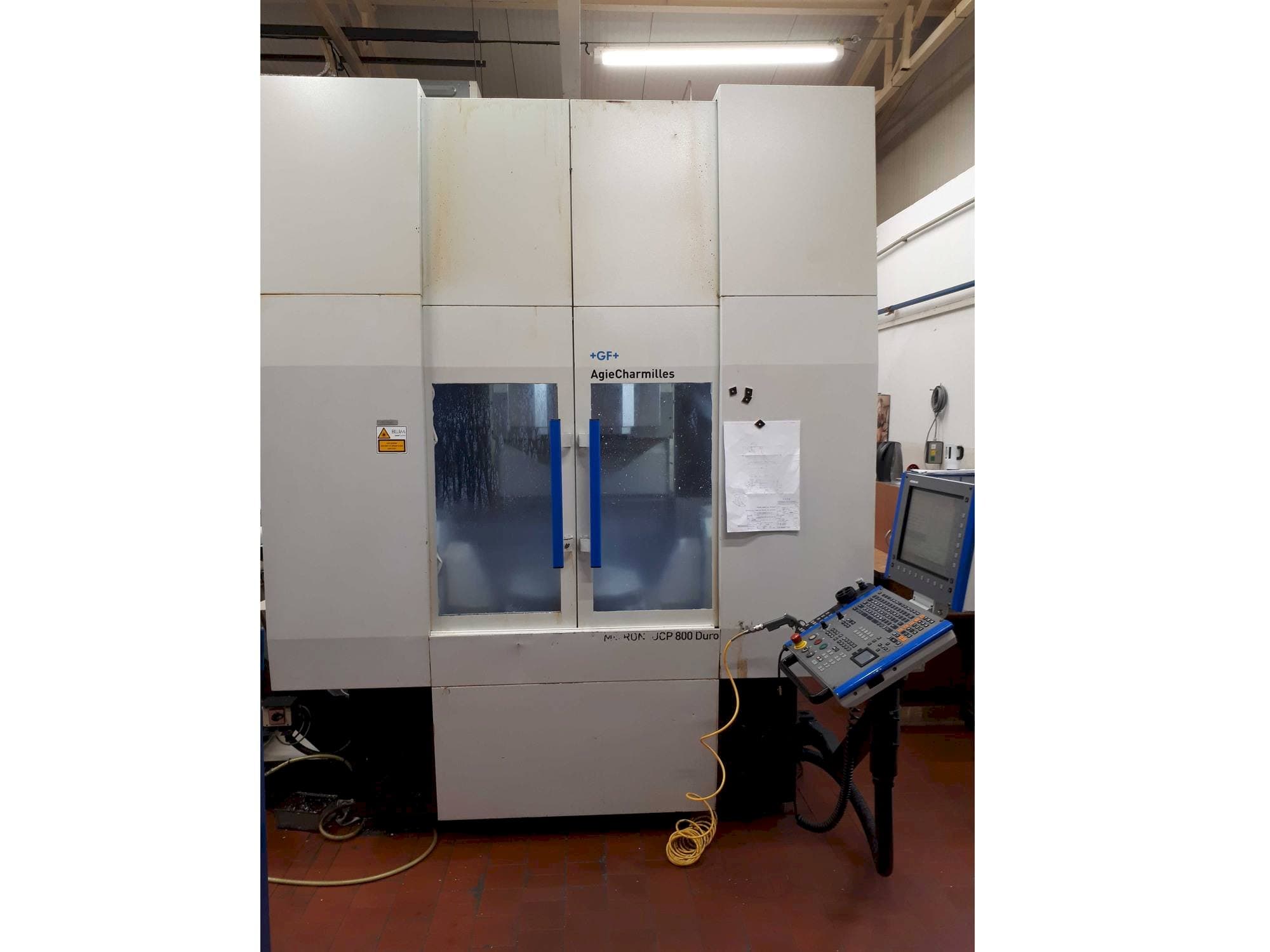

Front view of GF Mikron UCP 800 Duro machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

+GF+ UCP 800 Duro

Photo Gallery

+GF+ - UCP 800 DuroCZ-MIL-GF -2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
GF Mikron UCP 800 Duro Vertical machining center

Show in original language

This +GF+ Mikron UCP 800 Duro Vertical machining center was made in the year 2007 in Switzerland. This 5 axis machine is operated through a Heidenhain iTNC 530 control unit of the same brand. It has been working for 63732 hours, of which 35256 are spindle hours. It has a spindle speed up to 20000 rpm. Very good working conditions, regularly maintained.

Overview

brand: +GF+
year: 2007
MODEL: UCP 800 Duro
production hours: 63732
application type: Milling
Location: Czech Republic
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - +GF+ UCP 800 Duro

General Data

Measurements width: 2400 mm
Measurements depth: 3200 mm
Measurements height: 3200 mm
Machine weight: 9900 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN
Spindle motor power: 16 kw
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 600 mm
Outer width: 600 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 90/140 mm
Max tool length: 300 mm
Type of tool holder: HSK-63A

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 360 degrees
- - A axis +120 degrees/-30 degrees
- - Feedrate x/y/z 15/15/20 m/min.
- - Rapid feedrate 30 m/min.
- - Through spindle coolant 50 bar
Qualitative Machine Benefits:
- - Very good condition
- - Regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
