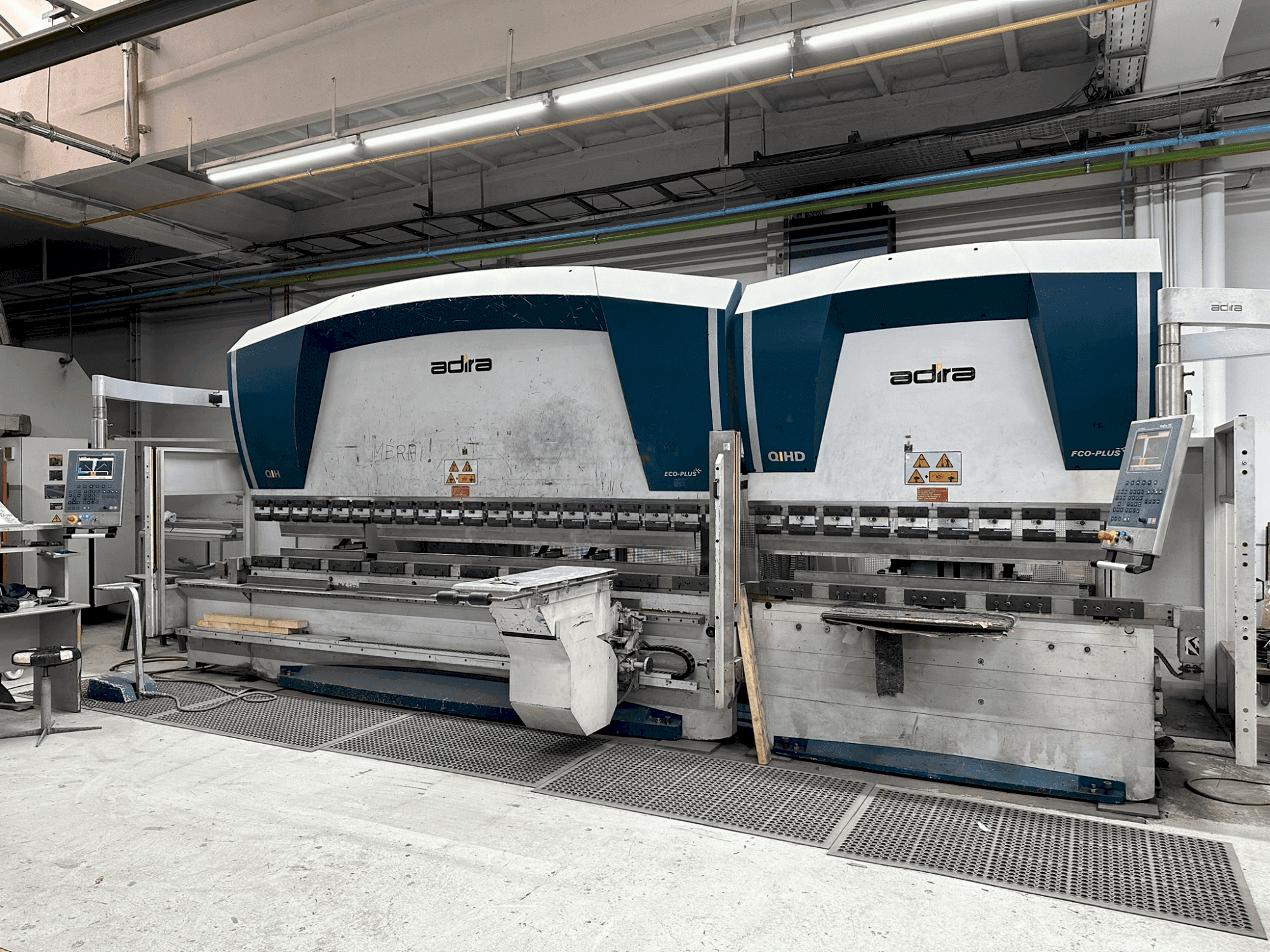

This ADIRA QIHD-5040 + QIHD-5020 bending was manufactured in 2008. It features a maximum bending length of 4000 mm and a machining length of 4050 mm for the QIHD-5040, and 2000 mm bending length with 2050 mm machining length for the QIHD-5020. Both models offer robust performance with significant force capacities and efficient speeds in pressing and returning. Ideal for high-precision tasks, the ADIRA press machine we have for sale is a valuable addition to any workshop. Contact us for more information.
Overview
- brand: ADIRA
- year: 2008
- MODEL: QIHD-5040 + QIHD-5020
- application type: Bending
- Location: Hungary
- machine type: Press Brake
Technical Information - ADIRA QIHD-5040 + QIHD-5020
Main drive
- Pressing force: 1500 kN
- Bending length: 4000 mm
- Main motor power: 7.5 kW (10.1 HP) at 50 Hz, 9 kW (12.1 HP) at 60 Hz
Movement
- X-AXIS Movement: 630 mm
Additional Information
- Technical Machine Benefits:
- - Approach speed: 100 mm/s (3. 87 in/s)
- - Pressing speed: 7 mm/s (0. 28 in/s) at 50 hz, 8 mm/s (0. 31 in/s) at 60 hz
- - Return speed: 65 mm/s (2. 52 in/s) at 50 hz, 80 mm/s (3. 1 in/s) at 60 hz
- - Machining length: 4050 mm (13. 28 feet)
- - Distance between columns: 3150 mm (10. 33 feet)
- - Frame depth: 400 mm (15. 7 inches)
- - Maximum stroke length: 160 mm (6. 3 inches)
- - Free height (without tool): 400 mm (15. 7 inches)
- - Closed height (without tool): 240 mm (9. 4 inches)
- - Standard upper beam width: 195 mm (7. 7 inches)
- Qualitative Machine Benefits:
- - Back gauge speed:induction motor: 125 mm/s (0. 41 in/s)
- - Servo motor: 500 mm/s (1. 64 in/s)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
