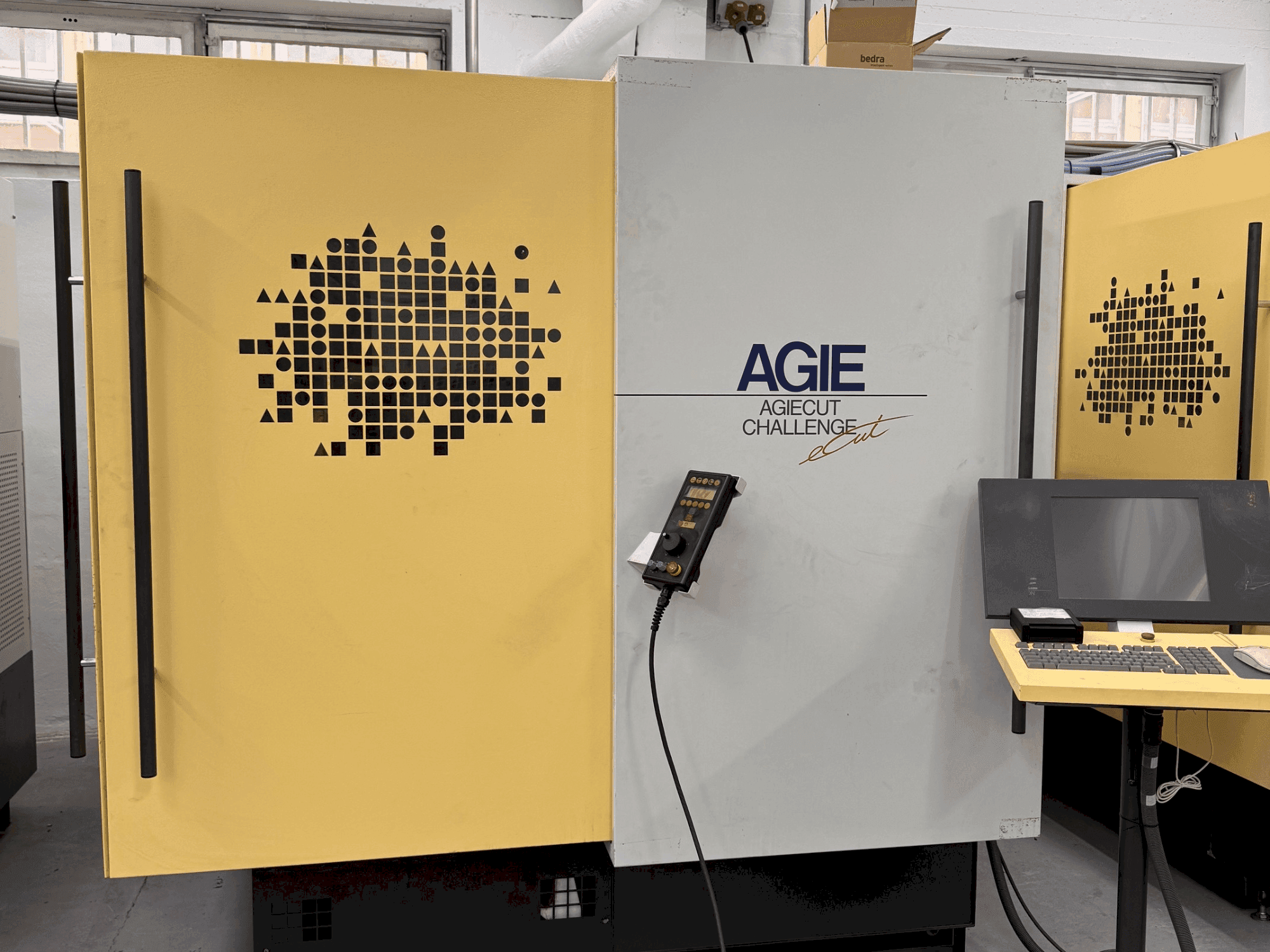

AGIE - Challenge 2 eCutDE-EDM-AGI-2006-00001

Additional Equipment

• - Wire System: Wire diameter 0.1-0.33 mm, Wire speed 60-300 mm/s, Wire tension 0-25 N, Wire spool up to 25 kg, Threading system up to 250 mm height, nozzles 1 mm and 2 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max workpiece dimensions (wxdxh): 750 x 550 x 250 mm
  • - Axis travels u/v: ±70 mm
  • - Positioning speeds: manual (x/y) 30°/100 mm, programmable (x/y) exc “a” 0. 9 m/min, cha/exc “d” 3 m/min, u/v/z 0. 6 m/min
  • - Compressed air: Ø 7 mm, 6-8 bar, 5 m³/h, filtered, dehumidified, unlubricated
  • - Cooling water: ≤ tune level -7°c, 20 l/min, 1. 5-3 bar

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
