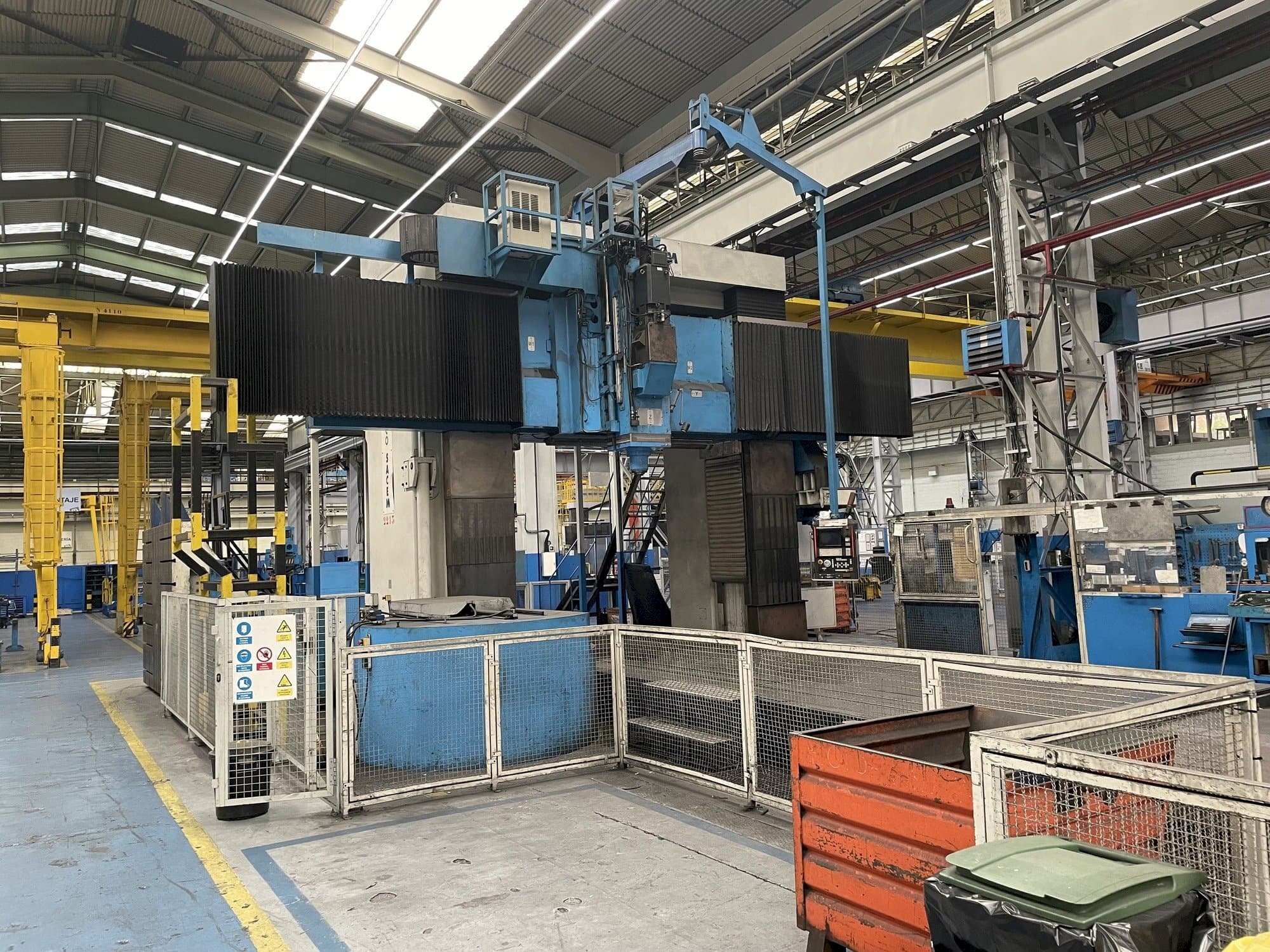

Front view of AMCO-SACEM ACEM FPF1-3300 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

AMCO-SACEM ACEM FPF1-3300

Photo Gallery

AMCO-SACEM - ACEM FPF1-3300ES-MIL-AMC-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
AMCO-SACEM FPF1-3300 Milling machine

Show in original language

This AMCO-SACEM FPF1-3300 Milling machine was manufactured in the year 2000. It is equipped with an NUM 1060 control unit and has 5 axis. The machine has a spindle speed of 4-3000 rpm.

Overview

brand: AMCO-SACEM
year: 2000
MODEL: ACEM FPF1-3300
application type: Milling
Location: Spain
machine type: Gantry Milling Machine

Technical Information - AMCO-SACEM ACEM FPF1-3300

General Data

Machine weight: 190000 KG

Control Unit

Model: 1060

Main drive

Spindle speed range: 4-3000 1/MIN
Spindle motor power: 40 KW
Number of axis: 5

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ram dimensions 570 x 525 mm.
- - Vertical stroke of the crosshead (axes "w1 and w2) 1. 500 mm.
- - Ram vertical stroke (axis "z") 1. 000 mm.
- - Longitudinal table stroke ("x" axis) 6. 000 mm.
- - Transversal course spindle ("y" axis) 5. 200 mm.
- - Cnc spindle rotation "c" axis n x 360°.
- - Cnc spindle rotation "a" axis +- 95°.
- - Working feeds of all axes 3 to 10. 000 mm/min.
- - Rapid traverse on all axes 10. 000 mm/min.
- - Total installed power 175 kva, compressed air flow rate 11 m'/hour
Qualitative Machine Benefits:
- - Maximum torque on the main spindle 1 360 nm.
- - Nominal speed main spindle 281 грm.
- - Inner cone of the main spindle waldrich-siegen
- - Outer centering diameter 280 mm.
- - Type of tool clamping adapter waldrich-siegen
- - Has 3 heads

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
