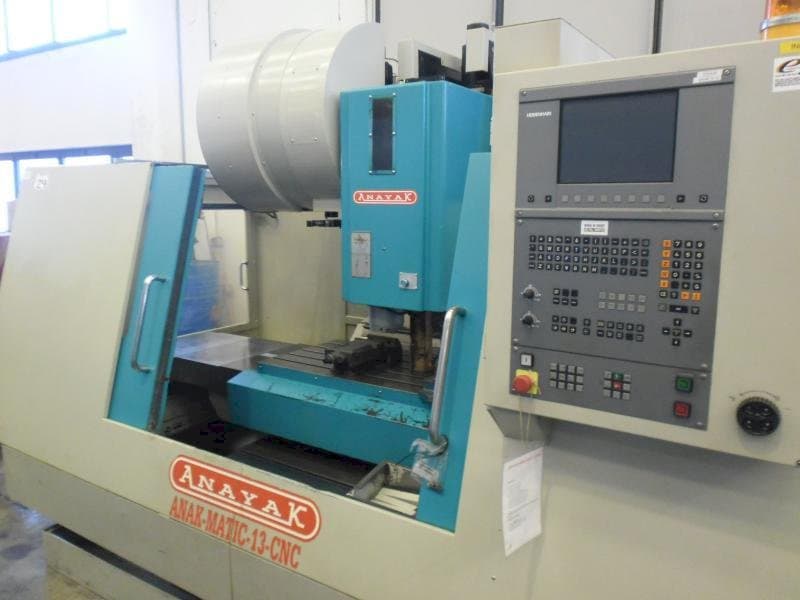

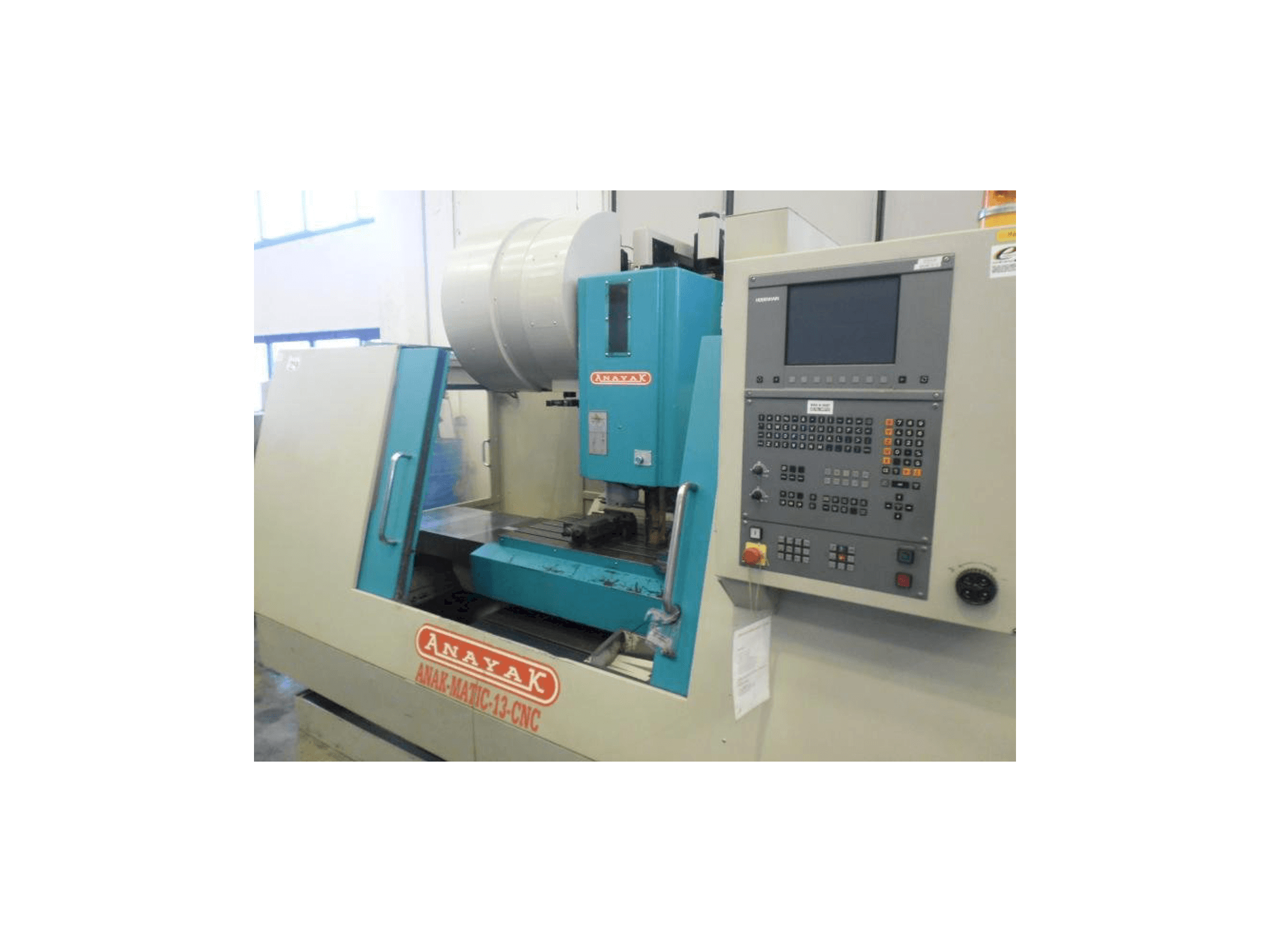

Front view of ANAYAK ANAK-MATIC 13 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ANAYAK ANAK-MATIC 13

Photo Gallery

ANAYAK - ANAK-MATIC 13IT-MIL-ANA-2002-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
ANAYAK ANAK-MATIC 13 Vertical machining center.

Show in original language

This ANAYAK ANAK-MATIC 13 Vertical machining center was made in 2002 in Spain. It is controlled by a HEIDENHAIN 426M control unit and has 3 axis. The machine has a spindle speed of 9000 rpm.

Overview

brand: ANAYAK
year: 2002
MODEL: ANAK-MATIC 13
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - ANAYAK ANAK-MATIC 13

General Data

Machine weight: 7500 kg

Control Unit

Model: 426M
Brand: HEIDENHAIN

Main drive

Spindle speed range: 9000 1/MIN
Spindle motor power: 12 kW
Number of axis: 3

Movement

X-AXIS Movement: 1300 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 620 mm

Table

Outer length: 1420 mm
Outer width: 600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool change 24 positions
- - Chip conveyor
- - Roller guides
- - Spindle attachment iso 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
