➤ Used ANAYAK HVM 5000P For Sale | gindumac.com

Show in original language

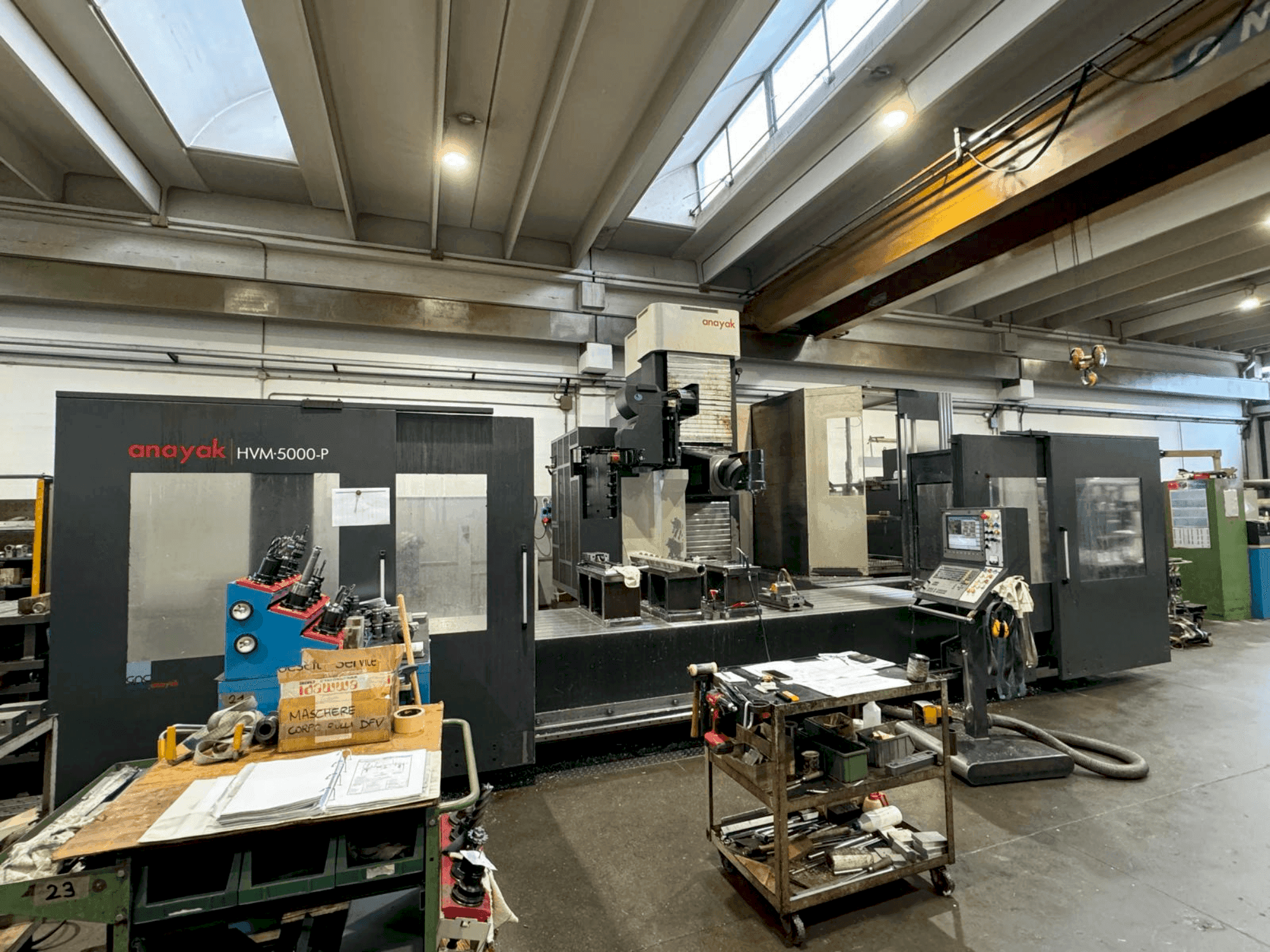

This 5-axis ANAYAK HVM 5000P CNC milling machine was manufactured in 2010. It features a large table surface of 4970 x 1200 mm, capable of handling loads up to 6000 Kg. Equipped with a multi-angular headstock and automatic angular positioning for precise control. The spindle supports speeds up to 6000 rpm, powered by a robust 28/38 kW motor. If you are looking to get high-quality milling capabilities, consider the ANAYAK HVM 5000P machine we have for sale. Contact us for more information.

Overview

brand: ANAYAK
year: 2010
MODEL: HVM 5000P
application type: Milling
Location: Italy
machine type: CNC Milling Machine
control unit brand: HEIDENHAIN

Technical Information - ANAYAK HVM 5000P

Control Unit

Brand: HEIDENHAIN

Main drive

Tool taper: ISO 50
Number of axis: 5

Table

Outer length: 4970 mm
Outer width: 1200 mm
Table load: 6000 kg

Additional Equipment

- ISO 7388/1 DIN 69871-A, DIN 69871-AD compatible
- Tool Clamping: Hydraulic / Tool Clamping Force: 2000 daN
- Inner cooling system: 130 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Travel: longitudinal - x: 4300 mm / transversal - y: 1500/1375 mm / vertical - z: 2000 mm
- - Number and width of t-slots (t): 9 x 22 mm / distance between t-slots: 130 mm
- - Working feed (x, y, z): 10000 mm/min / rapid feed (x, y, z): 20000 mm/min
- - Motor torque: x, z = 80 nm / y = 63 nm
- - Types: multi-angular, 45° / angular positioning: automatic axis a and b / rotation locking: hydraulic
- - Motor power: 28/38 kw / spindle speed: 6000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
