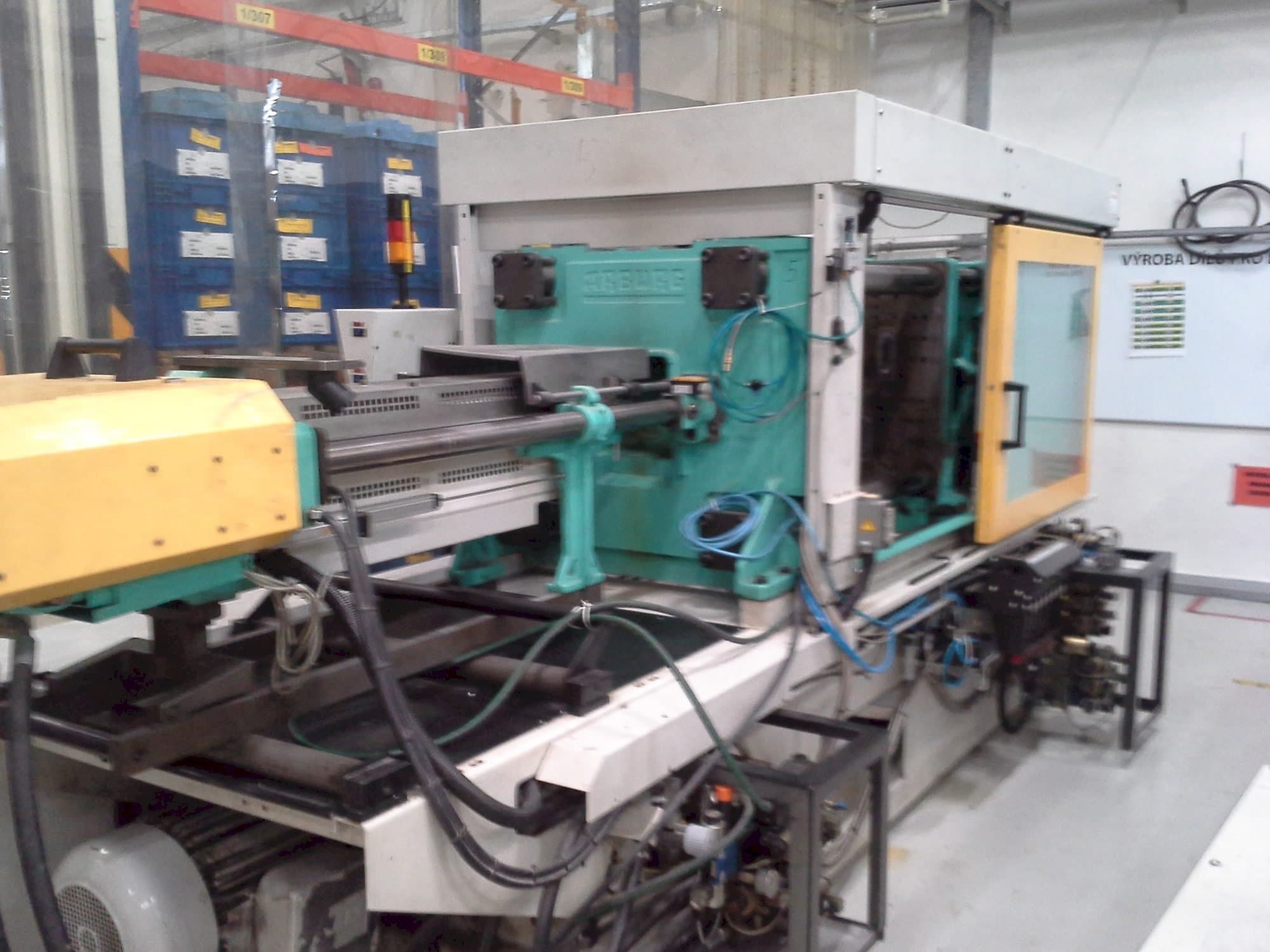

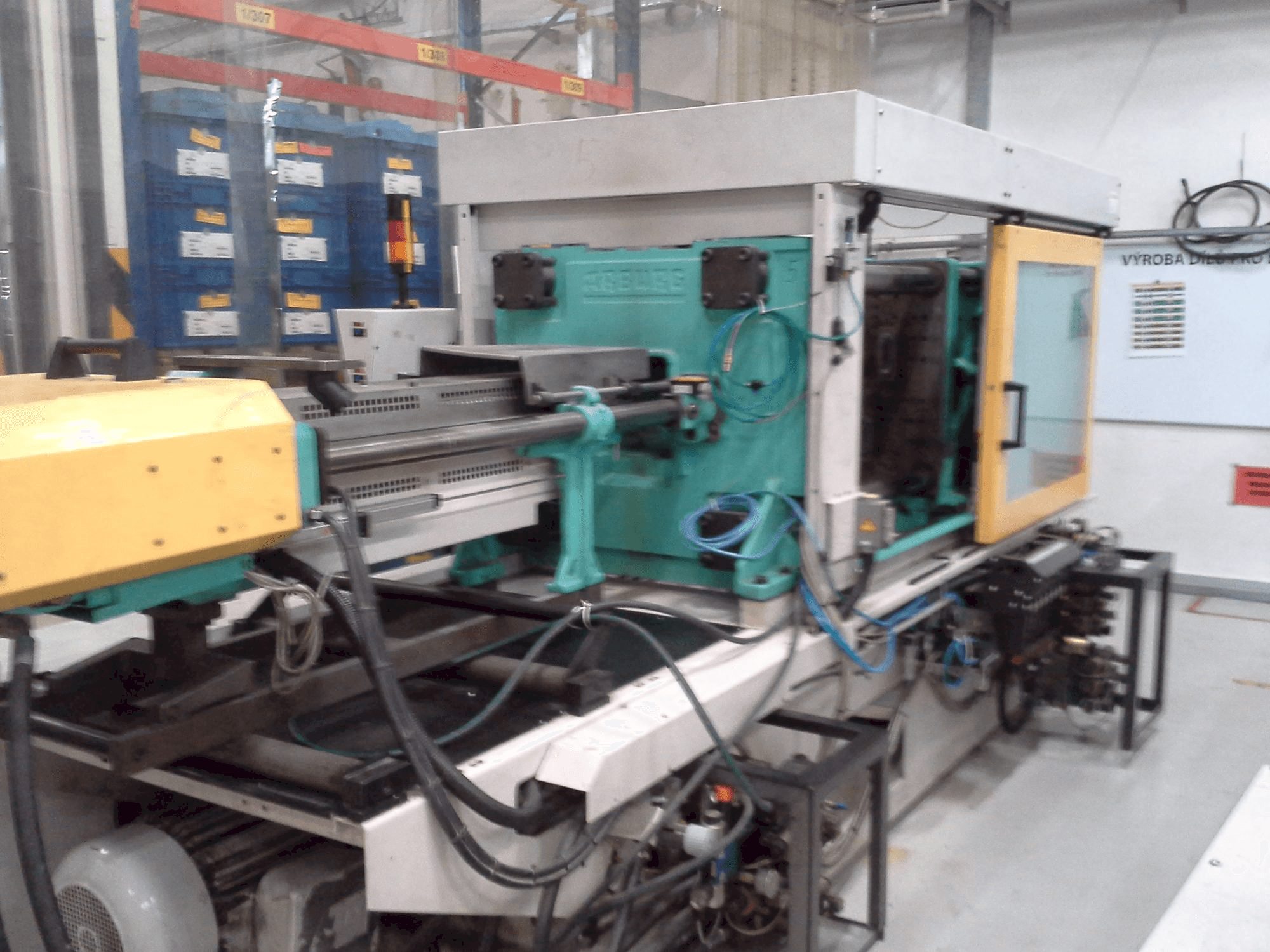

Arburg 570C 2000-675 Injection Moulding Machine

Show in original language

This Arburg 570C 2000-675 Injection Moulding Machine was manufactured in the year 2001 in Germany. This machine can works with a clamping force 2200 kN, screw diameter 55 mm, and an injection pressure up to 1890 bar.

Overview

brand: Arburg
year: 2001
MODEL: 570C 2000-675
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg 570C 2000-675

Injection Unit

Screw diameter: 55 mm
Shot weight: 390 g/PS
Stroke volume: 427 cm3 CM³
Injection pressure: 1890 bar
Adjustable heating zones: 6

Clamping unit

Clamping force: 2200 kN
Distance between bars: 570 mm
Mould height min: 600 mm
Size of mold platens: 795x795 mm
Ejector stroke: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 3 core pullers
- - Hydraulic controlled nozzles - 1
- - Pneumatic controlled nozzles - 1

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
