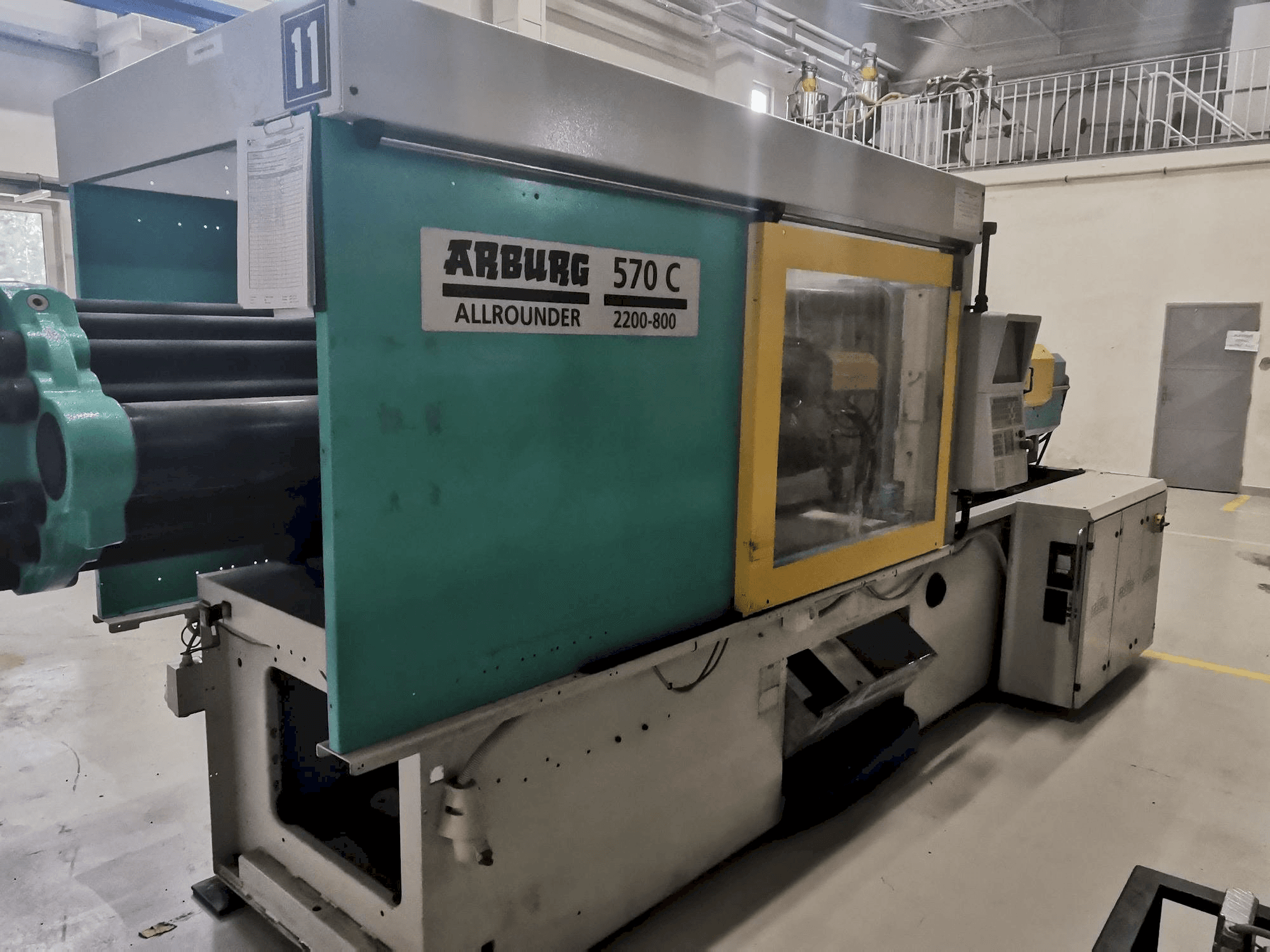

Arburg 570C 2200 - 800 Injection Moulding Machine

Show in original language

This Arburg 570C 2200 - 800 Injection Moulding Machine was built in the year 2007. This machine is capable of working with a clamping force of 2200 kN and a screw diameter of 55 mm.

Overview

brand: Arburg
year: 2007
MODEL: 570C 2200 - 800
production hours: 78000
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg 570C 2200 - 800

General Data

Machine weight: 7860 kg

Injection Unit

Screw diameter: 55 mm
Shot weight: 291 g/PS
Stroke volume: 318 CM³
Injection pressure: 1650 bar

Clamping unit

Clamping force: 2200 kN
Opening stroke: 650 mm
Distance between bars: 570 mm
Mould height min: 300 mm
Size of mold platens: 795x795 mm
Ejector stroke: 250 mm
Ejector force for / back: 66 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 3 core pullers
- - Hydraulic controlled nozzles - 1
- - Pneumatic controlled nozzles - 1
- - Hot nozzles - 12
- - Closing force 70kn
Qualitative Machine Benefits:
- - Very good condition, regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
