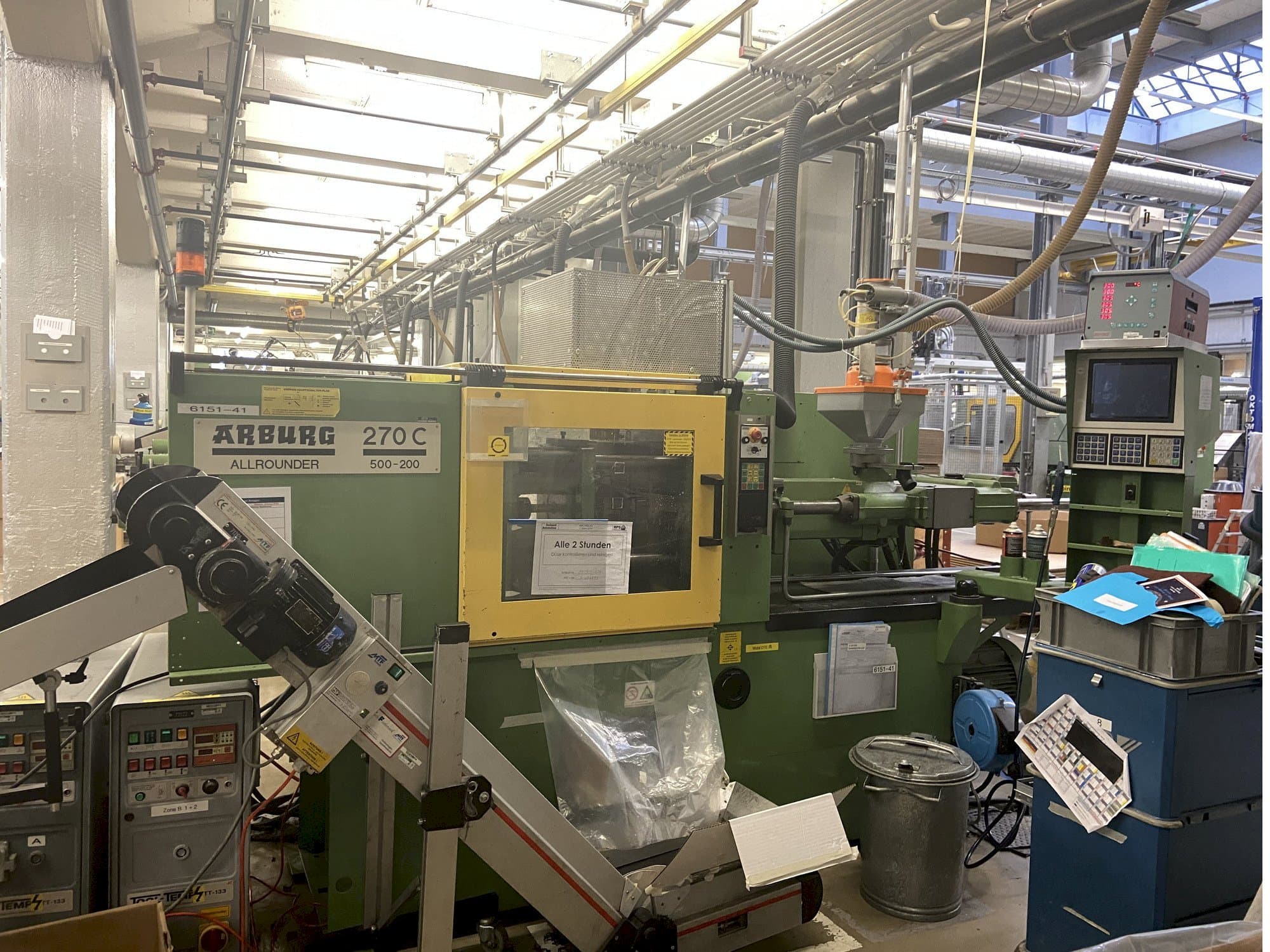

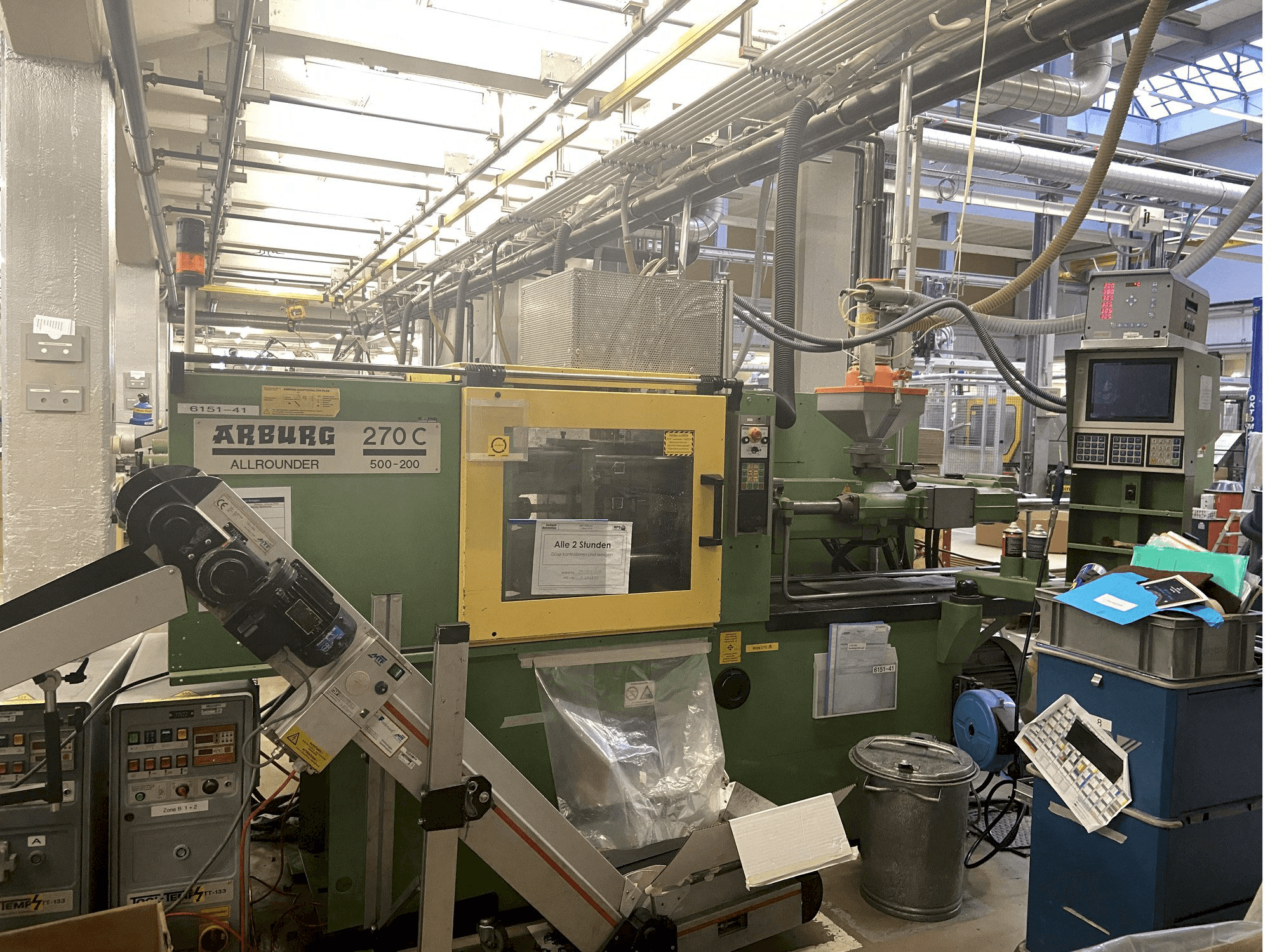

Front view of Arburg ALLROUNDER 270 C 500 - 200 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg ALLROUNDER 270 C 500 - 200

Photo Gallery

Arburg - ALLROUNDER 270 C 500 - 200CH-INJ-ARB-1995-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg ALLROUNDER 270 C 500 - 200

Show in original language

This Arburg ALLROUNDER 270 C 500 - 200 injection moulding machine was built in Germany in the year 1995. It has 62371 production hours. This machine has a clamping force 500 kN, and a screw diameter 30 mm.

Overview

brand: Arburg
year: 1995
MODEL: ALLROUNDER 270 C 500 - 200
production hours: 62371
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg ALLROUNDER 270 C 500 - 200

General Data

Machine weight: 2200 Kg

Injection Unit

Screw diameter: 30 mm
Shot weight: 97 g/ps
Stroke volume: 106 CM³
Heating capacity: 5.8 kW

Clamping unit

Clamping force: 500 kN
Distance between bars: (h x v): 270 x 270 mm
Size of mold platens: (h x v): 405 x 405 mm

Media

Main electronic connection: 400 V 3 - 50 Hz
Pump drive power: 1 x 15.00 kW
Power consumption: 20.8 kW

Additional Equipment

- Temperature devices (additional cost)
- Parts conveyor (additional cost)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
