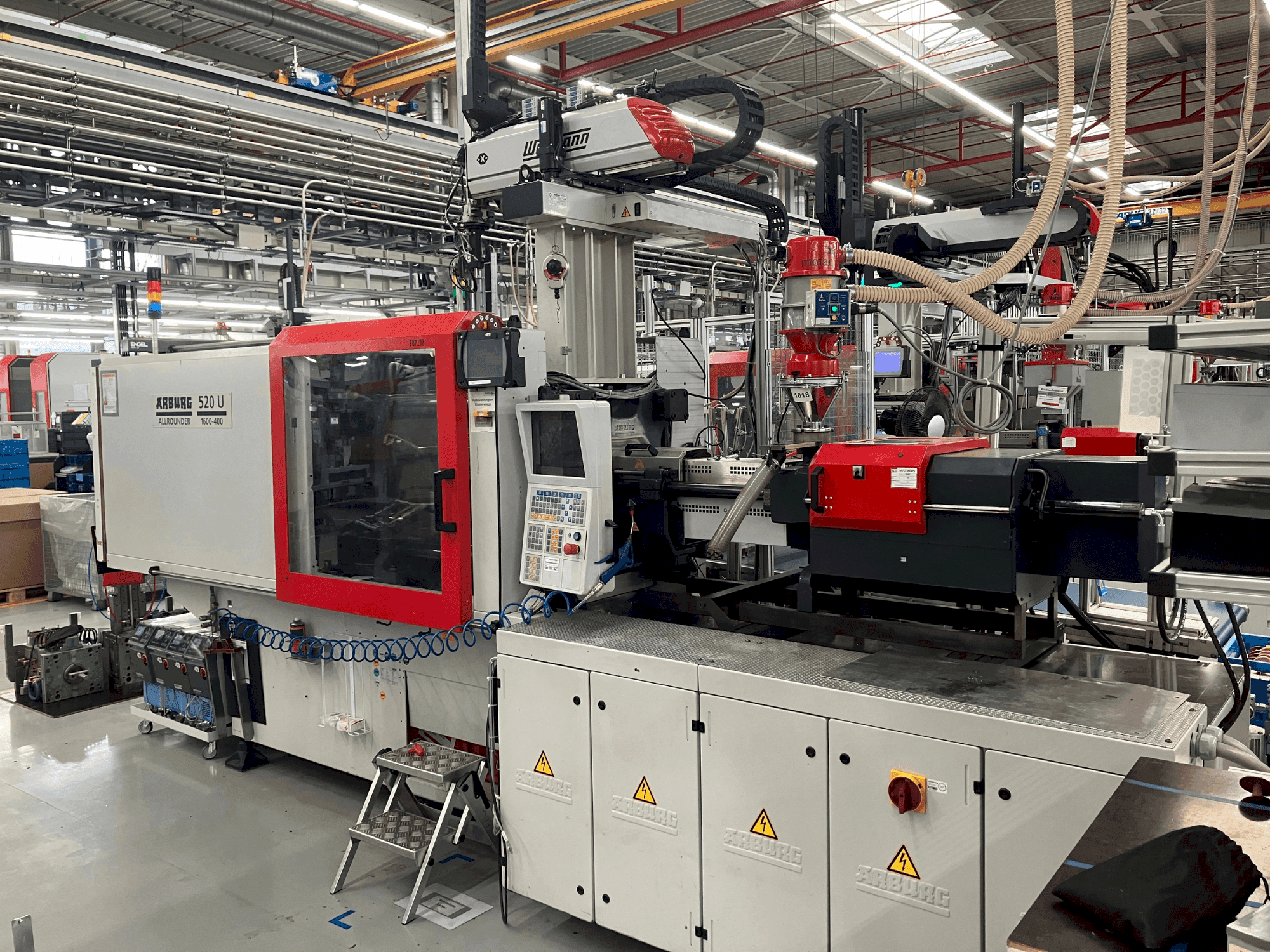

Front view of Arburg Allrounder 520 U 1600-400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 520 U 1600-400

Photo Gallery

Arburg - Allrounder 520 U 1600-400DE-INJ-ARB-2007-00006

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 520 U 1600-400 For Sale

Show in original language

This Arburg Allrounder 520 U 1600-400 was manufactured in 2007. A hydraulic injection moulding machine, it offers robust performance for your production needs. Consider the opportunity to buy this Arburg Allrounder 520 U 1600-400 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Arburg
year: 2007
MODEL: Allrounder 520 U 1600-400
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Allrounder 520 U 1600-400

Injection Unit

Screw diameter: 35 mm
Stroke volume: 154 ccm CM³
Injection pressure: 2500 bar

Clamping unit

Clamping force: 160 kn
Max open daylight: 575 mm
Distance between bars: 520 mm
Mould height min: 350 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum plate distance: 925 mm
- - Temperature control unit 2, 3 & 4: 160 °c
- - Number of thermolators: 4
- - Thermolator max temperature: 4xhb160
- - Series: 3xserie5 1xserie4
- - Type of controller: intern
- - Cold water cycles max (tool, fixing site): 2
- - Temperature sensor (mold): yes
- - Robot: quick coupling 1 (qca90), communication connector 9-pol, robot vacuum circles number 8, robot gripper circles number 2, robot axes x, y, z, c, b.
- - Tray type: standard
Qualitative Machine Benefits:
- - Oil filling quantity: 250 l

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
