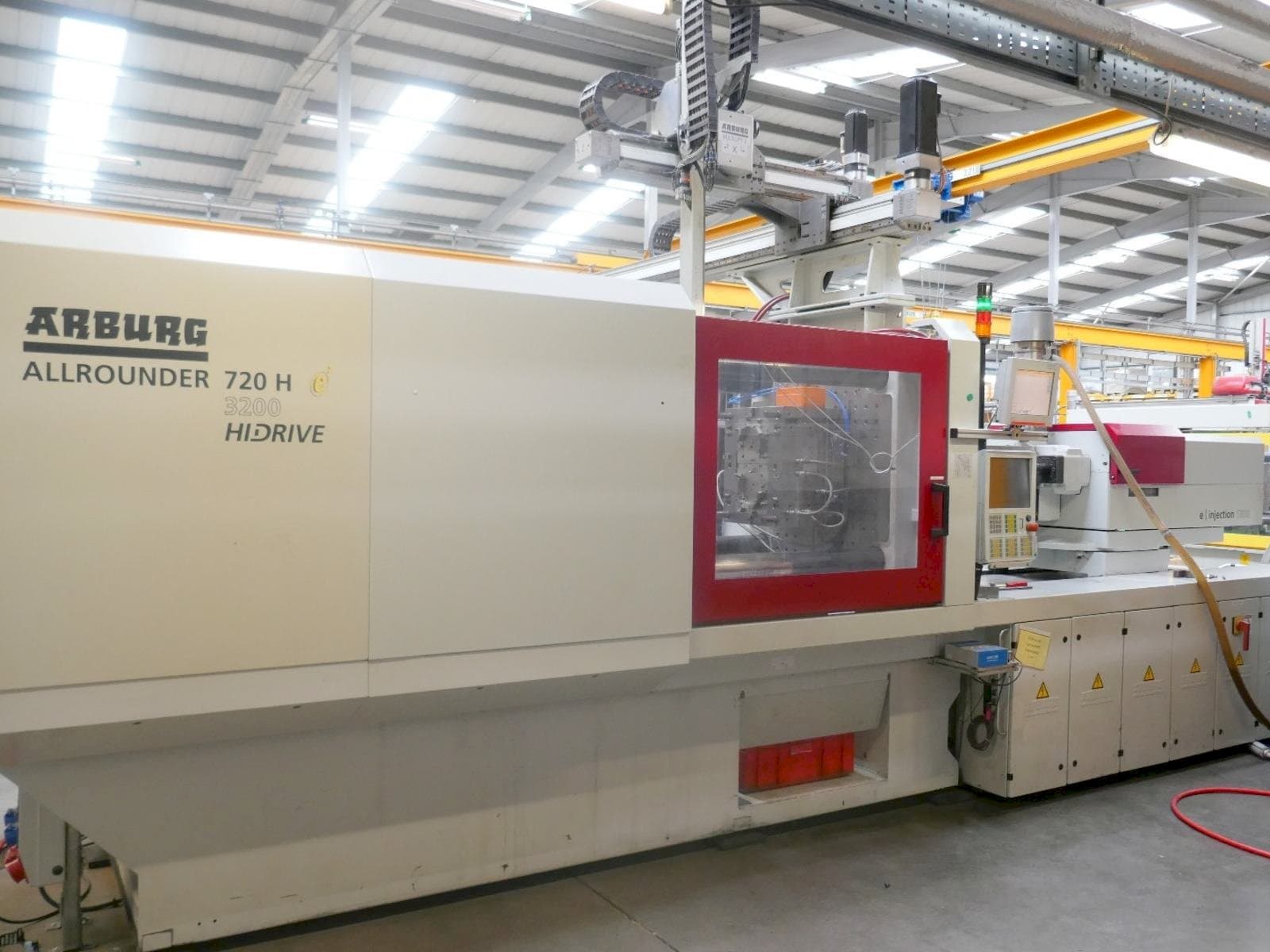

Front view of Arburg Allrounder 720H 3200 1300 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 720H 3200 1300

Photo Gallery

Arburg - Allrounder 720H 3200 1300GB-INJ-ARB-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg Allrounder 720H 3200 1300 injection moulding machine

Show in original language

This Arburg Allrounder 720H 3200 1300 injection moulding machine was made in the year 2014. It is equipped with a Kistler monitoring system. The machine has a clamping force of 3200 kN and a screw diameter of 60 mm.

Overview

brand: Arburg
year: 2014
MODEL: Allrounder 720H 3200 1300
application type: Injection Moulding
Location: United Kingdom
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Allrounder 720H 3200 1300

Injection Unit

Screw diameter: 60 mm
Shot weight: 620 g ps
Stroke volume: 678 CM³
Injection pressure: 2000 bar
Screw speed: 60 m/min

Clamping unit

Clamping force: 3200 kn
Opening stroke: 60 mm
Max open daylight: 900 - 1400 mm
Distance between bars: 720 x 720 mm
Mould height min: 300 mm
Mould height max: 800 mm
Size of mold platens: 1040 x 1040 mm
Ejector stroke: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Arburg robot
- - Labotek dryer (year 2021)
- - Water temp controllers
- - Outfeed conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
