➤ Used AWEA AF 1460 For Sale | gindumac.com

Show in original language

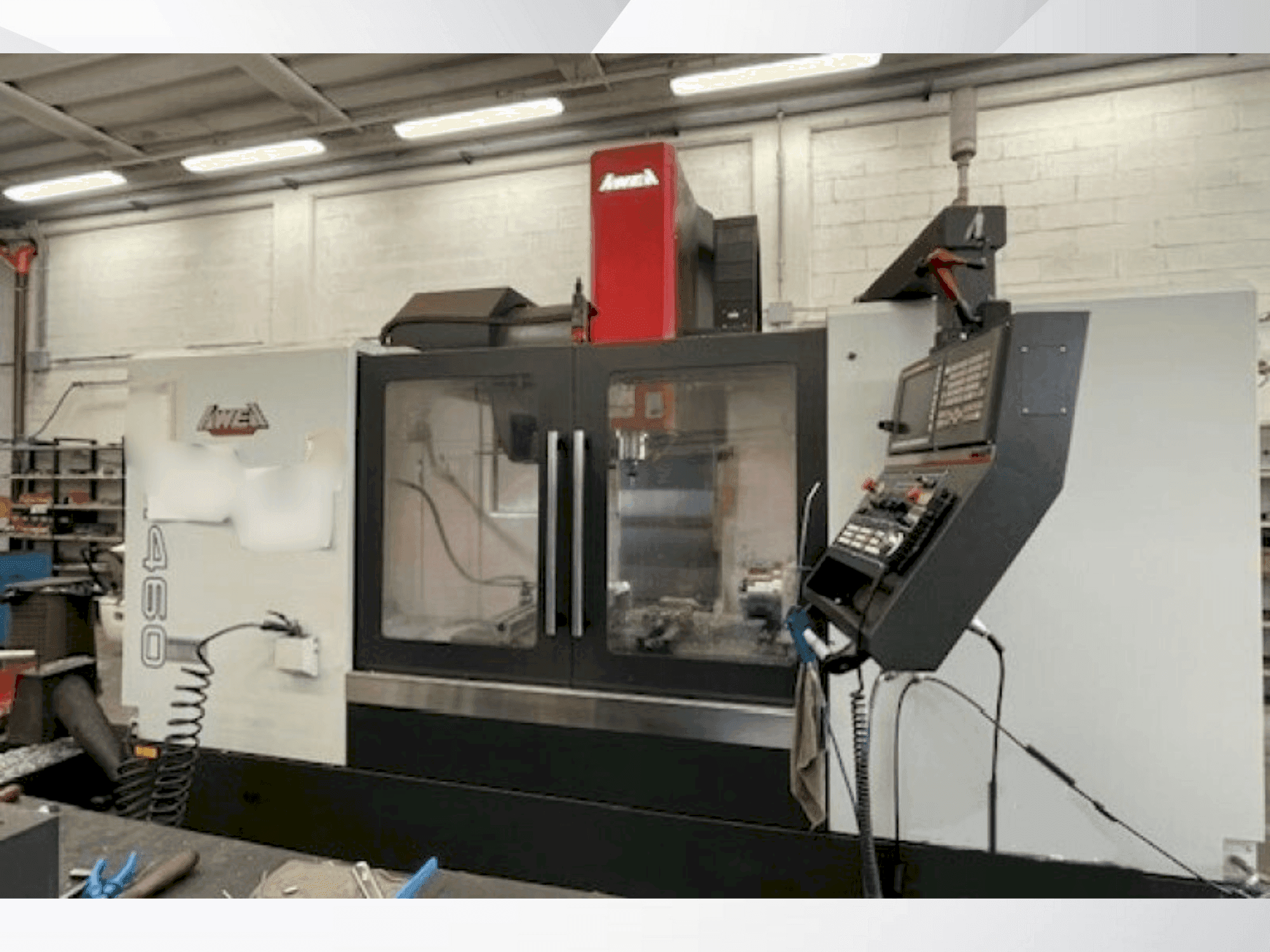

This 4-axis AWEA AF 1460 vertical machining center was manufactured in 2018. It features a FANUC 0i-MF control unit, rapid feeds up to 48 m/min, and a tool magazine with 30 positions. The machine includes a 4th axis rotary table, chip conveyor, and coolant through the spindle at 15 bar. Ideal for complex machining tasks, the AWEA AF 1460 machine we have for sale is robust and versatile. Contact us for further details regarding this vertical machining center.

Overview

brand: AWEA
year: 2018
MODEL: AF 1460
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - AWEA AF 1460

General Data

Machine weight: 8200 KG

Control Unit

Model: 0i-MF (Opt. Manual Guide type I)
Brand: FANUC

Movement

X-AXIS Movement: 1400 mm
X-AXIS Rapid traverse: 48 m/min
Y-AXIS Movement: 620 mm
Y-AXIS Rapid traverse: 48 m/min
Z-AXIS Movement: 620 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 1500 mm
Outer width: 620 mm
Min distance between vertical spindle and table: 100 mm
Max distance between vertical spindle and table: 720 mm
Table load: 1000 kg

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 75 mm
Max tool length: 150 mm

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cooling pressure: 15 bar
- - Distance spindle - column: 730 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
