AXA VSC 1-5000M/E

Show in original language

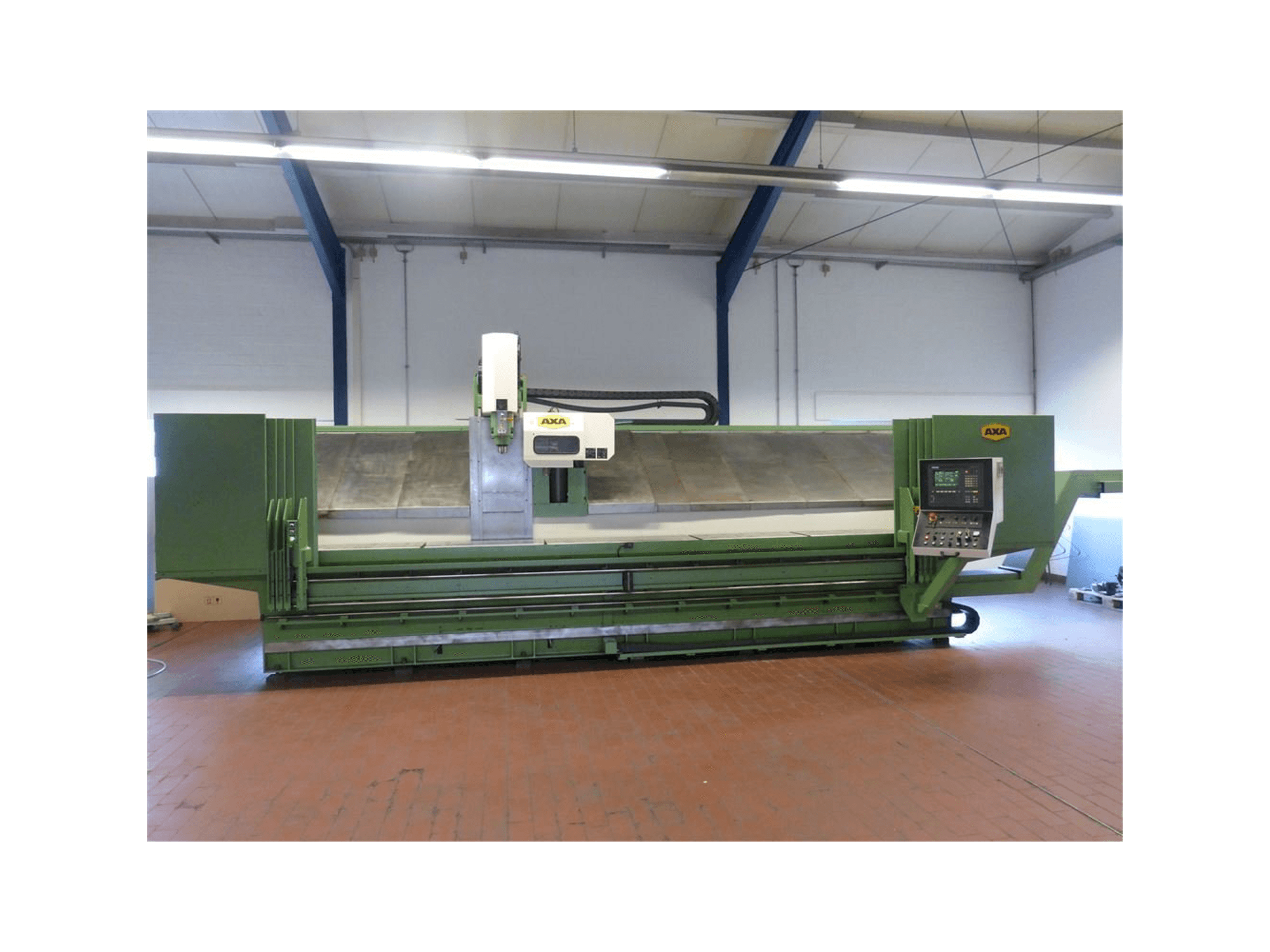

This AXA VSC 1-5000M/E Vertical Machining Center was manufactured in 1998 and overhauled in 2020. It is equipped with a SIEMENS 810 M/GA3 control unit. This 3 axis machine has a spindle speed range 40 - 6000 rpm and a table dimension of 5470 mm x 500 mm. It got a renewal of the emulsion hoses for external cooling and a replacement of the workspace discs and the rubber surrounds between other benefits in its last inspection.

Overview

brand: AXA
year: 1998
MODEL: VSC 1-5000M/E
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - AXA VSC 1-5000M/E

Control Unit

Model: 810 M/GA3
Brand: SIEMENS

Main drive

Spindle speed range: 40 - 6000 1/MIN
Tool taper: SK 40
Number of axis: 3

Movement

X-AXIS Movement: 5000 mm
Y-AXIS Movement: 420 mm
Z-AXIS Movement: 480 mm

Table

Outer length: 5470 mm
Outer width: 500 mm
Min distance between vertical spindle and table: 170 mm
Max distance between vertical spindle and table: 650 mm

Tools

Number of stations: 30
Type of tool holder: SK 40 DIN69871A / 69872A

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Cleaning of the machine
Partial painting of the machine parts
Renewal of the emulsion hoses for external cooling
Replacement of the workspace discs and the rubber surrounds
Surface grinding of the machine tables and readjustment according to the alignment groove
General overhaul of the slide linings of the cross slide of the x-axis
New bearing of the main spindle in the axa factory
Replacement of other defective mechanical parts with original or identical parts
Checking of the electrical cables for damage and cable breakage and
New measuring system cables in the x-axis and to the main spindle

Technical Machine Benefits

New bearing of the main spindle
Pendulum stroke: 2 x 2300 mm
In pendulum operation with pendulum stroke in the x-axis, protection is provided by a safety circuit for side detection
Siemens three-phase motor with spindle blow-out device during tool change
Chain magazine moving in the x-axis
Measuring system in x/y/z: direct linear; heidenhain glass scales in x, y, z axes protected in aluminium housing
X / y basic slide, z column and slide as well as the are made of high-quality machine cast iron
Hinged belt chip conveyor - discharge right - 300mm feed width, discharge height approx. 1250 mm
Checking of the emergency stop and safety door safety functions (if necessary, the delivery state is (if necessary, the delivery condition is restored)
Replacement of defective switches

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
