➤ Used Battenfeld BA 3500/1900 BK | Injection Moulding

Show in original language

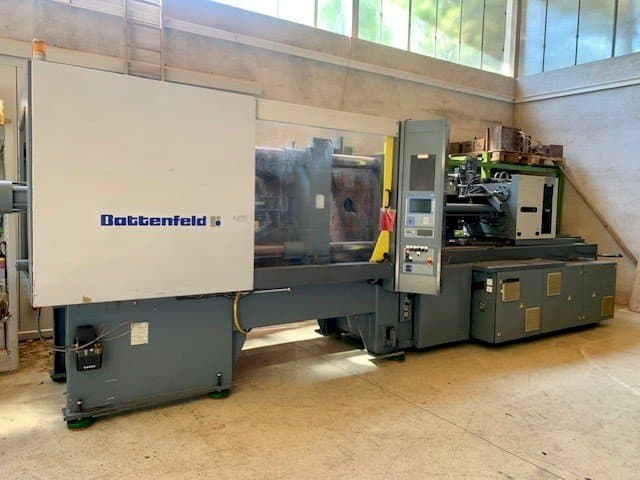

This Battenfeld BA 3500/1900 BK injection moulding machine was built in the year 2000. It is equipped with a Unilog 4000 control unit. The machine has a clamping force of 3500 kN. See video gallery for more impressions.

Overview

brand: Battenfeld
year: 2000
MODEL: BA 3500/1900 BK
production hours: 60000
application type: Injection Moulding
Location: Hungary
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld BA 3500/1900 BK

Injection Unit

Screw diameter: 65 mm
Shot weight: 930g (PS)
Stroke volume: 1078 CM³
Injection pressure: 1777 bar

Clamping unit

Clamping force: 3500 kn
Opening stroke: 1078
Distance between bars: 710 x 710 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max injection moulding material weight (polystyrene) g 981
- - Max injection moulding material weight (polyethylene) g 766
- - L/d rate of the screw 22
- - Screw torque (standard) nm 2950
- - Screw torque (stronger) nm 3580
- - Max speed of the screw (standard) min-1 240
- - Max speed of the screw (stronger) min-1 220
- - Plasticising power (standard) g/s 62
- - Plasticising power (stronger) g/s 56
- - Material flow (in free space) ccm/s 356
Qualitative Machine Benefits:
- - Screw travel mm 325
- - Nozzle holding force kn 140
- - Nozzle travel mm 500
- - Cylinder heating performance kw 26,6
- - Number of regulator places 1+5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
