Battenfeld - TM 3500/1330+210SPL-INJ-BAT-2004-00003
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Plastics Processing Machinery
- Battenfeld TM 3500/1330+210S Injection moulding machine.
Show in original language

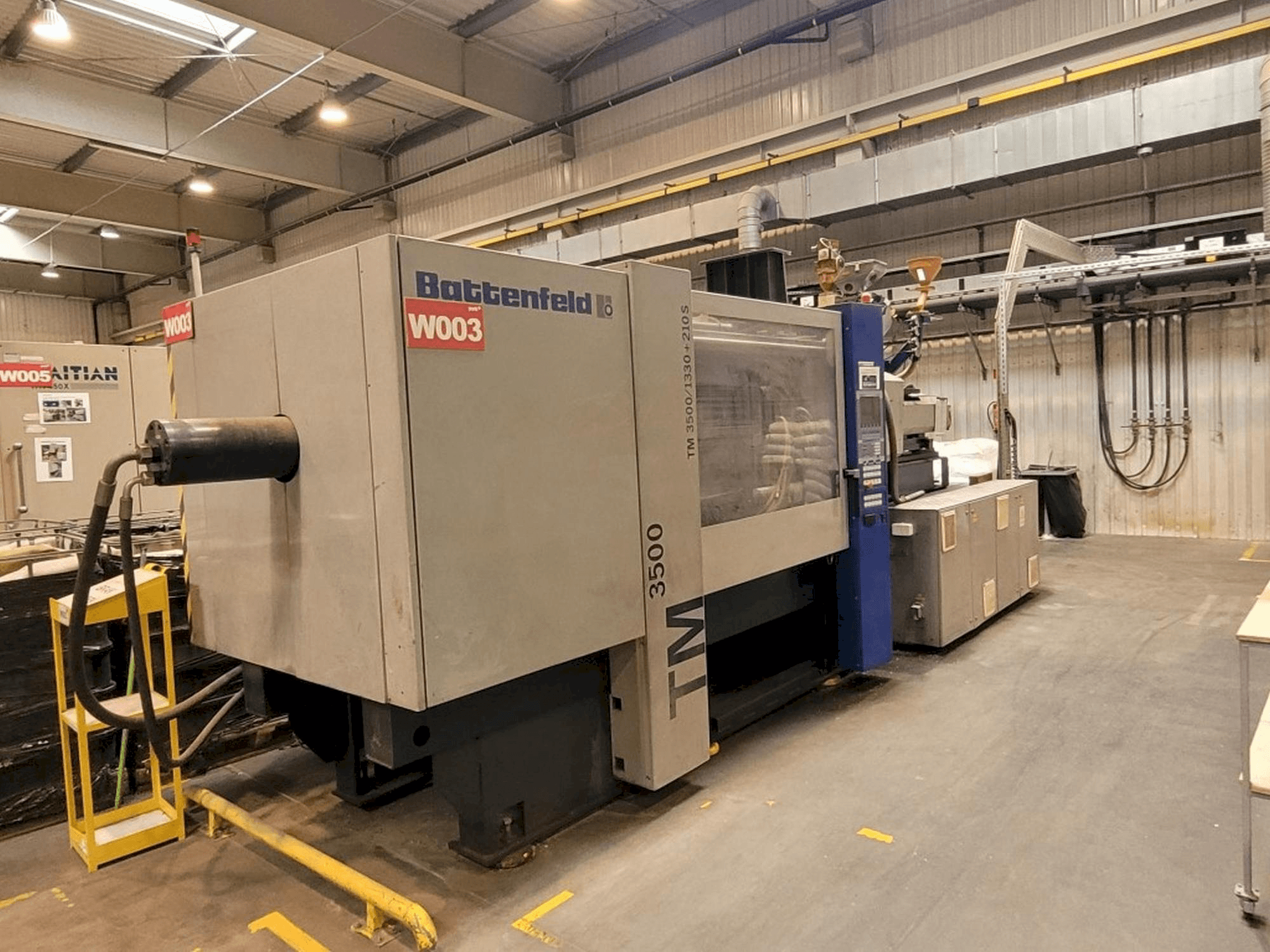

This Battenfeld TM 3500/1330+210S Injection moulding machine was manufactured in the year 2004 and has 73924 working hours. It is equipped with a Battenfeld UNILOG B4 control unit. The machine has a clamping force of 3500 kN and it is equipped with 2 core hydraulics.
Overview
- brand: Battenfeld
- year: 2004
- MODEL: TM 3500/1330+210S
- production hours: 73924
- application type: Injection Moulding
- Location: Poland
- machine type: Hydraulic Injection Moulding Machine
- control unit brand: BATTENFELD
Technical Information - Battenfeld TM 3500/1330+210S
Control Unit
- Control Brand: BATTENFELD
- Control Model: UNILOG B4
Technical Specification
- Clamping Force: 3500 kN
Additional Information
Additional equipment
- it is equipped with 2 core hydraulics
Machine Benefits
Qualitative Machine Benefits
- Ps injection weight - unit a 480 g
- Injection size ps - unit b 67 g, injection size pp - unit a 393. 6 g. Injection size pp - unit b 55 g
- Oil tank capacity 800 l
- Oil type mobil dte excel 46
- Central lubrication orlen velol rc 220
- Oil of the aggregate access system none
- Pump motor power 75 kw
- Cylinder heating power 25 kw
Technical Machine Benefits
- Clearance between columns - horizontal 710 mm , clearance between columns - vertical 710 mm
- Width of table 1010 mm
- Table height 1080 mm
- Diameter of centering ring - closing 160 mm. Diameter of centering ring - nozzle a 160 mm. Diameter of centering ring - nozzle b 140 mm
- Mould height - min 300 mm. Mould height - max 710 mm
- Max. Opening distance 670 mm, max. Distance between plates 1380 mm
- Ejector stroke 200
- Auger diameter a 55 mm, auger diameter b 25 mm
- Injection pressure 2041 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
