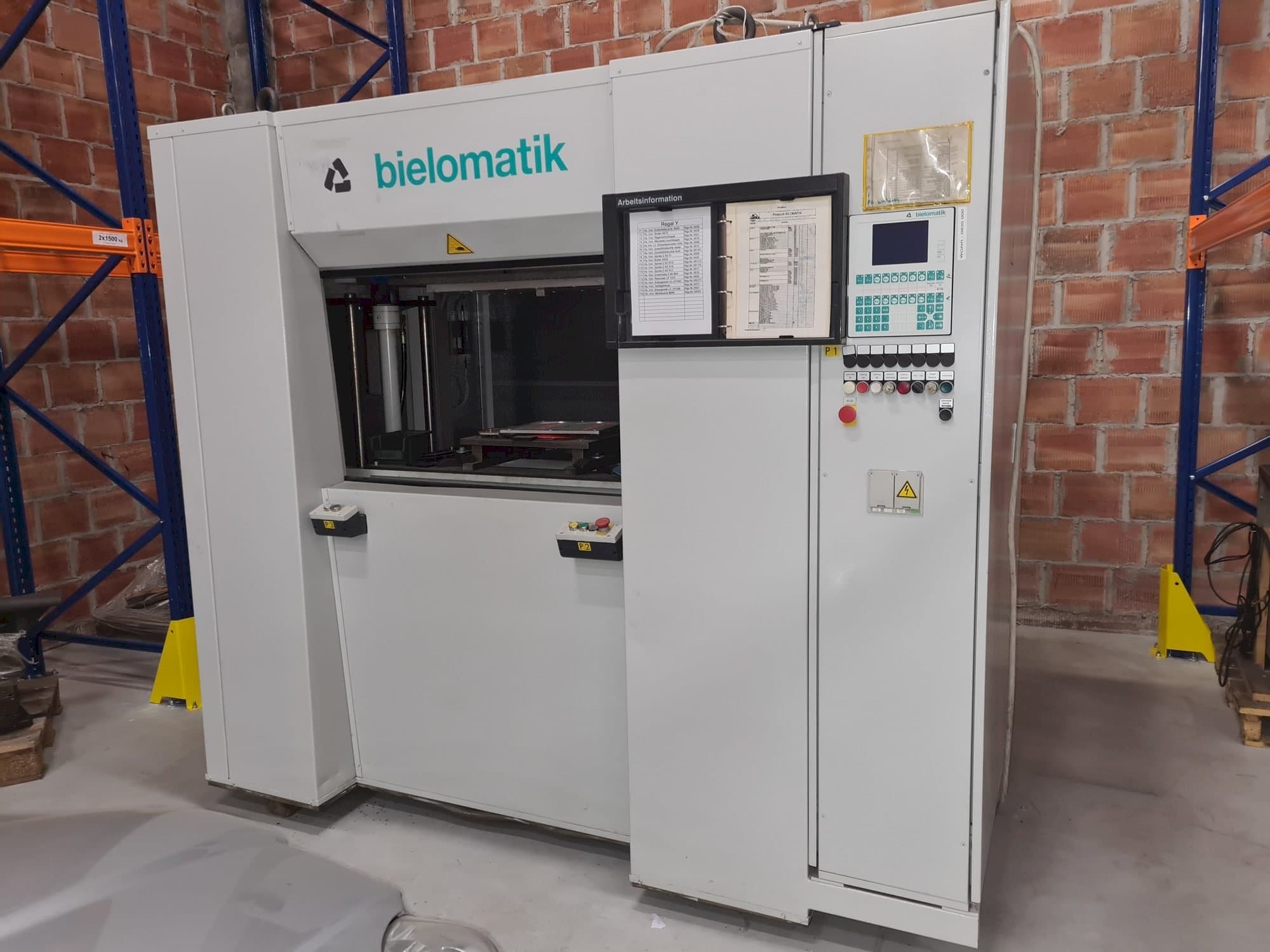

bielomatik K3215

Photo Gallery

bielomatik - K3215PL-OTH-BIE-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

This bielomatik K3215 Vibration Welding Machine was built in the year 1999 in Germany. It has a record of 48660 working hours. This machine is equipped with a SIEMENS TP 1200 control unit. It has a driving performance 2 x 16.5 kN and a pressure, welding and joining force 25 kN. This machine is in very good working conditions and ready for tests. It includes several accesories as a depth measuring device Siko.

Overview

brand: bielomatik
year: 1999
MODEL: K3215
production hours: 48660
application type: Other Sheet Metal Machinery
Location: Poland
machine type: Sheet Metal Machine
control unit brand: SIEMENS

Technical Information - bielomatik K3215

General Data

Measurements width: 2480 mm
Measurements depth: 1860 mm
Measurements height: 2320 mm
Machine weight: 1700 kg

Control Unit

Model: TP 1200
Brand: SIEMENS

Table

Outer length: 1200 mm
Outer width: 500 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 20 kVA

Additional Information

Additional equipment

pneumatics Festo
hydraulics Parker
hydraulic cylinders Hydropeneu
amplitude measuring device Micro-Epsilon
depth measuring device Siko

Machine Benefits

Qualitative Machine Benefits

The machine is in very good working condition
Ready for tests
It is not working at production now

Technical Machine Benefits

Max upper tool weight 90 kg
Base plate size upper side 1000 x 500 mm
Base plate size lower side approx. 1000 x 500 mm
Door clearance 1100 x 730 mm
Max opening lower to upper table 595 mm - variable stroke of machine table approx. 500 mm max
Electro-magnetic vibration drive with fully variable frequency
Variable frequency 170-240 hz
Max driving performance approx. 2 x 16. 5 kn - pressure, welding and joining force: max 25 kn
Amplitude range: variable 0. 3 – 1. 5 mm (closed loop control)
Machine plc siemens s7 - main electrical components siemens

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
