Biglia - B658 YSIT-TUR-BIG-2010-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

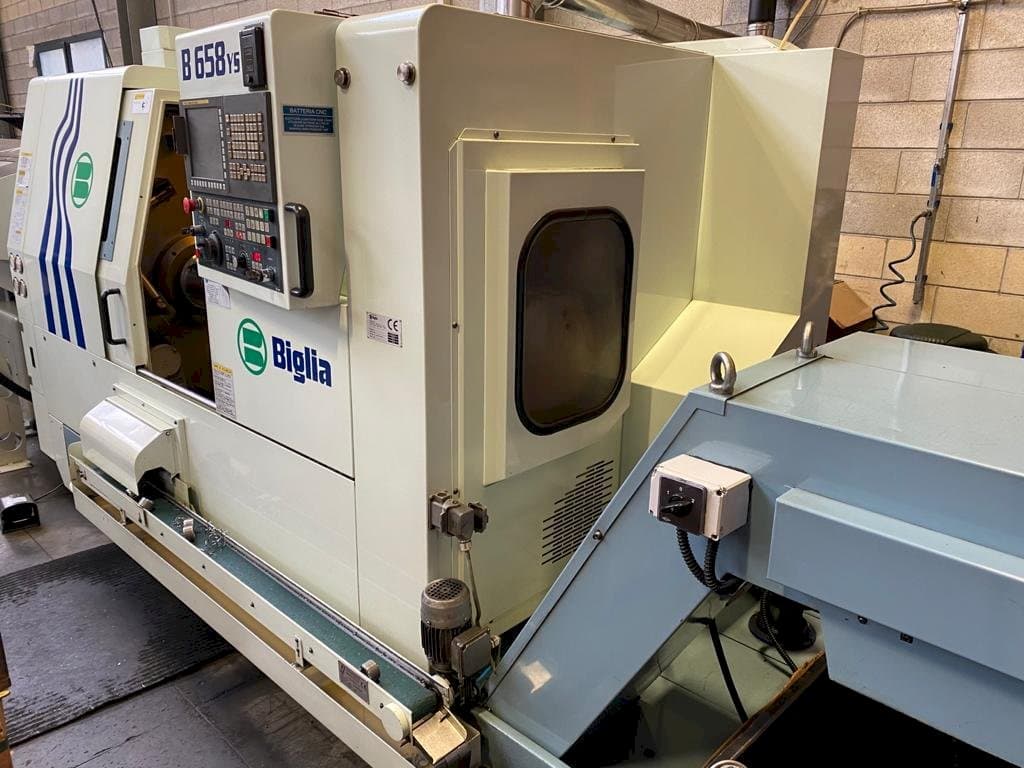

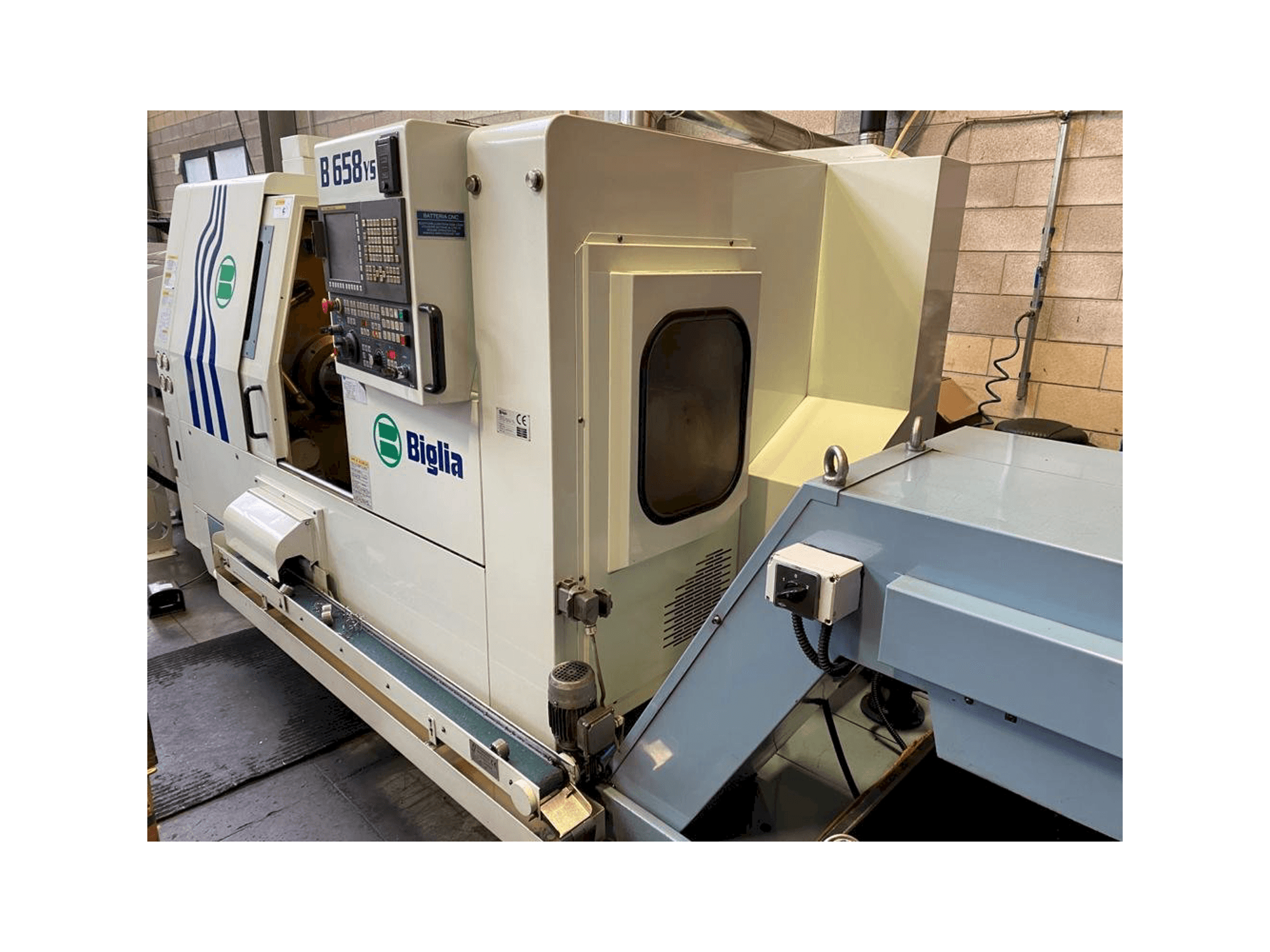

- BIGLIA B658 YS lathe machine
This BIGLIA B658 YS lathe machine was manufactured in 2010. It has a total of 3202 production hours. The machine is operated through a FANUC 31I-T control unit. The machine has a spindle speed up to 3500 rpm. It includes a tool setter, a kit full for bar feeder, an Axial rotary tools, and more additional equipment.
Overview
- brand: Biglia
- year: 2010
- MODEL: B658 YS
- production hours: 3202
- application type: Turning
- Location: Italy
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - Biglia B658 YS
Control Unit
- Control Brand: FANUC
- Control Model: 31I-T
Dimensions
- Machine Depth: 2000 mm
- Machine Height: 2100 mm
- Machine Weight: 6500 kg
Movement
- X-axis Travel: 255 mm
- Y-axis Travel: 110 mm
- Z-axis Travel: 670 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 3500 RPM
Additional Information
Additional equipment
- Chuck diameter 315 mm for main spindle
- Chuck diameter 210 mm for sub spindle
- Software for monitoring power axis
- KIT full for bar feeder
- Manual Guide fo reasy programming
- Tool setter
- Axial rotary tools
- Radial rotary tools
Machine Benefits
Technical Machine Benefits
- Max bar diameter: 80 mm
- Max turning diameter: 410 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
