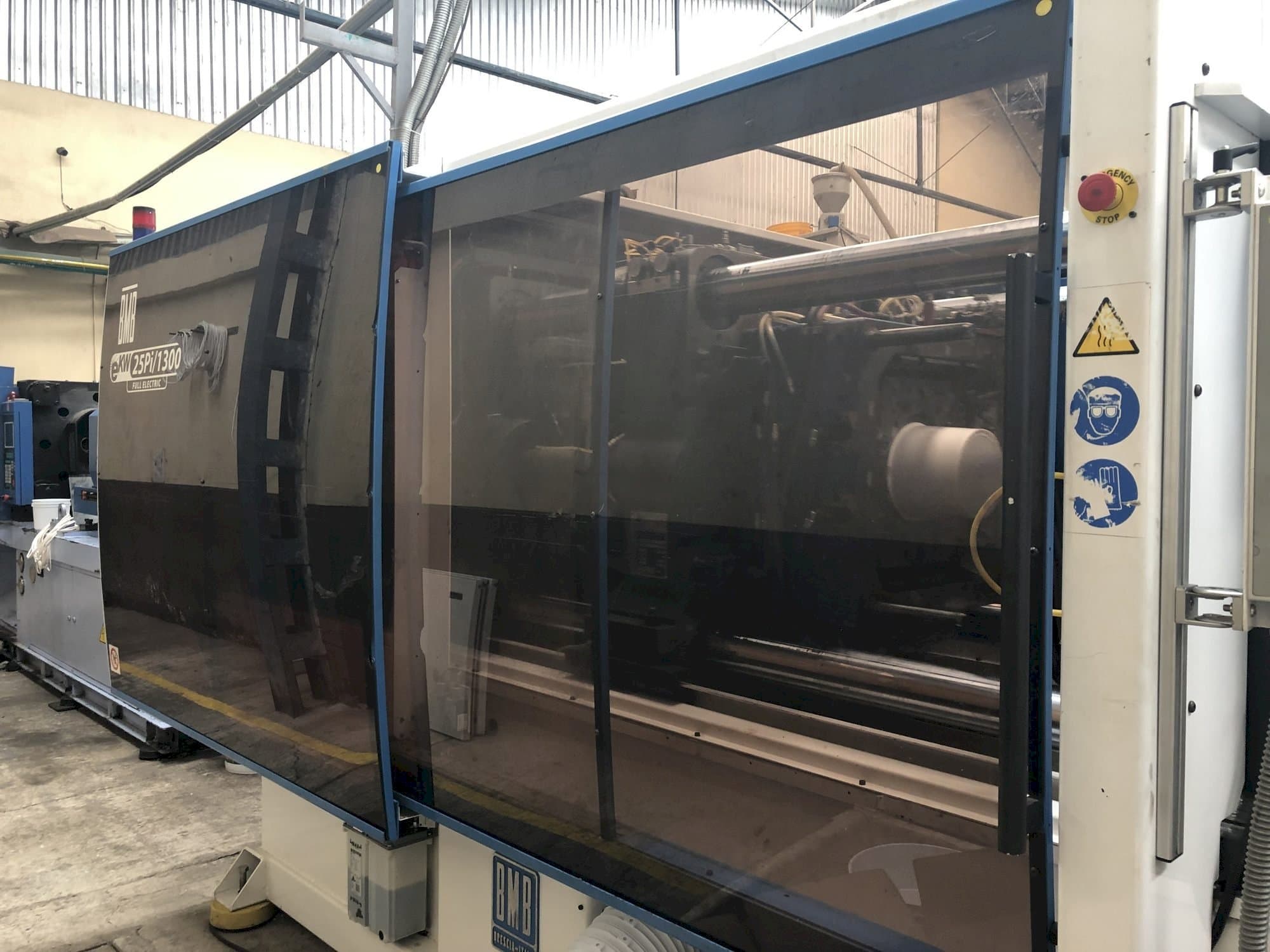

BMB eKW 25 Pi/1300 Injection Moulding Machine

Show in original language

This BMB eKW 25 Pi/1300 Injection Moulding Machine was built in Italy in 2015. Equipped with a HEIDENHAIN SP 6000 Control unit and an Euromap 67 robot interface, this reliable machine has mainly been producing plastic buckets for mass production. This machine offers an excellent performance, especially in terms of acceleration and deceleration of the main mould opening and closing movements with the resultant lower cycle times.

Overview

brand: BMB
year: 2015
MODEL: eKW 25 Pi/1300
application type: Injection Moulding
Location: Mexico
machine type: Electrical Injection Moulding Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - BMB eKW 25 Pi/1300

General Data

Measurements depth: 1920 mm
Measurements height: 2065 mm
Machine weight: 13500 kg

Control Unit

Model: SP 6000
Brand: HEIDENHAIN

Injection Unit

Screw diameter: 60 mm
Shot weight: 698 g/PS
Stroke volume: 735 cm³
Injection pressure: 1400 kg/cm³ BAR
Plasticizing rate max.: 67 g/PS
Screw speed: 450 rpm
Heating capacity: 24 kW
Adjustable heating zones: 4+1

Clamping unit

Clamping force: 2500 kN
Opening stroke: 650 mm
Max open daylight: 1300 mm
Distance between bars: 630 x 630 mm
Mould height min: 200 mm
Mould height max: 650 mm
Size of mold platens: 910 x 910 mm
Ejector stroke: 200 mm
Ejector force for / back: 60 kN

Media

Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
