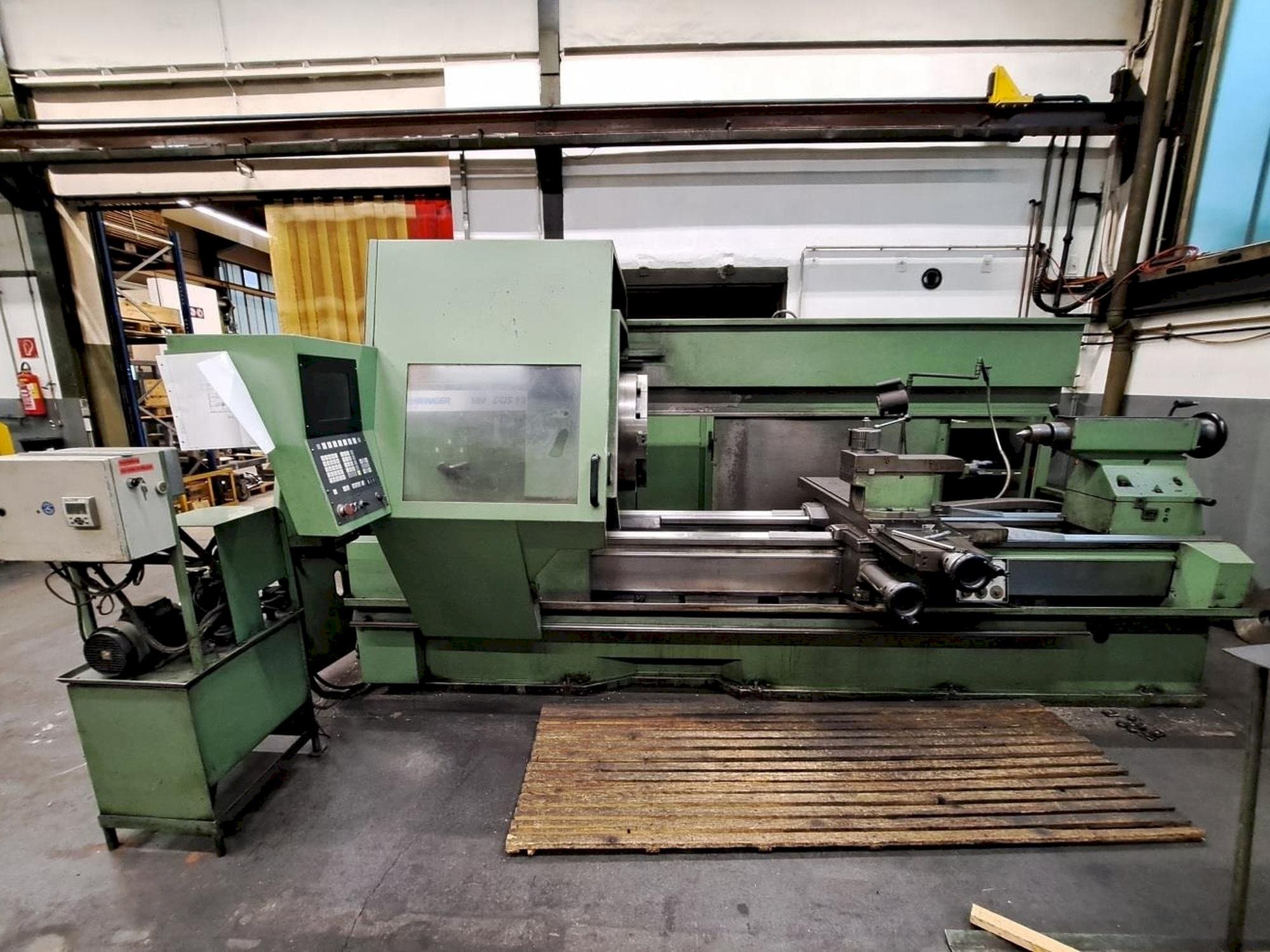

Front view of BOEHRINGER VDF DUS 1000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

BOEHRINGER VDF DUS 1000

Photo Gallery

BOEHRINGER - VDF DUS 1000PL-TUR-BOE-1993-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
BOEHRINGER VDF DUS 1000 lathe

Show in original language

This BOEHRINGER VDF DUS 1000 lathe was made in the year 1993. It is equipped with a Siemens SINUMERIK control unit. The machine has a turning diameter over bed of 1000 mm and a turning diameter over cross slide of 710 mm.

Overview

brand: BOEHRINGER
year: 1993
MODEL: VDF DUS 1000
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - BOEHRINGER VDF DUS 1000

General Data

Measurements width: 5800 mm
Measurements depth: 2050 mm
Measurements height: 2250 mm
Machine weight: 10000 kg

Control Unit

Model: SINUMERIK
Brand: SIEMENS

Media

Main electronic connection: 400 V / 50Hz
Power consumption: 60 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter over bed: 1000 mm
- - Turning diameter over cross slide: 710 mm
- - Length between centers: 3300 mm
- - Spindle taper: kk 11 din 55027
- - Spindle bore: 128 mm
- - Bed width: 560 mm
- - Turning speed range: 6. 3 - 1600 u/min
- - Feed rate: 0. 01 - 50 mm/u
- - Feed rate - longitudinal / frontal : 20 / 12. 5 m/min
- - 3-jaw chuck diameter: 500 mm
Qualitative Machine Benefits:
- - Quick-change tool holder: multifix type d
- - Drive power - spindle motor: 46 kw
- - Drive power, 60 % ed 46 kw
- - Torque, 60 % ed max nm 5300
- - Taper: taper in sleeve: mk 6
- - Tailstock: diameter: 125 mm
- - Tailstock: pen stroke: 280 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
