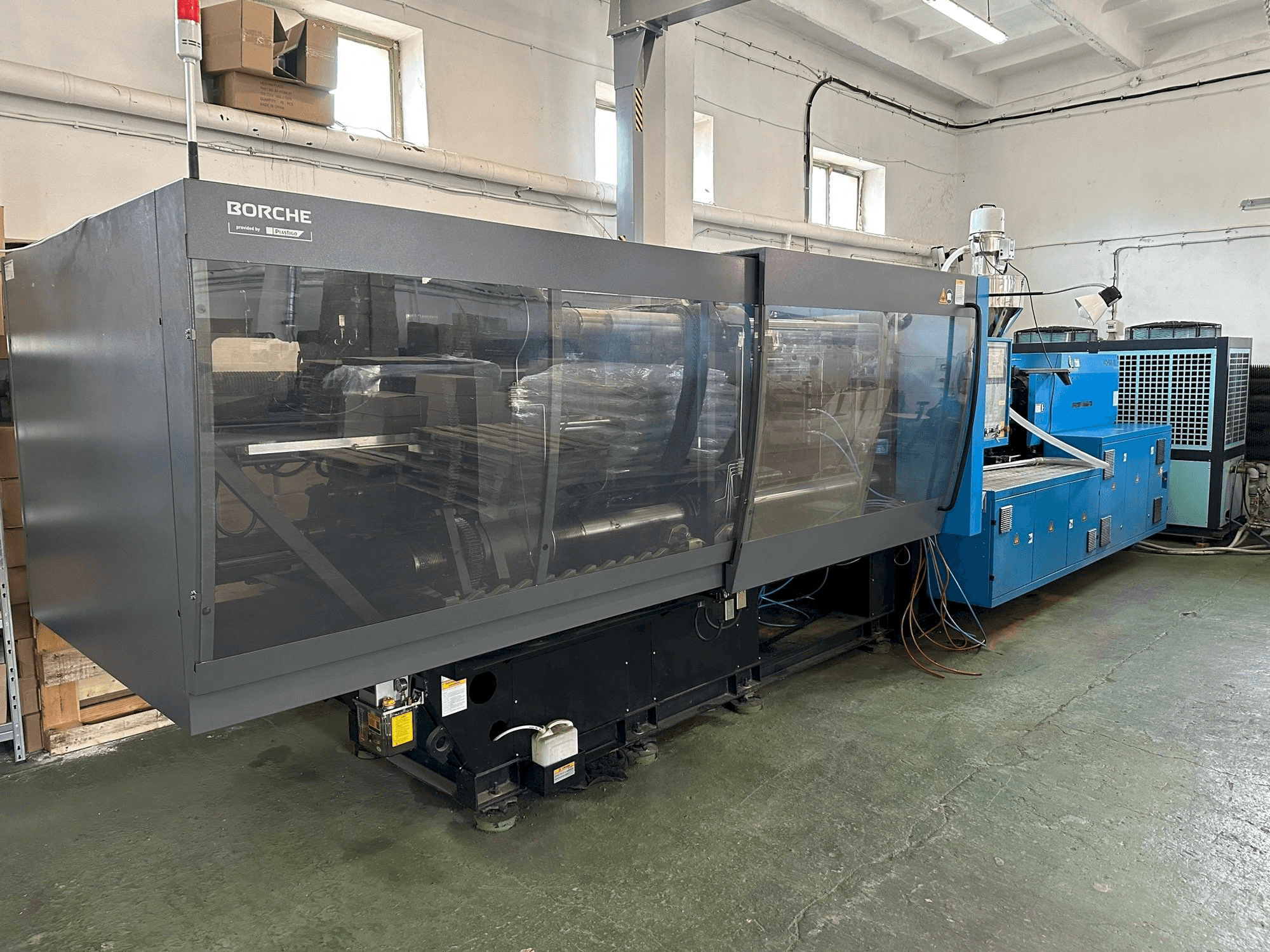

Front view of BORCHÊ BS400 Economic machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

BORCHÊ BS400 Economic

Photo Gallery

BORCHÊ - BS400 EconomicPL-INJ-BOR-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
BORCHE BS400 Economic Injection moulding machine

Show in original language

This BORCHE BS400 Economic Injection moulding machine was manufactured in the year 2017 in China and has 2453 production hours. It is equipped with a KEBA BORCHE control unit. The machine has a clamping force of 4000 kN and a screw diameter of 80 mm.

Overview

brand: BORCHÊ
year: 2017
MODEL: BS400 Economic
production hours: 2453
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine

Technical Information - BORCHÊ BS400 Economic

General Data

Measurements width: 8400 mm
Measurements depth: 2180 mm
Measurements height: 2240 mm
Machine weight: 15500 kg

Control Unit

Model: BORCHE

Injection Unit

Screw diameter: 80 mm
Stroke volume: 2010 CM³
Injection pressure: 162 MPa BAR

Clamping unit

Clamping force: 4000 kN
Opening stroke: 655 mm
Max open daylight: 1375 mm
Distance between bars: 730 x 1030 mm
Mould height min: 245 mm
Mould height max: 720 mm
Size of mold platens: 1060 x 1030 mm
Ejector stroke: 205 mm
Ejector force for / back: 111.3 kN

Media

Main electronic connection: 380V / 50 Hz
Power consumption: 74.3 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of heating zones: 6
- - Motor power: 45 kw
- - Hydraulics pressure: 17. 5 mpa
- - Number of ejector pins: 8 + 4 + 1
Qualitative Machine Benefits:
- - Machine connected ready for tests. Full documentation available. Very good condition.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
