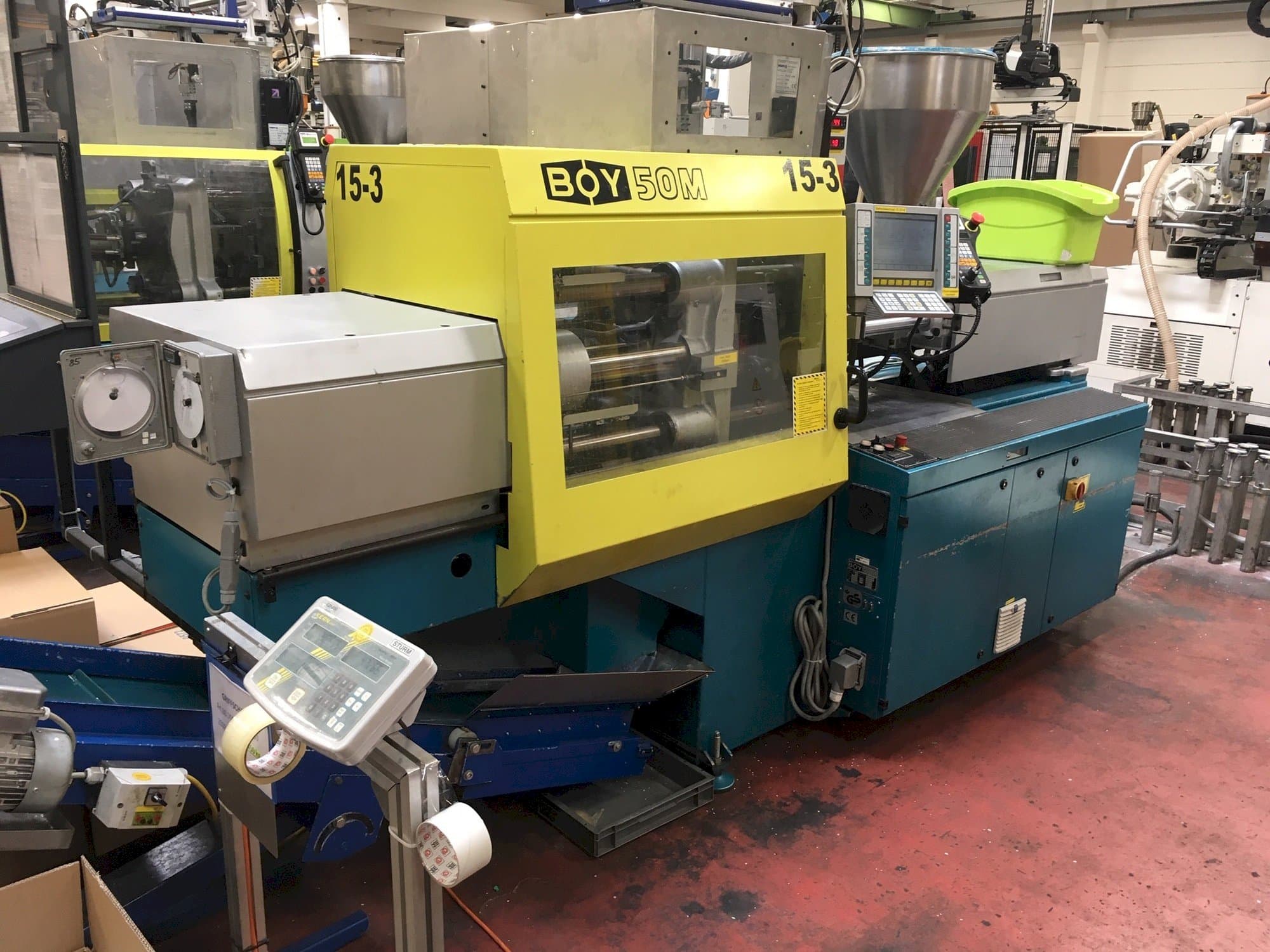

BOY 50M Injection Moulding Machine

Show in original language

This BOY 50M Injection Moulding Machine was built in the year 2001 in Germany and has been operative for 79215 hours. Operated with a Procan Control unit, this machine works with a clamping force of 500 kN.

Overview

brand: BOY
year: 2001
MODEL: 50M
production hours: 79215
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - BOY 50M

General Data

Measurements width: 3395 mm
Measurements depth: 1000 mm
Measurements height: 1995 mm
Machine weight: 2270 kg

Controller

Brand: Procan

Injection Unit

Screw diameter: 28 mm
Injection pressure: 2470 bar

Clamping unit

Clamping force: 500 kN
Opening stroke: 600 mm
Distance between bars: 335x305 mm
Mould height min: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 1 pc core pull
Qualitative Machine Benefits:
- - Euromap 12 interface

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
