➤ Used Brother Speedio W1000Xd1 For Sale | gindumac.com

Show in original language

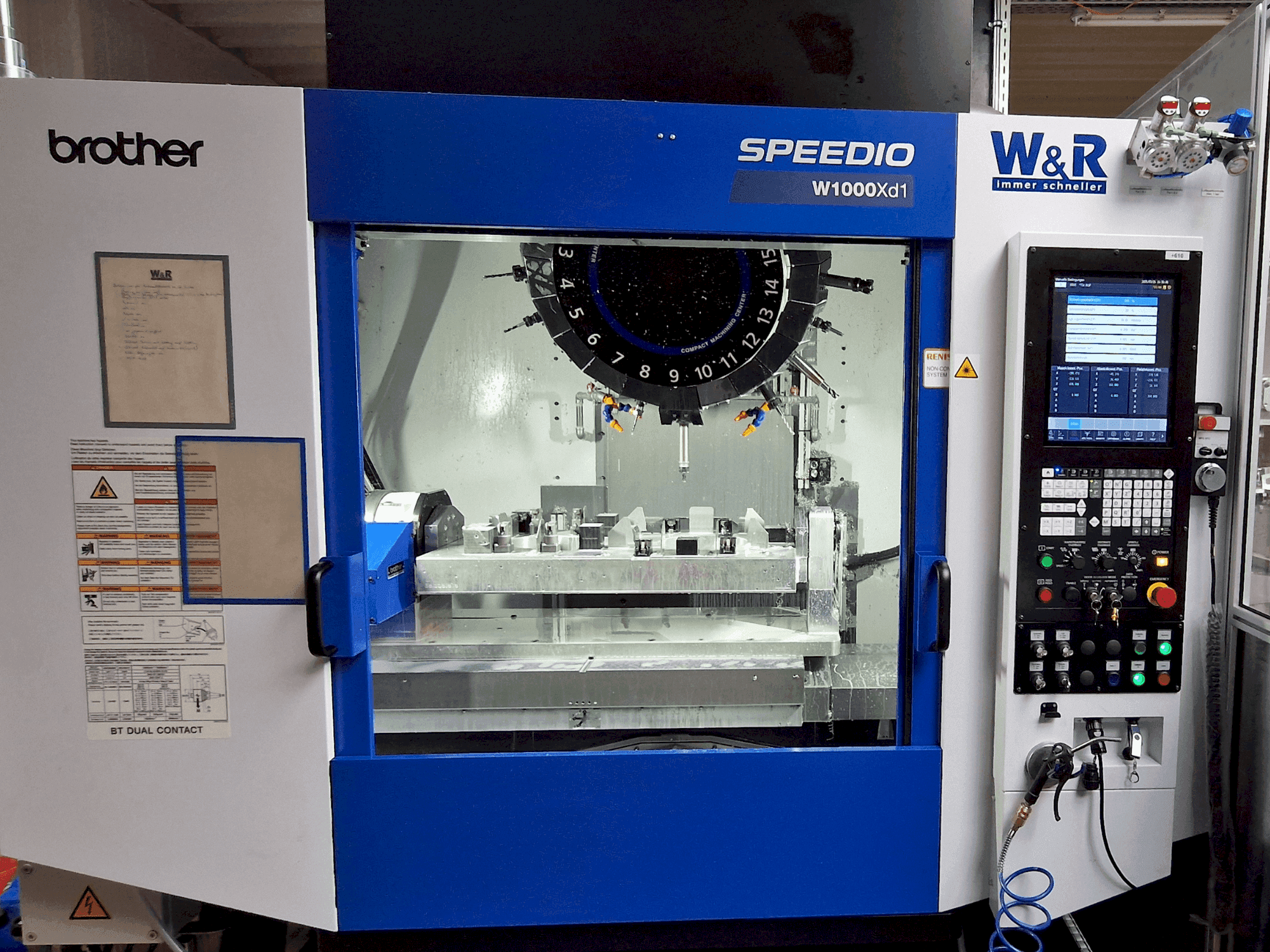

This 4-axis Brother Speedio W1000Xd1 was manufactured in 2023. It features a travel range of X-axis: 1000 mm, Y-axis: 500 mm, Z-axis: 480 mm, and a tool magazine with 21 tools. The spindle operates at speeds up to 16,000 rpm. It supports materials like aluminum and steel, and includes a high-pressure coolant system and chip disposal. Consider the opportunity to buy this Brother Speedio W1000Xd1 vertical machining centre. Contact us for more information about this machine.

Overview

brand: Brother
year: 2023
MODEL: Speedio W1000Xd1
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - Brother Speedio W1000Xd1

Main drive

Spindle speed range: 16000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 480 mm

Additional Equipment

- Coolant: Through-spindle, 15 bar, Coolant tank 150 L
- Lubrication: Automatic grease lubrication (X/Y/Z)
- Hydraulic Workpiece Clamping: Pressure: 80–210 bar (mechanically adjustable)
- Pump: 210 bar, 100% ED duty
- Tank: 27 L
- Emulsion Mist Extraction Unit: Suction Capacity: 700 m³/h
- Stages: 5-stage filter with V2A pre-filter
- Includes: PVC hose (2m, Ø200 mm), Flange connection Ø200 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Integrated chip disposal system: "twin" system with hinged and scraper belt conveyors
- - Automatic side doors: pneumatically driven, opens upwards (for auto-loading)
- - High-pressure tool cone cleaning
- - Tool breakage monitoring: tool Ø > 1. 6 mm; thread former > m2. 0
- - Part support control: based on differential pressure (includes sensors and control unit)
- - Mounting cone: bbt 30
- - Materials supported: aluminum, die-cast aluminum, brass, steel
- - Tool magazine: 21 tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
