Brother TC-22A vertical machine center

Show in original language

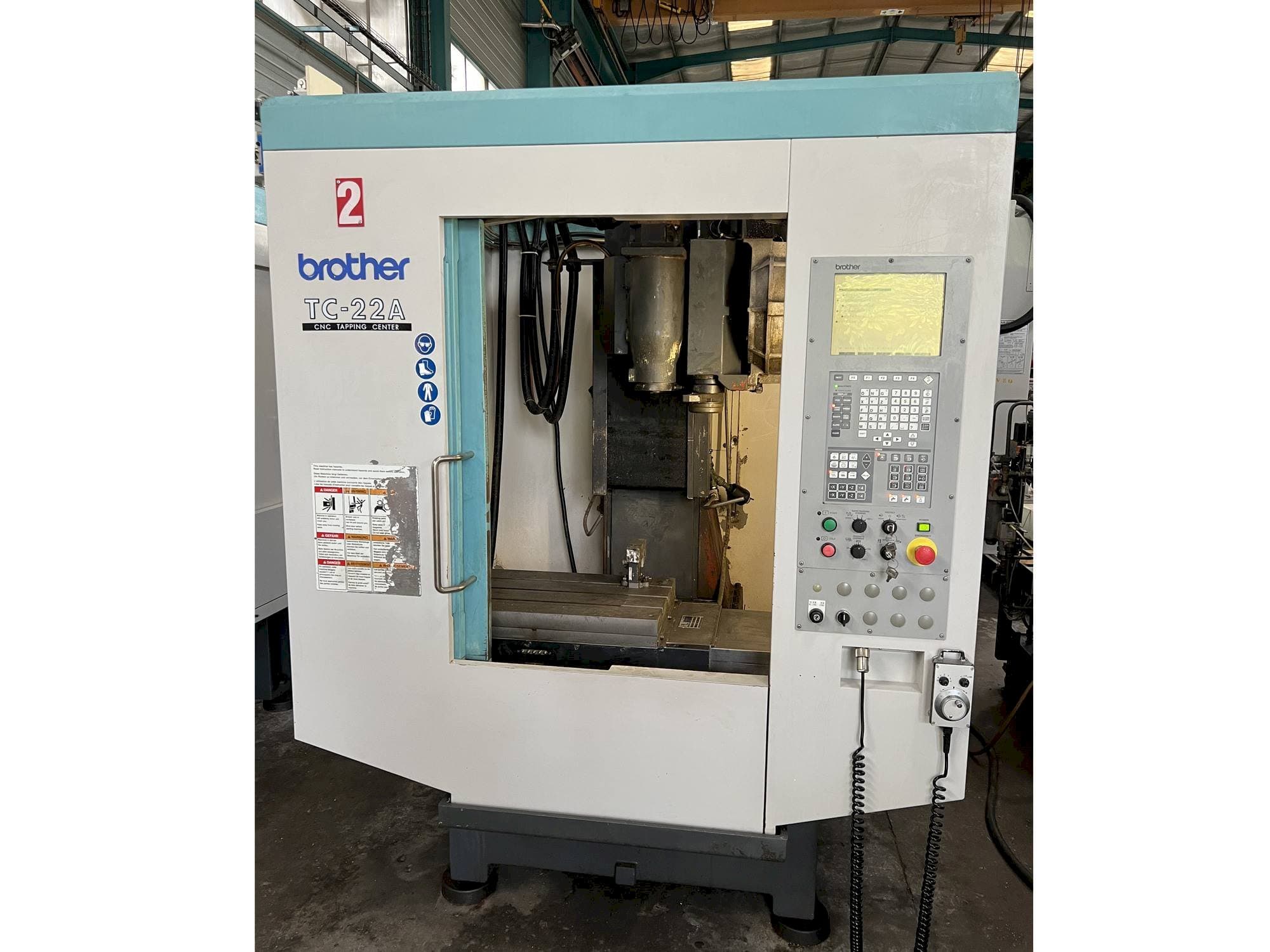

This Brother TC-22A vertical machine center was built in the year 1999 in Japan. It is equipped with a BROTHER A00 control unit. The machine has a spindle speed of 100 - 12000 rpm.

Overview

brand: Brother
year: 1999
MODEL: TC-22A
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother TC-22A

General Data

Measurements width: 1640 mm
Measurements depth: 2100 mm
Measurements height: 2274 mm
Machine weight: 2250 kg

Control Unit

Model: A00
Brand: BROTHER

Main drive

Spindle speed range: 100 - 12.000 1/MIN
Tool taper: BT30

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 650 mm
Outer width: 400 mm
Table load: 200 kg

Media

Main electronic connection: 400 V
Power consumption: 11 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Magazine tool capacity: 26 tools
- - Tool selection: random
- - Tool exchange time: 0,7 sec
- - Interface: ethernet
- - Watering system
- - Set of toll holders & chucks
Qualitative Machine Benefits:
- - Complete documentation
- - The machines have been fully revised and prepared
- - 100% ready for production

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
