Burkhardt-Weber - MC80FI-MIL-BUR-1986-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Burkhardt-Weber MC80 Horizontal machining center

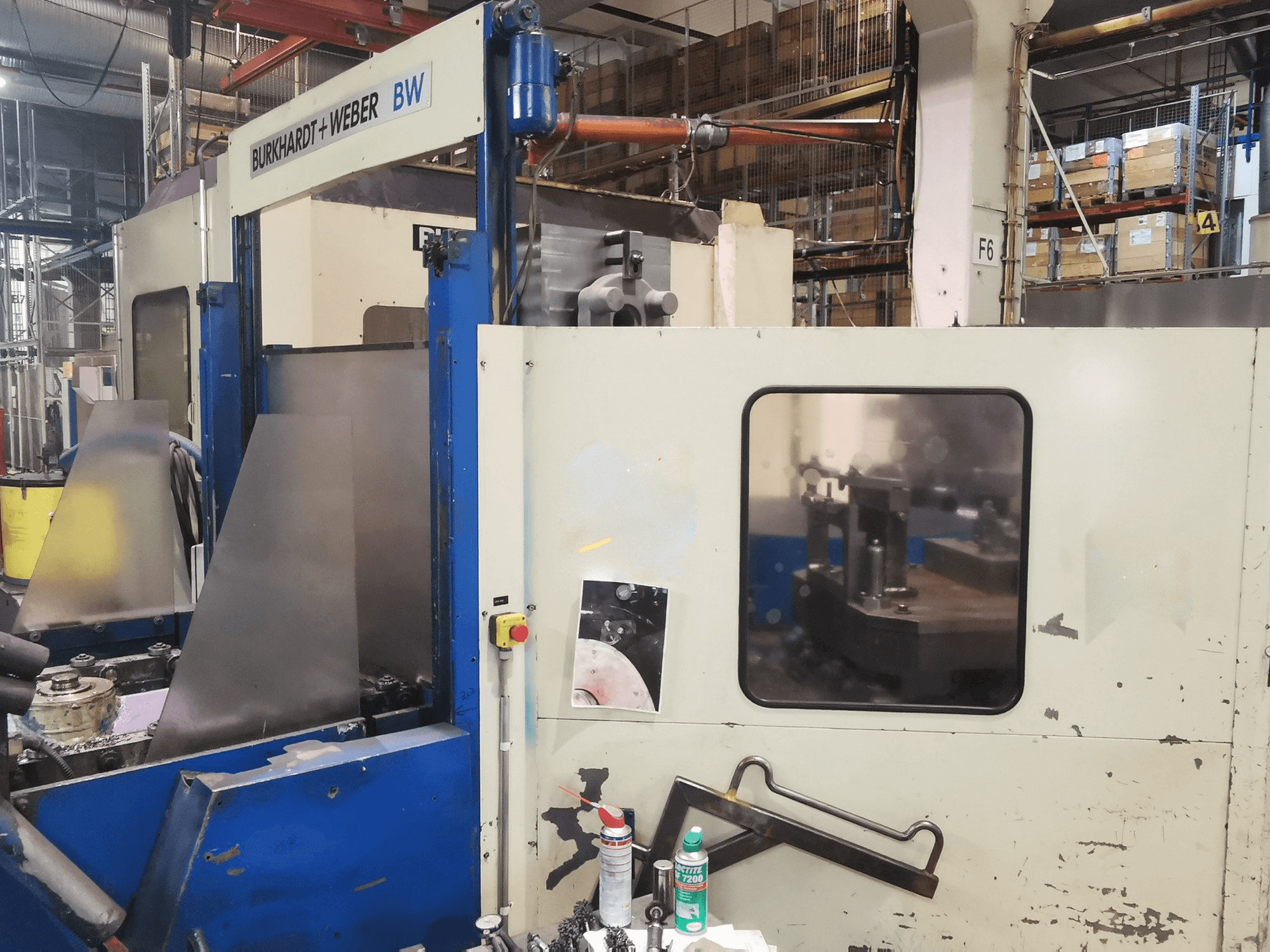

This Burkhardt-Weber MC80 Horizontal machining center was built in Germany in 1986. It is operated through a renewed Siemens 840 C control unit. It works with a spindle speed range 20 - 4000 rpm. The machine comes with pallette changer for 6 pallets, a lift table for pallet changer and a tool measurement unit.
Overview
- brand: Burkhardt-Weber
- year: 1986
- MODEL: MC80
- application type: Milling
- Location: Finland
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - Burkhardt-Weber MC80
Control Unit
- Control Brand: SIEMENS
- Control Model: 840 C
Dimensions
- Machine Depth: 5400 mm
- Machine Height: 3800 mm
- Machine Weight: 19000 kg
- Table Length: 800 mm
- Table Width: 800 mm
Movement
- X-axis Travel: 1250 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Max. Tool Weight: 30 kg
- Number of Tools: 173
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- Pallette changer for 6 pallets
- 6 pallets 800 x 800 mm
- Lift table for pallet changer
- Tool measurement unit
Machine Benefits
Technical Machine Benefits
- Very good precision and repeatability
- Massive tool changer capacity
- Renewed siemens 840 c controller
Machine History
End product
Machining of tractor casing parts
Material type
Steel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
