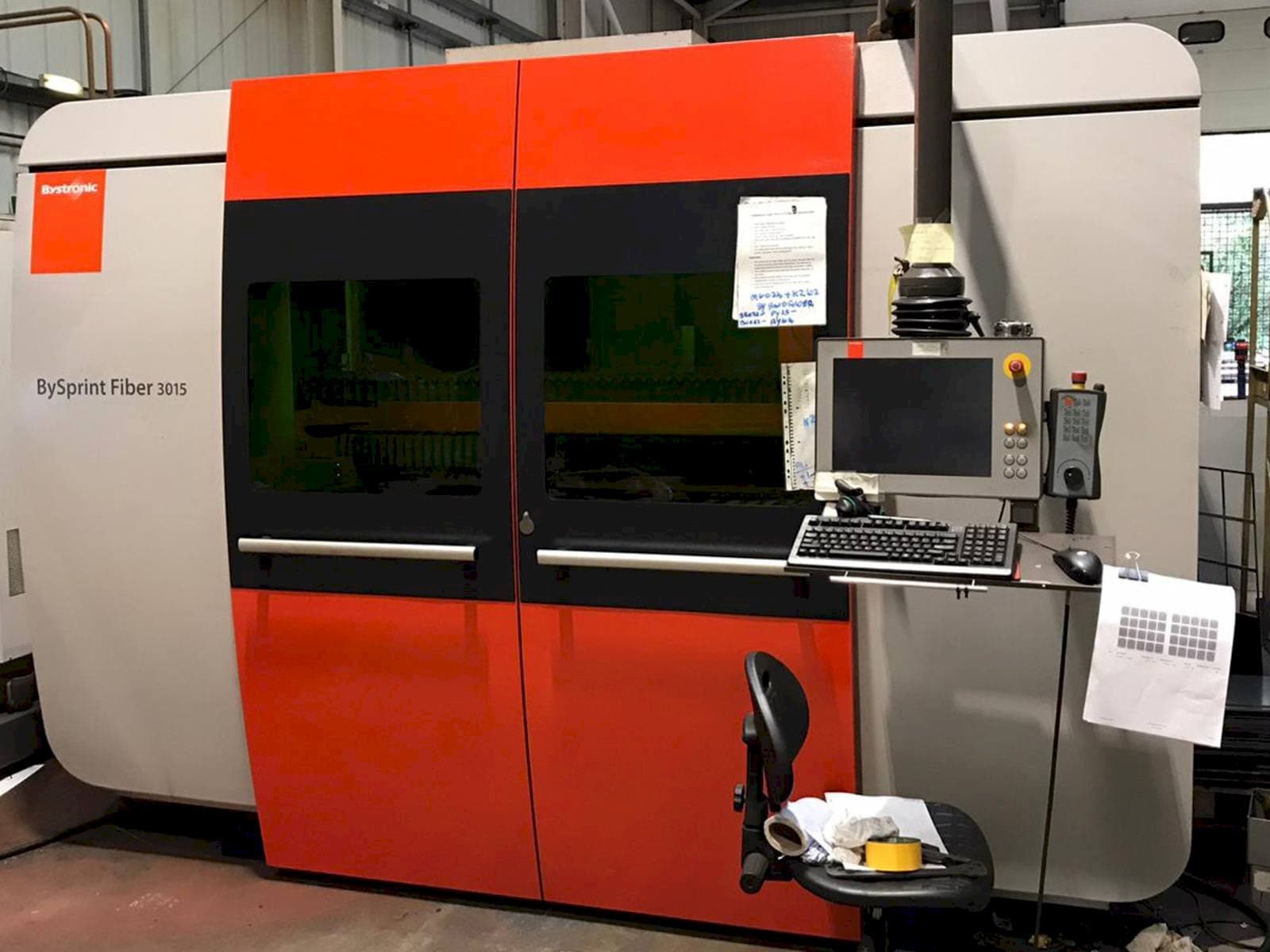

Front view of Bystronic BySprint Fiber 3015 machine
Front view of Bystronic BySprint Fiber 3015 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bystronic - BySprint Fiber 3015GB-LAS-BYS-2015-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bystronic BySprint Fiber 3015 laser cutting machine was manufactured in 2015. The machine has a total of 10195 production hours. It is operated through a Bystronic ByVision control unit. It has a laser power of 4 kW.

Overview

  • brand: Bystronic
  • year: 2015
  • MODEL: BySprint Fiber 3015
  • production hours: 10195
  • application type: Cutting
  • Location: United Kingdom
  • machine type: Fiber Laser Cutting Machine
  • control unit brand: BYSTRONIC

Technical Information - Bystronic BySprint Fiber 3015

General Data

  • Machine weight: 13000 kg

Control Unit

  • Model: ByVision
  • CNC main language: English
  • Brand: BYSTRONIC

Main drive

  • Laserpower: 4 kW

Movement

  • X-AXIS Movement: 3048 x 1524 x 70 mm

Workpiece

  • Workpiece drm over bed: 3000 x 1500 mm
  • Workpiece weight: 890 kg

Max Material thickness

  • Steel: 20 mm

Media

  • Power consumption: 26 kW

Additional Information

Machine Benefits

Technical Machine Benefits

  • Bytrans transporting system
  • Max. Positioning speed axially parallel x, y: 100 m / min max. Simultaneous positioning speed: 140 m / min position deviation: +/- 0. 1 mm position spread: +/- 0. 05 mm"
  • Electrical consumption of the entire system: 26 kw
  • Laser source: type: fiber 4000 power: 4,000 watts control range: 400 - 4000 watts"
  • Max. Sheet thickness: steel 20 mm stainless steel 15 mm, aluminum 15 mm brass 8 mm copper 8 mm"

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
