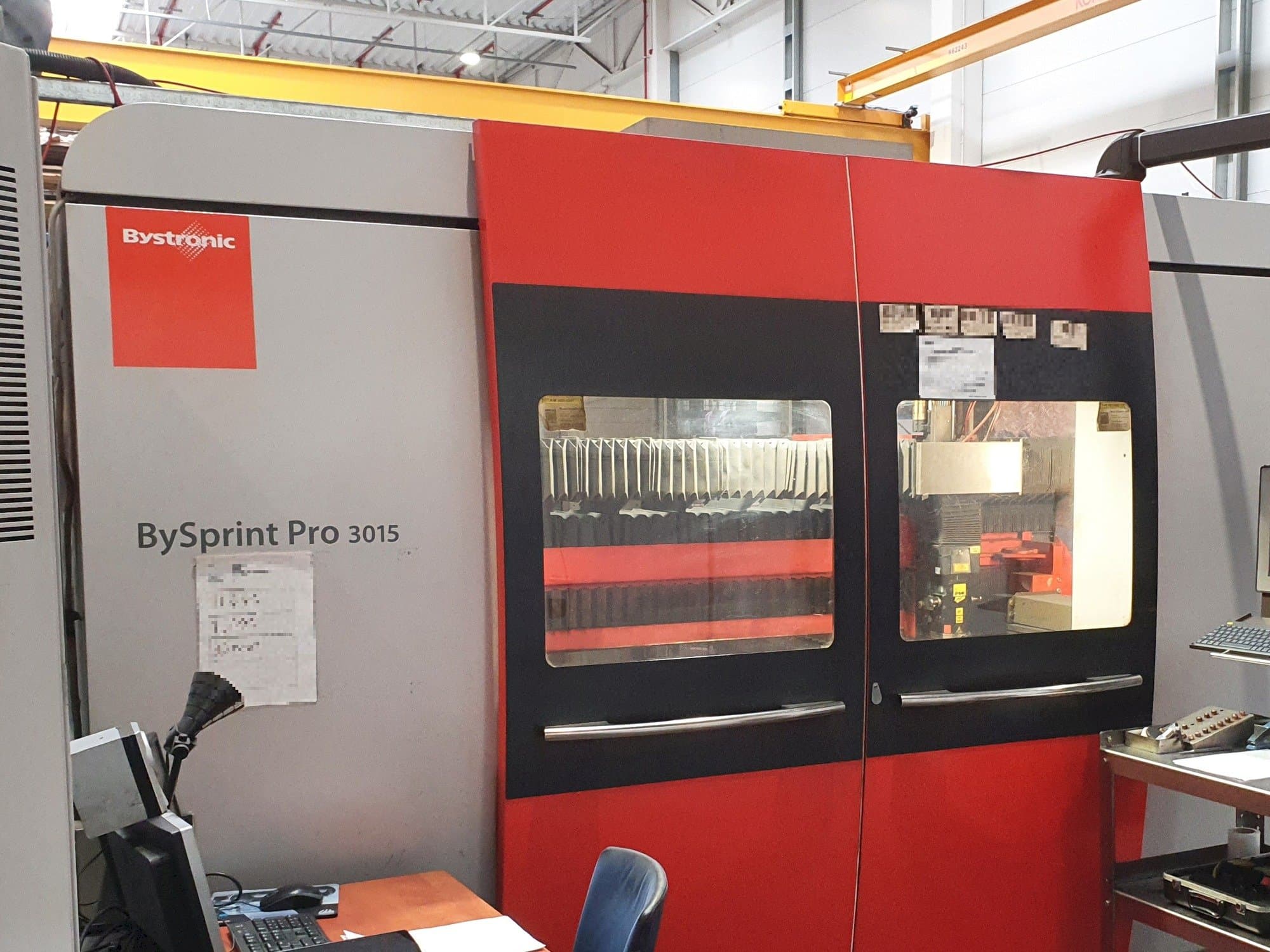

Front view of Bystronic BySprint Pro 3015 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic BySprint Pro 3015

Photo Gallery

Bystronic - BySprint Pro 3015PL-LAS-BYS-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ BYSTRONIC BySprint PRO 3015 Laser Cutting Machine

Show in original language

This Bystronic BySprint Pro 3015 Laser Cutting Machine was built in Switzerland in 2011 and counts with 24103 cutting hours. This machine works with a laser power of 4.4 kW and can cut steel sheets up to 25 mm of thickness. This machine presents perfectly good conditions, as it has been recently serviced by Bystronic.

Overview

brand: Bystronic
year: 2011
MODEL: BySprint Pro 3015
production hours: 24103
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
control unit brand: BYSTRONIC

Technical Information - Bystronic BySprint Pro 3015

General Data

Measurements width: 10400 mm
Measurements depth: 6500 mm
Measurements height: 2450 mm
Machine weight: 12000 kg

Control Unit

Brand: BYSTRONIC

Main drive

Laserpower: 4.4 kW
Laser type: CO2
Laser brand: ByLaser 4400

Movement

X-AXIS Movement: 3048 mm
Y-AXIS Movement: 1524 mm
Z-AXIS Movement: 700 mm

Workpiece

Workpiece weight: 750 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Media

Main electronic connection: 3x400V/50Hz
Power consumption: 40kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Nominal sheet size: 3000x1500mm
- - Repeatability ps: ± 0. 05mm
- - Positioning accuracy pa: ± 0. 1mm
- - Maximum positioning speed: 140 m/min
Qualitative Machine Benefits:
- - Machine regularly serviced by bystronic service
- - Very good, working condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
