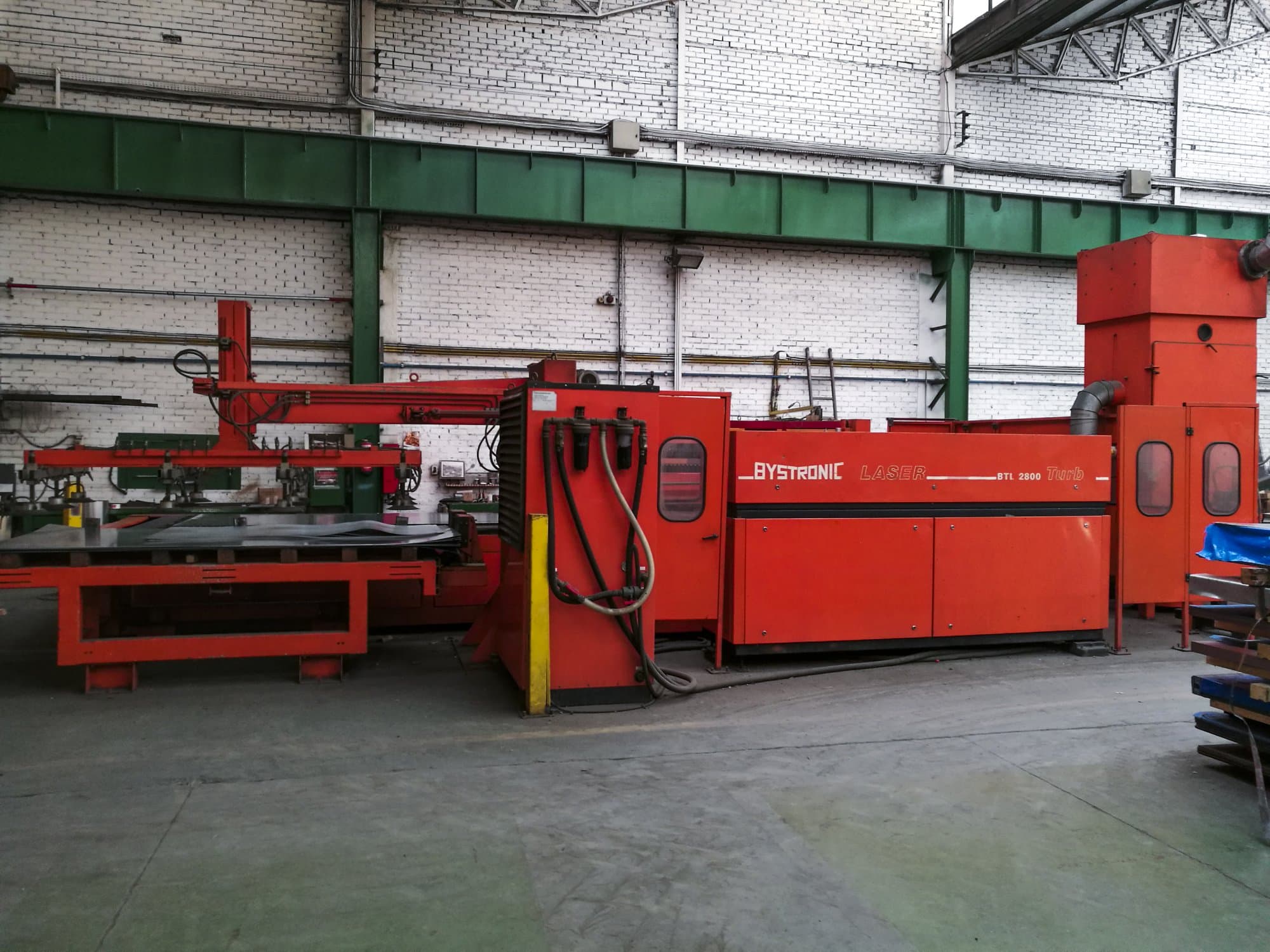

Working room of Bystronic Bystar 3015 BTL 2800 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic Bystar 3015 BTL 2800

Photo Gallery

Bystronic - Bystar 3015 BTL 2800ES-LAS-BYS-1995-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Bystronic Bystar 3015 BTL 2800 Laser Cutting Machine

Show in original language

This Bystronic Bystar 3015 BTL 2800 Laser Cutting Machine was built in 1995 and has a production record of 83000 hours. This machine excels in cutting thin sheets, for which it is considered a top tier choice, as well as its ability to cutting pieces of bigger sizes and tubes. The Bystronic also includes an additional tension stabilizer and a sheet loader for automatic feeding.

Overview

brand: Bystronic
year: 1995
MODEL: Bystar 3015 BTL 2800
production hours: 83000
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine

Technical Information - Bystronic Bystar 3015 BTL 2800

General Data

Measurements width: 105000 mm
Measurements depth: 7600 mm
Machine weight: 20092 kg

Main drive

Laserpower: 2.8 kW

Movement

X-AXIS Movement: 3048 mm
X-AXIS Working Feed: 50 m/mm
X-AXIS Rapid traverse: 140 m/mm
Y-AXIS Movement: 1524 mm
Y-AXIS Working Feed: 50 m/mm
Y-AXIS Rapid traverse: 140 m/mm
Z-AXIS Movement: 70 mm

Max Material thickness

Steel: 12 mm
Stainless steel: 10 mm

Media

Main electronic connection: 23.5 kVA
Air pressure: 6 bar
He consumption: 27 NL/h
CO2 consumption: 2 NL/h
N2 consumption: 12 NL/h

Additional Information

Additional equipment

Tension stabilizer applied to the machine
Sheet loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
