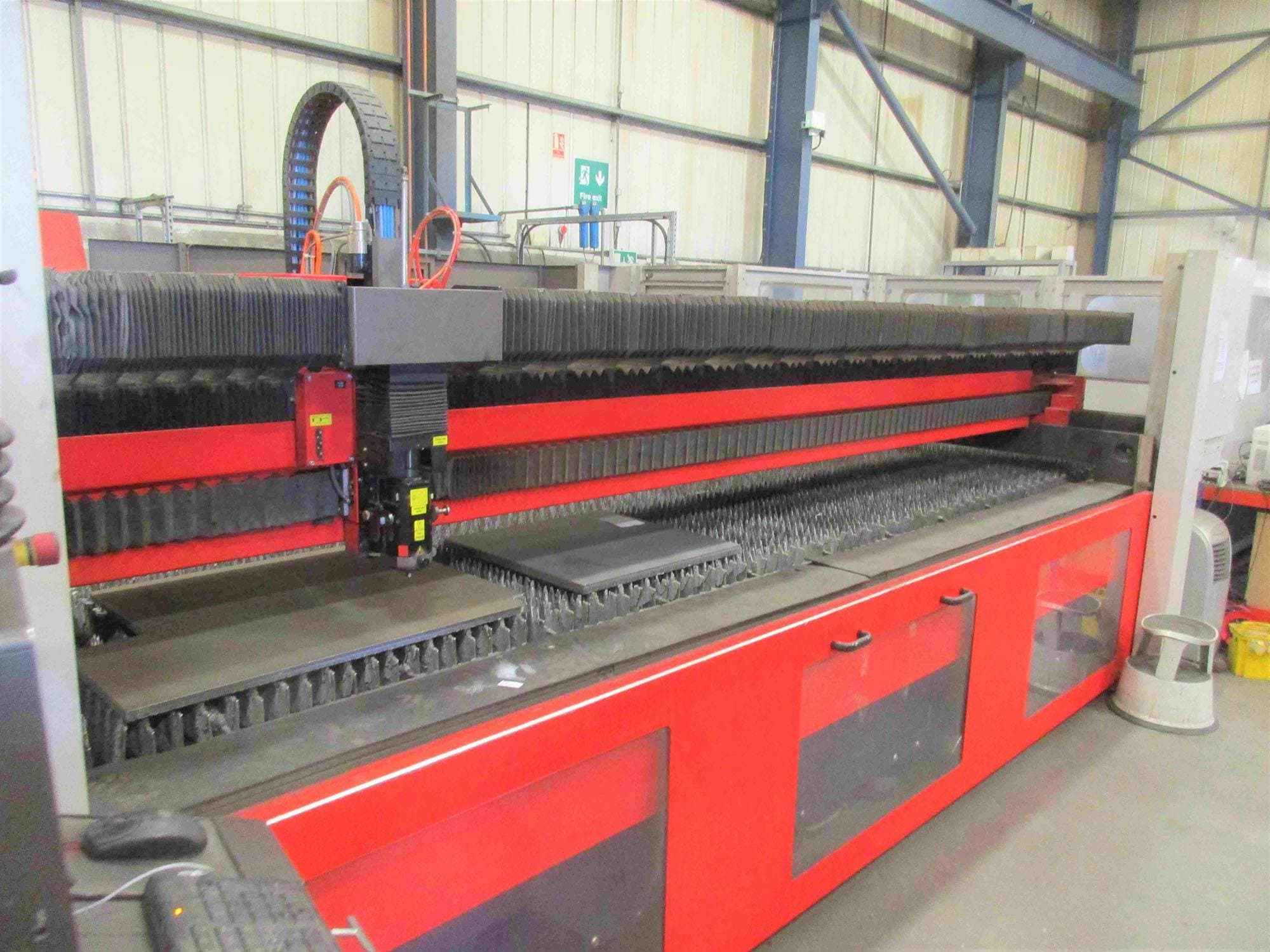

Front view of Bystronic Bystar L 4025-65 machine
Front view of Bystronic Bystar L 4025-65 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bystronic - Bystar L 4025-65IT-LAS-BYS-2007-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bystronic Bystar L 4025-65 Laser Cutting Machine was made in 2007 in Switzerland. It is equipped with a control unit of the same brand. This machine has a production record of approximately 26000 working hours. It stands out due to its potent laser power of 6 kW. During the past, had been working with steel, stainless steel, and aluminium.

Overview

  • brand: Bystronic
  • year: 2007
  • MODEL: Bystar L 4025-65
  • production hours: 26000
  • application type: Cutting
  • Location: Italy
  • machine type: CO2 Laser Cutting Machine
  • control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar L 4025-65

General Data

  • Measurements width: 18700 mm
  • Measurements depth: 7500 mm
  • Measurements height: 2350 mm
  • Machine weight: 33000 kg

Control Unit

  • Brand: BYSTRONIC

Main drive

  • Laserpower: 6 kW

Movement

  • X-AXIS Movement: 6500 mm
  • Y-AXIS Movement: 2500 mm
  • Z-AXIS Movement: 170 mm

Max Material thickness

  • Steel: 25 mm
  • Stainless steel: 20 mm
  • Aluminum: 12 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Fast speed: x and y axes 60mt/min- simultaneous axes 85mt/min
      • - Repeatability accuracy of the table with repositioning: +/- 0. 02 mm
      • - Table change with safety photocells
      • - Ethernet rj45 card
      • - Sectorial suction system with vacuum cleaner
      • - Chiller

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
