Challenger Microturn BNC 2680

Show in original language

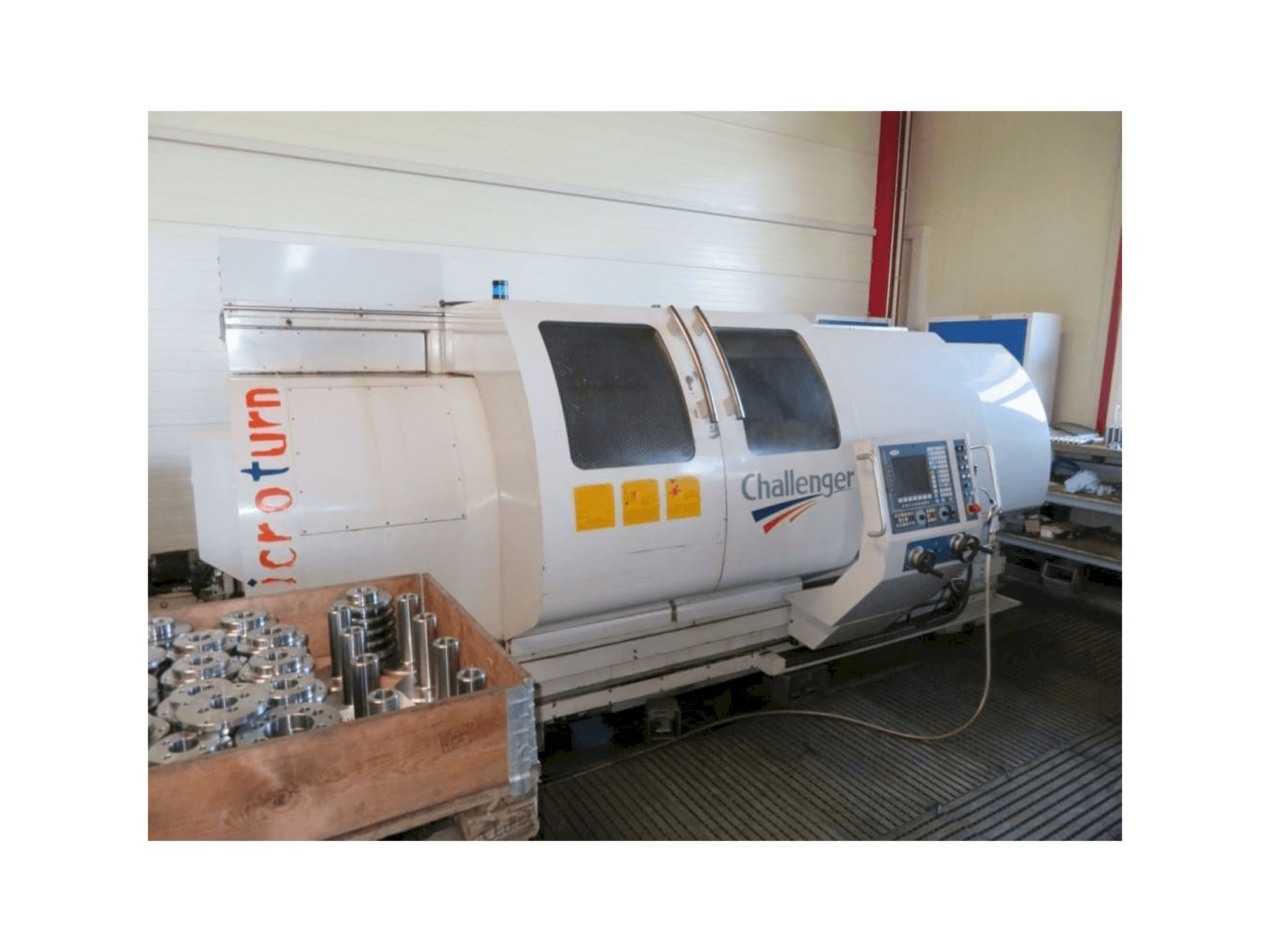

This Challenger Microturn BNC 2680 Lathe from 2007 was made in Taiwan. This 2 axis machine has been operative for 16137 hours. It is equipped with a FAGOR 8055 TC-A control unit. This machine works with a spindle speed range 80-3500 rpm infinitely variable and a spindle bore: 82 mm. It includes an additional fixed lynette.

Overview

brand: Challenger
year: 2007
MODEL: Microturn BNC 2680
production hours: 16137
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FAGOR

Technical Information - Challenger Microturn BNC 2680

General Data

Measurements width: 4000 mm
Measurements depth: 2400 mm
Measurements height: 2400 mm
Machine weight: 5000 kg

Control Unit

Model: 8055 TC-A
Brand: FAGOR

Main drive

Spindle speed range: 80-3500 1/MIN
Spindle bore: 82 mm
Tool taper: ASA A1-8
Number of axis: 2

Movement

X-AXIS Movement: 345 mm
Z-AXIS Movement: 2150 mm

Workpiece

Workpiece weight: 2000 kg

Turret

Tool taper: TB 160

Tools

Type of tool holder: VDI 40

Media

Main electronic connection: 400 v 50 hz
Power consumption: 11/15 kw

Additional Equipment

- additional fixed lynette (own construction)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Centre height: 315 mm
- - Max. Turning diameter: 680 mm
- - Max. Turning length: 2000 mm
- - Max. Turning diameter over cross slide: 410 mm
- - Rapid traverse 15 rpm
- - Three-jaw chuck: hydr. Chuck strong type n210
- - Bar capacity: 69 mm incl. Various hard and soft jaws
- - Automatic tool turret: fabr. Baruffaldi, 8-position

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
