CHARMILLES - 290PPT-EDM-CHA-1999-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

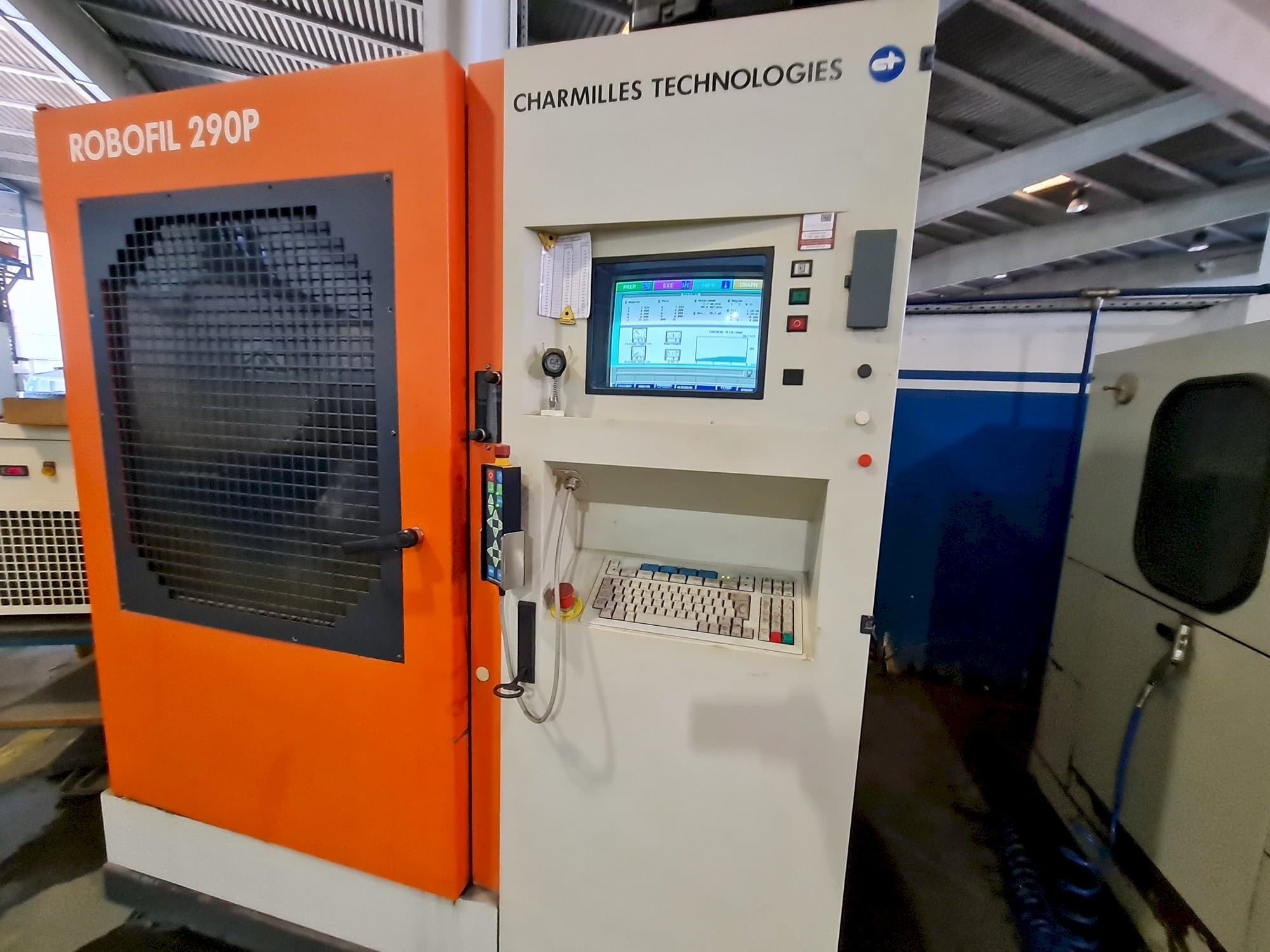

- CHARMILLES 290P Erosion machine
This CHARMILLES 290P Erosion machine was made in Switzerland in 1999. It has 6000 hours. It is equipped with a control unit of the same brand. This 5 axis machine has a table dimensions 850 x 500 mm. It comes with protection against collisions in their axes. Includes various accessories.
Overview
- brand: CHARMILLES
- year: 1999
- MODEL: 290P
- production hours: 6000
- application type: EDM
- Location: Portugal
- machine type: Wire EDM Machine
- control unit brand: CHARMILLES
Technical Information - CHARMILLES 290P
General Data
- Measurements width: 1800 mm
- Measurements depth: 1600 mm
- Measurements height: 2130 mm
- Machine weight: 2200 KG
Control Unit
- Model: CONSOLE 2 (5 axis)
- Brand: CHARMILLES
Main drive
- Wire diameter: 0.25 mm
- Number of axis: 5
Movement
- X-AXIS Movement: 400 MM
- Y-AXIS Movement: 250 MM
- Z-AXIS Movement: 200 MM
- V-Axis Movement: 250 MM
- U-Axis Movement: 400 MM
Workpiece
- Workpiece weight: 500 KG
Table
- Outer length: 850 MM
- Outer width: 500 MM
Media
- Main electronic connection: 3 x 380V / 50Hz
- Power consumption: 10 kVA
Additional Information
Additional equipment
- Various accessories
Machine Benefits
Technical Machine Benefits
- Tilt angle - height: +30/200 º/ min
- Axis protection against collisions: x, y, u, v, z
- Part max. Dimensions: 850 x 500 x 200 mm
- Part max. Weight: 500 kg
- X x y x z strokes: 400 x 250 x 400 mm
- U x v stroke: 400 x 250 mm
- Tank capacity: 300 l
- Generator: 10 kva
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
