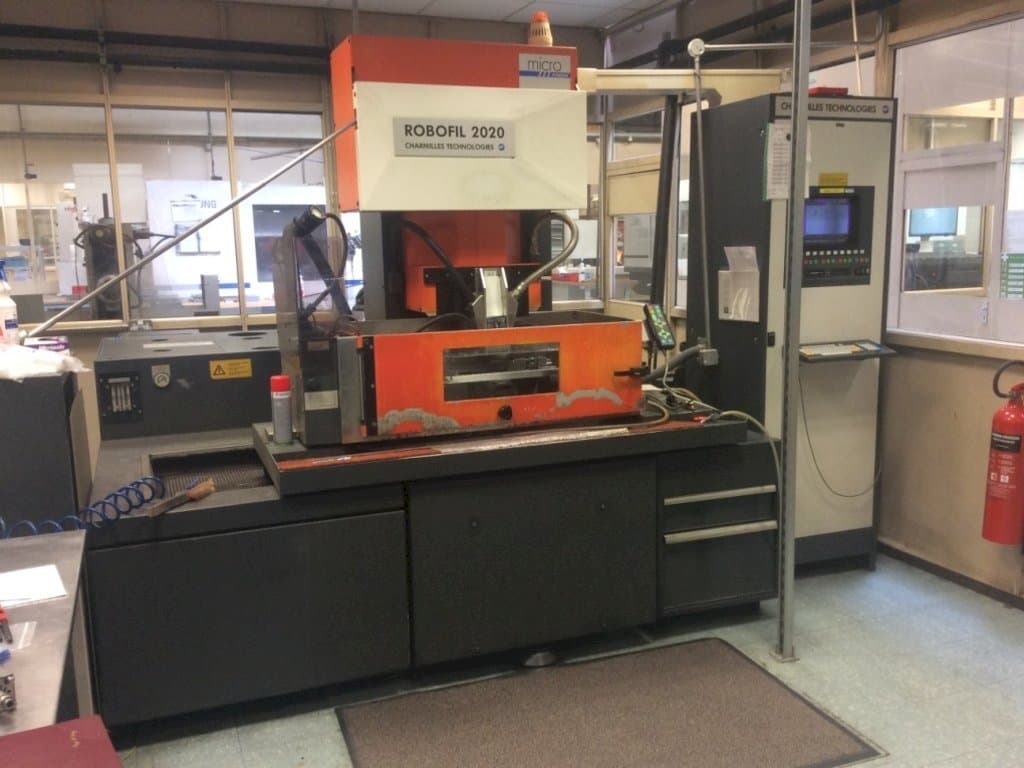

Front view of CHARMILLES Technologies Robofil 2020 - 1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHARMILLES Robofil 2020 - 1

Photo Gallery

CHARMILLES - Robofil 2020 - 1IE-EDM-CHA-1995-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
CHARMILLES Robofil 2020 - 1 Erosion Machine

Show in original language

This CHARMILLES Robofil 2020 - 1 Erosion Machine was made in 1995 in Switzerland. It has been working for approximately 48000 hours. It is equipped with a control unit of the same brand. This machine can work with a wire diameter of 0.1 to 0.3 mm.

Overview

brand: CHARMILLES
year: 1995
MODEL: Robofil 2020 - 1
production hours: 48000
application type: EDM
Location: Ireland
machine type: Wire EDM Machine
control unit brand: CHARMILLES

Technical Information - CHARMILLES Robofil 2020 - 1

General Data

Measurements width: 2500 mm
Measurements depth: 2500 mm
Measurements height: 2290 mm
Machine weight: 2200 kg

Control Unit

Model: Charmilles CNC
Brand: CHARMILLES

Main drive

Wire diameter: 0.1 to 0.3 mm

Movement

X-AXIS Movement: 320 mm
Y-AXIS Movement: 220 mm
Z-AXIS Movement: 116 mm

Workpiece

Workpiece x: 990 mm
Workpiece y: 505 mm
Workpiece z: 150 mm
Workpiece weight: 500 kg

Table

Outer length: 600 mm
Outer width: 420 mm

Media

Main electronic connection: 400 V
Power consumption: 12 kVA

Additional Equipment

- Auto Wire Feed
- Dielectric Filtration and Tank
- 900L Di-Elecetric Tank

Additional Information

Machine history

Industries: Medical device

Machine Benefits

Qualitative Machine Benefits:
- - Well serviced and looked after machine
- - Used for high precision medical device components

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
