CMS Athena A3 OCE

Photo Gallery

CMS - Athena A3 OCEDE-MIL-CMS-2022-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

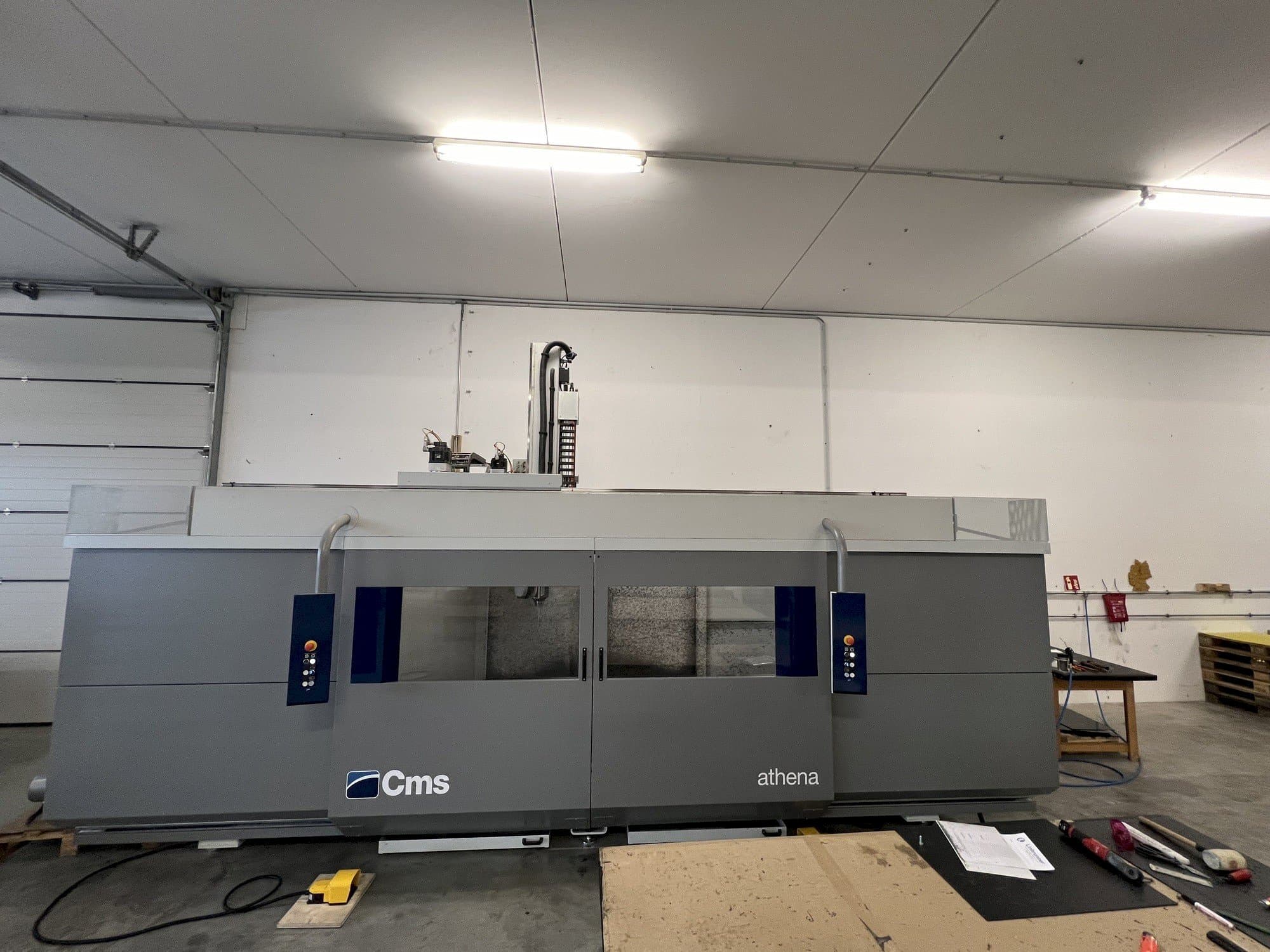

CMS Athena A3 OCE Milling machine

Show in original language

This CMS Athena A3 OCE Milling machine was manufactured in the year 2022 in Italy. It is equipped with a CMS Osai Open CNC control unit and has 5 axis. The machine has a spindle speed of 24000 rpm.

Overview

brand: CMS
year: 2022
MODEL: Athena A3 OCE
application type: Milling
Location: Germany
machine type: Gantry Milling Machine

Technical Information - CMS Athena A3 OCE

Control Unit

Model: Osai open CNC

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 8,5 kW
Number of axis: 5

Movement

X-AXIS Movement: 3370 mm
X-AXIS Feed Force: 90.000 mm/min
Y-AXIS Movement: 1500 mm
Y-AXIS Feed Force: 60.000 mm/min
Z-AXIS Movement: 1200 mm
Z-AXIS Feed Force: 40.000 mm/min
B-AXIS Movement: 120º
C-AXIS Movement: 270º

Table

Outer length: 3060 mm
Outer width: 1530 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Doors are manual (not automatic)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
