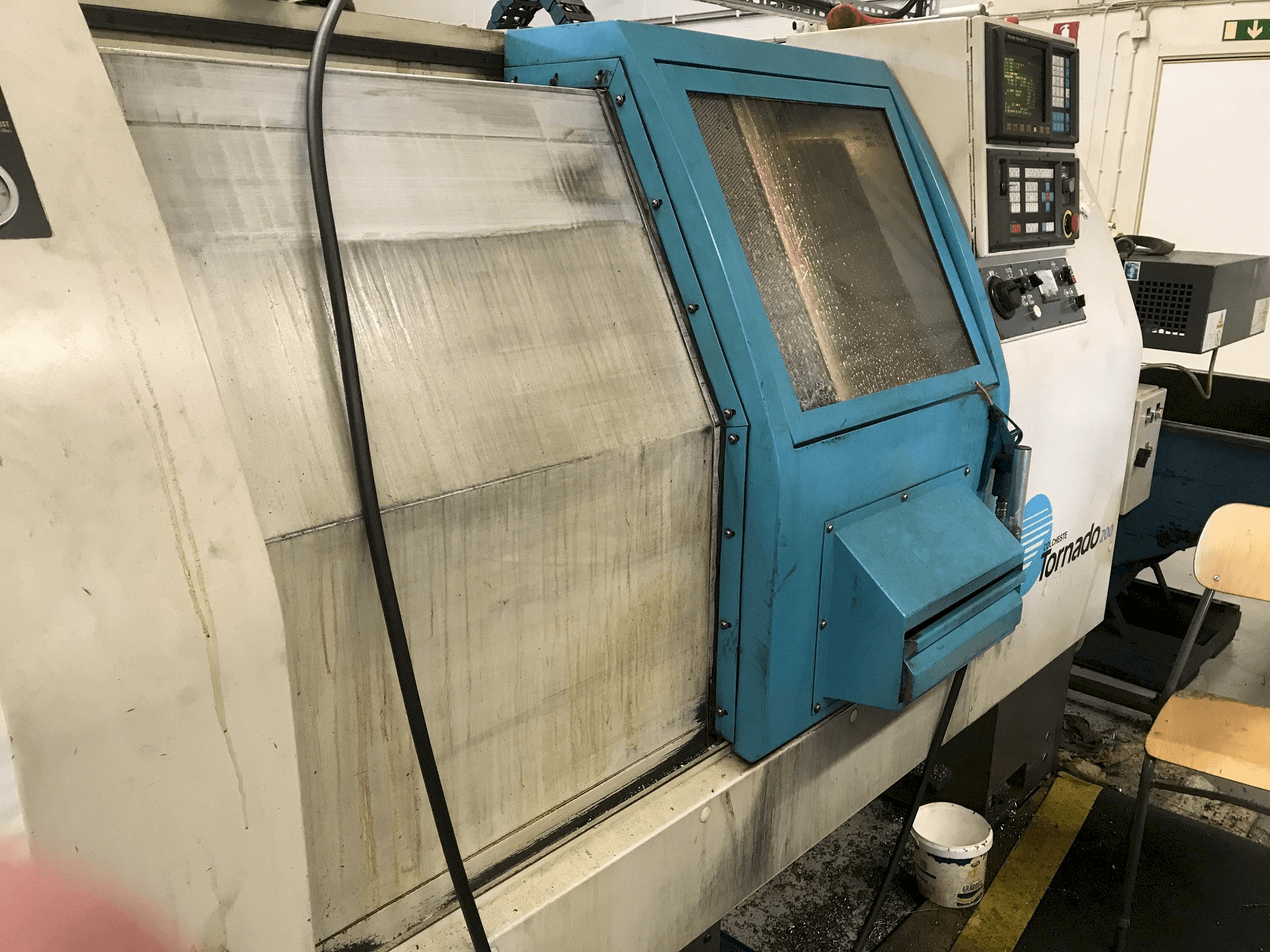

Front view of Colchester Tornado 200 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Colchester Tornado 200

Photo Gallery

Colchester - Tornado 200SE-TUR-COL-1995-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Colchester Tornado 200 Lathe

Show in original language

This Colchester Tornado 200 Lathe was manufactured in the year 1995. It is operated through a Fanuc O-T control unit. This machine incorporates a spindle speed up to 5000 rpm, and a max swing diameter of 250 mm.

Overview

brand: Colchester
year: 1995
MODEL: Tornado 200
application type: Turning
Location: Sweden
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Colchester Tornado 200

Control Unit

Model: O-T
Brand: FANUC

Main drive

Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 200 mm
Z-AXIS Movement: 400 mm

Tools

Slots in storage: 12
Type of tool holder: VDI 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max swing diameter: 250 mm
- - Max swing: 530 mm
- - Max swing cross member: 330 mm
- - Max lathe length: 600 mm. (obs 400 mm movement z axis)
- - Spindle passage: 77. 5 mm
- - Spindle cone: asa a2-6
- - Chuck: 210 mm
- - Pinol mk4
- - Pinol movement: 125 mm
- - Double-dock movement (manual) 485 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
