DAEWOO - PUMA TT 2000 SYDE-TUR-DAE-2005-00001

Name: DAEWOO PUMA TT 2000 SY
Brand: DAEWOO
SKU: DE-TUR-DAE-2005-00001
Price: 58302 GBP
Availability: InStock

£ 58,302

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DAEWOO PUMA TT 2000 SY For Sale | gindumac.com

Show in original language

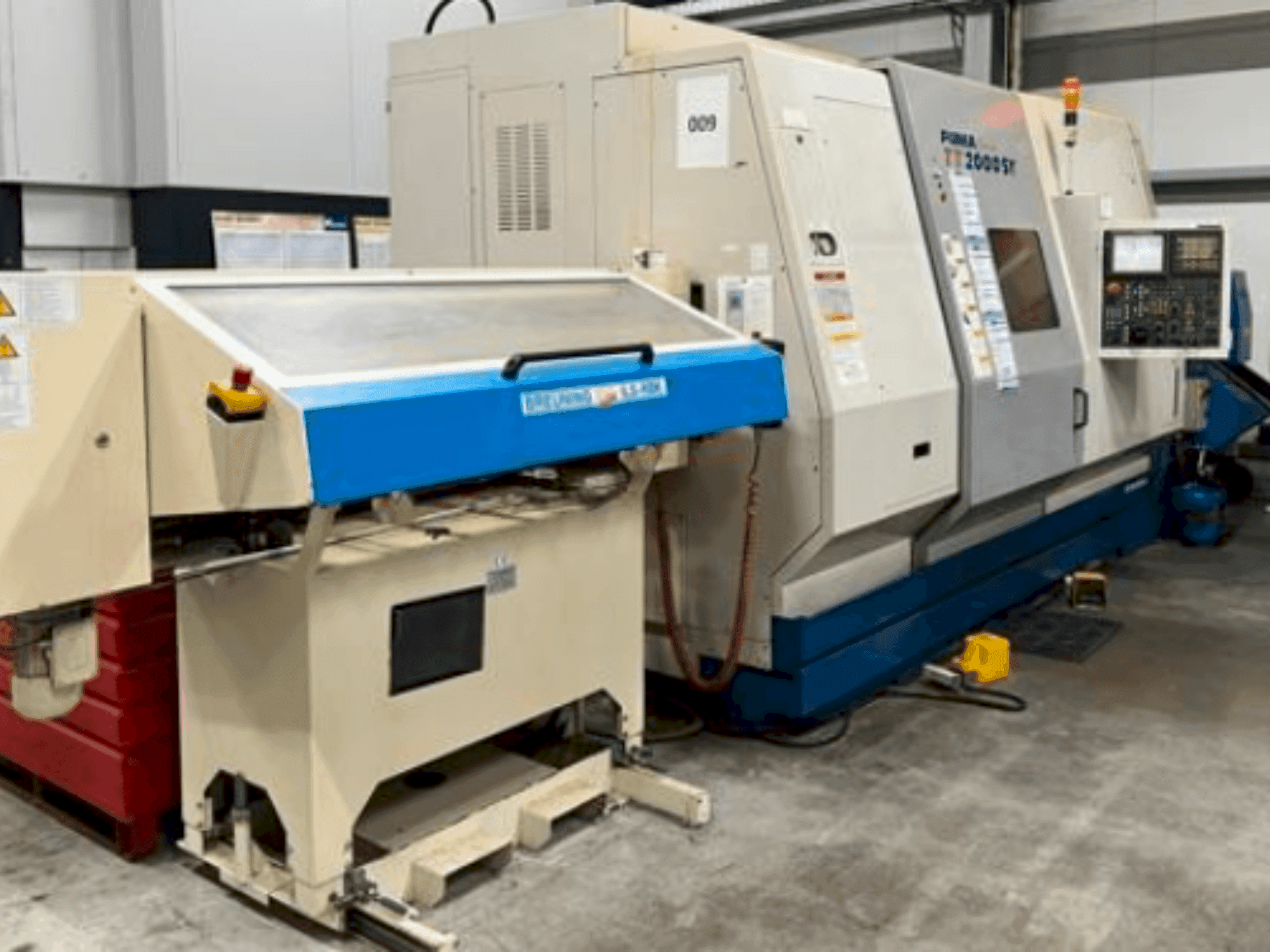

This 3-axis DAEWOO PUMA TT 2000 SY was manufactured in 2005. It features a turning diameter over bed of 800 mm and a maximum bar diameter of 65 mm. Equipped with a Fanuc 18i-TB control system, it offers spindle speeds up to 5000 rpm and includes a tool turret with 12 stations. Consider the opportunity to buy this DAEWOO PUMA TT 2000 SY horizontal turning machine. Contact us for more information about this machine.

Overview

brand: DAEWOO
year: 2005
MODEL: PUMA TT 2000 SY
production hours: 6235
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DAEWOO PUMA TT 2000 SY

Control Unit

Control Brand: FANUC
Control Model: 18i-TB

Dimensions

Machine Depth: 4100 mm
Machine Weight: 11600 kg

Movement

C-axis: 360°
Number of Axes: 3
X-axis Travel: 255 mm
Y-axis Travel: 120 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 5000 RPM

Additional Information

Additional equipment

Measuring Probe: Tool Measuring Probe
Automatic Bar Loader: ILS-RBK10016 L 2265 mm, W 1116 mm, Approx. 490 kg
Bar Loader Max. Material Length/Diameter: 1600 mm/5-65 mm
Magazine Short Bar Feed with Servo Drive
Main and Counter Spindle with Power Chuck D = 250
Enclosed Work Area Enclosure According to Accident Prevention Regulations
Memory Card Input Socket, RS 232 Socket
Tool Load Monitoring, Bed Flushing
Workpiece Air Blow-off Function
Automatic Tool Measuring Probe // Driven Tools on Both Revolvers

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
