➤ Used DECKEL DMU 50 For Sale | gindumac.com

Show in original language

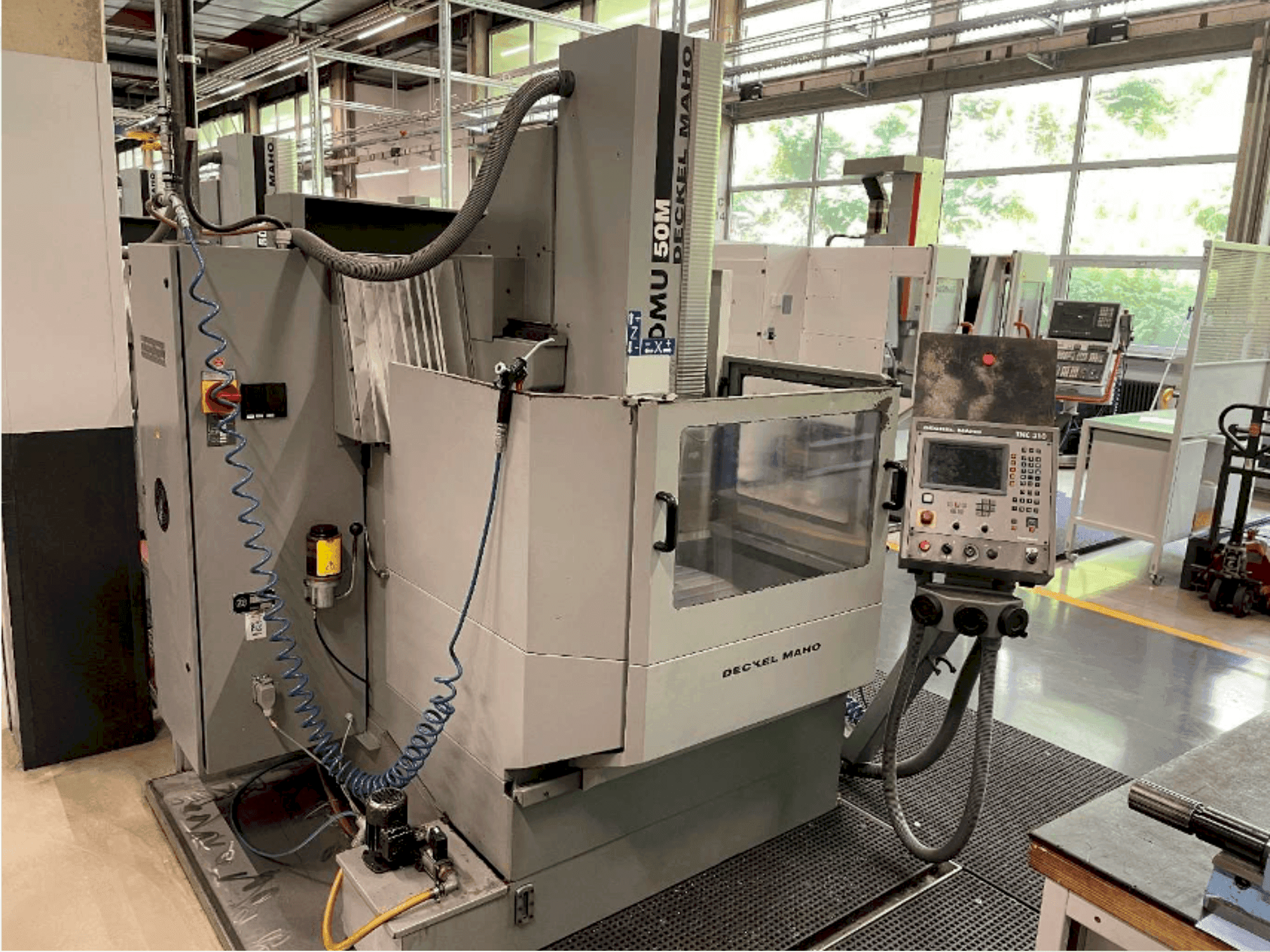

This 3-axis DECKEL DMU 50 vertical machining center was manufactured in 2003. It features a Heidenhain TNC 310 control, electronic handwheel HR 150, and a main drive speed of 4,500 min-1. The machine offers a rapid traverse of 5 m/min and a maximum load capacity of 200 kg. If you are looking to get high-quality milling capabilities, consider the DECKEL DMU 50 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: DECKEL
year: 2003
MODEL: DMU 50
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL DMU 50

General Data

Measurements width: 1520 MM
Measurements depth: 2000 MM
Measurements height: 2140 MM
Machine weight: 2800 KG

Control Unit

Brand: HEIDENHAIN
Model: TNC 310

Main drive

Spindle speed range: 4500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 5 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 5 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 5 m/min

Table

Outer length: 700 mm
Outer width: 500 mm
TSlots size: 63 mm
Distance between: 14 H7
Table load: 200 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed drive: xyz infinitely variable up to 5000 mm/min
- - Travel measuring system: xyz 0. 001 mm
- - Positioning tolerance: 0. 010 mm
- - Centering hole diameter: 30 mm h6
- - Swivel range: +95 / -10°
Qualitative Machine Benefits:
- - Features a rotary table with a generous clamping surface area to support various workpiece sizes.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
