DECKEL MAHO - DMC 125U hi-dynDE-MIL-DEC-2004-00004
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DECKEL MAHO DMC 125U hi-dyn Universal Machining Center

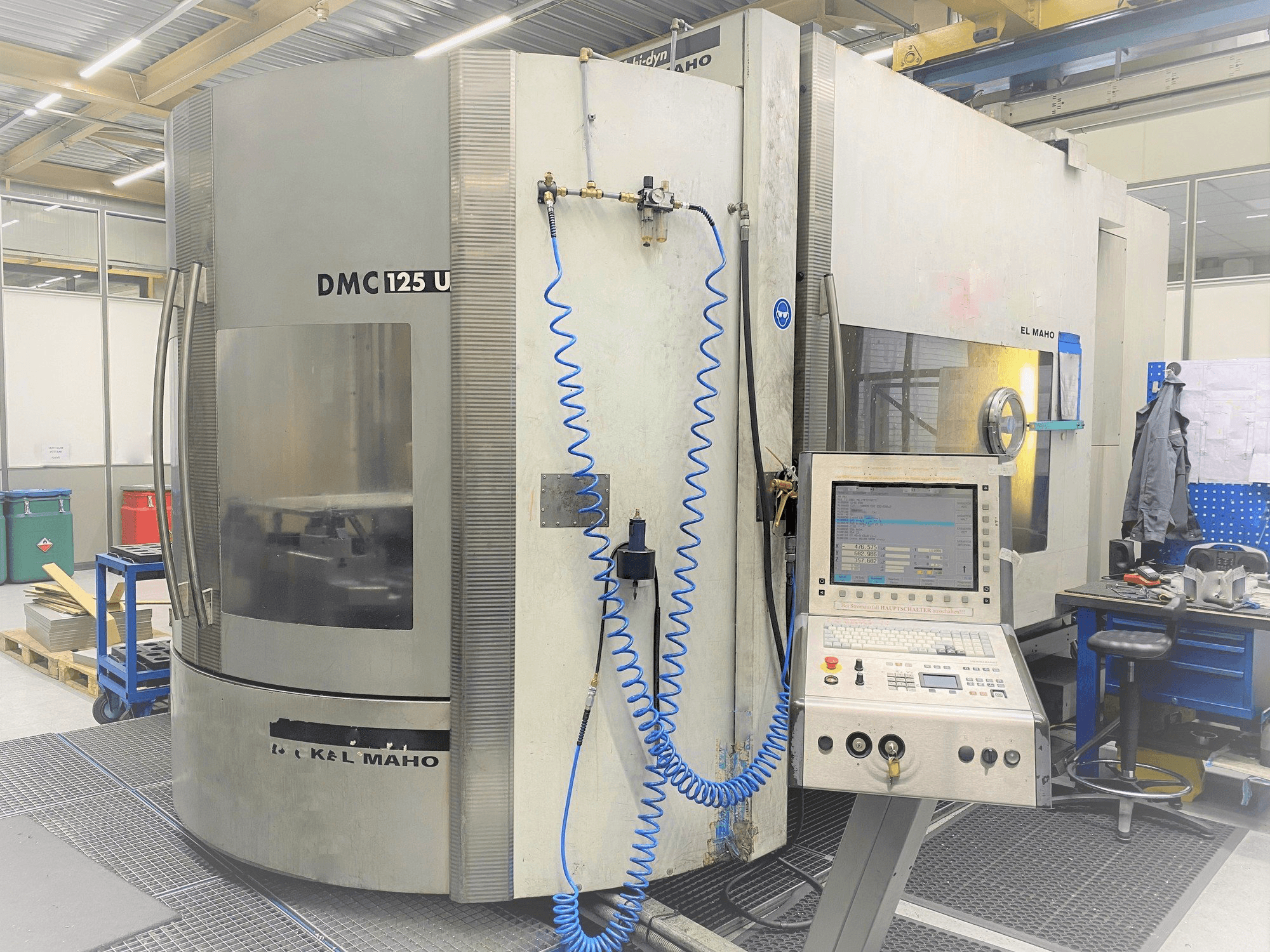

This DECKEL MAHO DMC 125U hi-dyn Universal Machining Center was built in the year 2004. It has 89500 operating hours, of which 32000 are spindle hours. It is equipped with a Heidenhain MillPlus IT 3D path control unit. This 5 axis machine can works with a spindle speed range between 20 - 12000 rpm. It comes with 2 pallets, an automatic swivel milling head and a turntable changer. Complete documentation is available.
Overview
- brand: DECKEL MAHO
- year: 2004
- MODEL: DMC 125U hi-dyn
- production hours: 32000
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMC 125U hi-dyn
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: MillPlus IT 3D path
Dimensions
- Machine Depth: 3000 mm
- Machine Height: 3100 mm
- Machine Weight: 14300 kg
- Table Length: 800 mm
- Table Width: 630 mm
Movement
- Number of Axes: 5
- X-axis Travel: 1250 mm
- Y-axis Travel: 880 mm
- Z-axis Travel: 800 mm
Technical Specification
- Number of Tools: 60
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Electronic handwheel MillPlus IT
- Universal milling head with controlled B-axis SK50
- Tool changer with pallet: 60 tool places
- Coolant / band filter system
- Tool holder: SK50 according to DIN 69871
- NC rotary table with pallet carrier
Machine Benefits
Qualitative Machine Benefits
- Complete documentation is available
Technical Machine Benefits
- Main drive: integrated motor spindle sk50
- Weight of tool magazine: 1400 kg
- Tool changing device horizontal double gripper
- Automatic swivel milling head
- Transport dimension tool magazine (lxwxh): 2650 x 2000 x 2500 mm
- Turntable changer
- 2 pallets: 1000 x 800 mm
- Coolant tank: 900 liter
- Coolant pressure ikz form through spindle center (ad)
- Rotating inspection window
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
