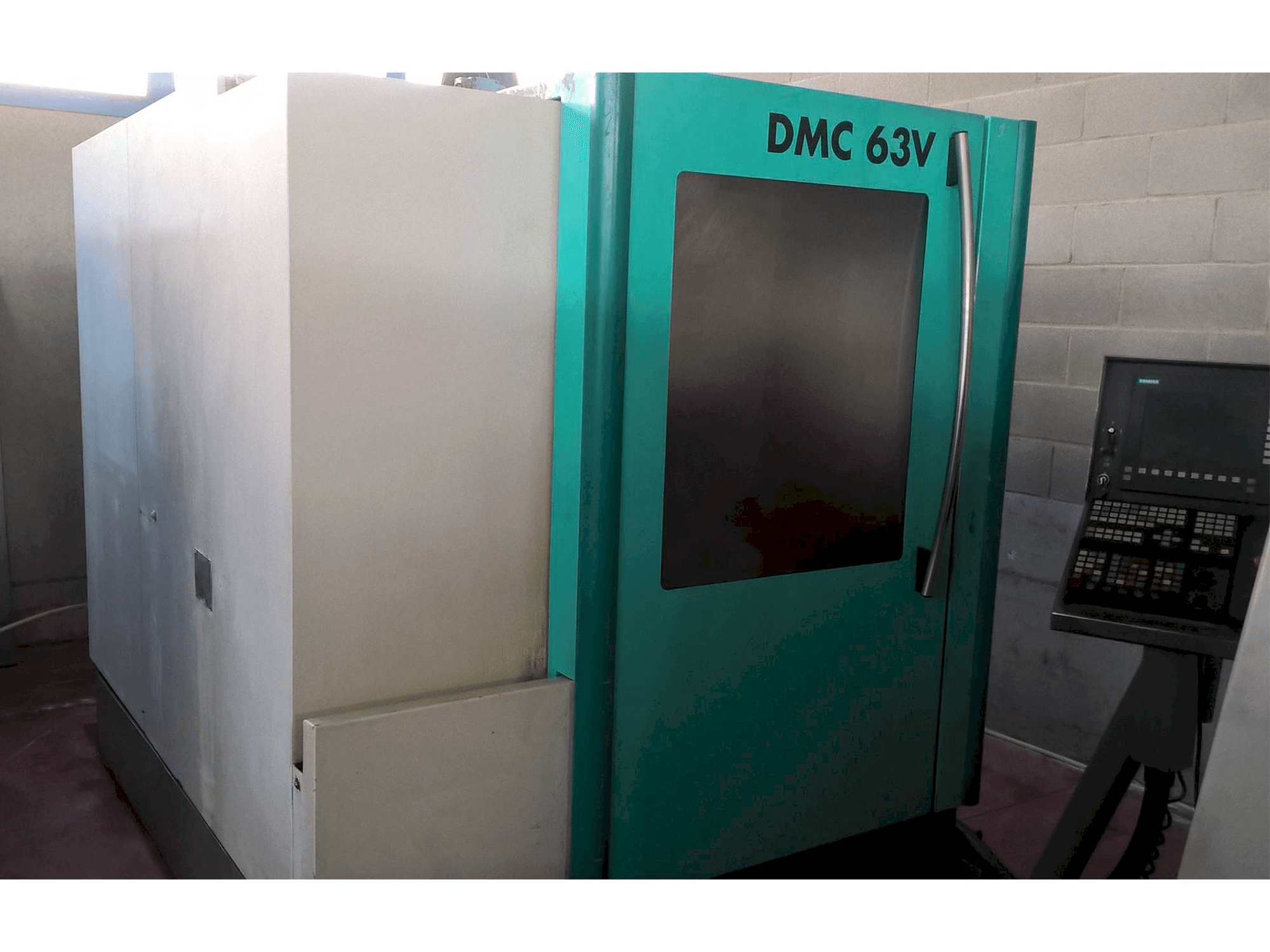

Front view of DECKEL MAHO DMC 63V machine
Front view of DECKEL MAHO DMC 63V machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DECKEL MAHO - DMC 63VIT-MIL-DEC-1999-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DECKEL MAHO DMC 63V Vertical Machining Center was manufactured in Germany in 1999. This 3 axis machine can perform with a spindle speed range up to 8000 rpm and counts with a Siemens 810D control unit.

Overview

  • brand: DECKEL MAHO
  • year: 1999
  • MODEL: DMC 63V
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - DECKEL MAHO DMC 63V

General Data

  • Measurements width: 2500 mm
  • Measurements depth: 2370 mm
  • Measurements height: 2760 mm
  • Machine weight: 3850 kg

Control Unit

  • Model: 810D
  • Brand: SIEMENS

Main drive

  • Spindle speed range: 8000 rpm 1/MIN
  • Spindle motor power: 13/9 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 630 mm
  • X-AXIS Rapid traverse: 30 mt/min
  • Y-AXIS Movement: 500 mm
  • Y-AXIS Rapid traverse: 30 mt/min
  • Z-AXIS Movement: 460 mm
  • Z-AXIS Rapid traverse: 30 mt/min

Workpiece

  • Workpiece weight: 600 kg

Table

  • Outer length: 790 mm
  • Outer width: 560 mm

Tools

  • Number of index: 24
  • Max weight: 6 kg
  • Max tool diameter: 80/130 mm
  • Max tool length: 300 mm
  • Type of tool holder: DIN69871 ISO 40 DIN

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Torque 83/57 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
