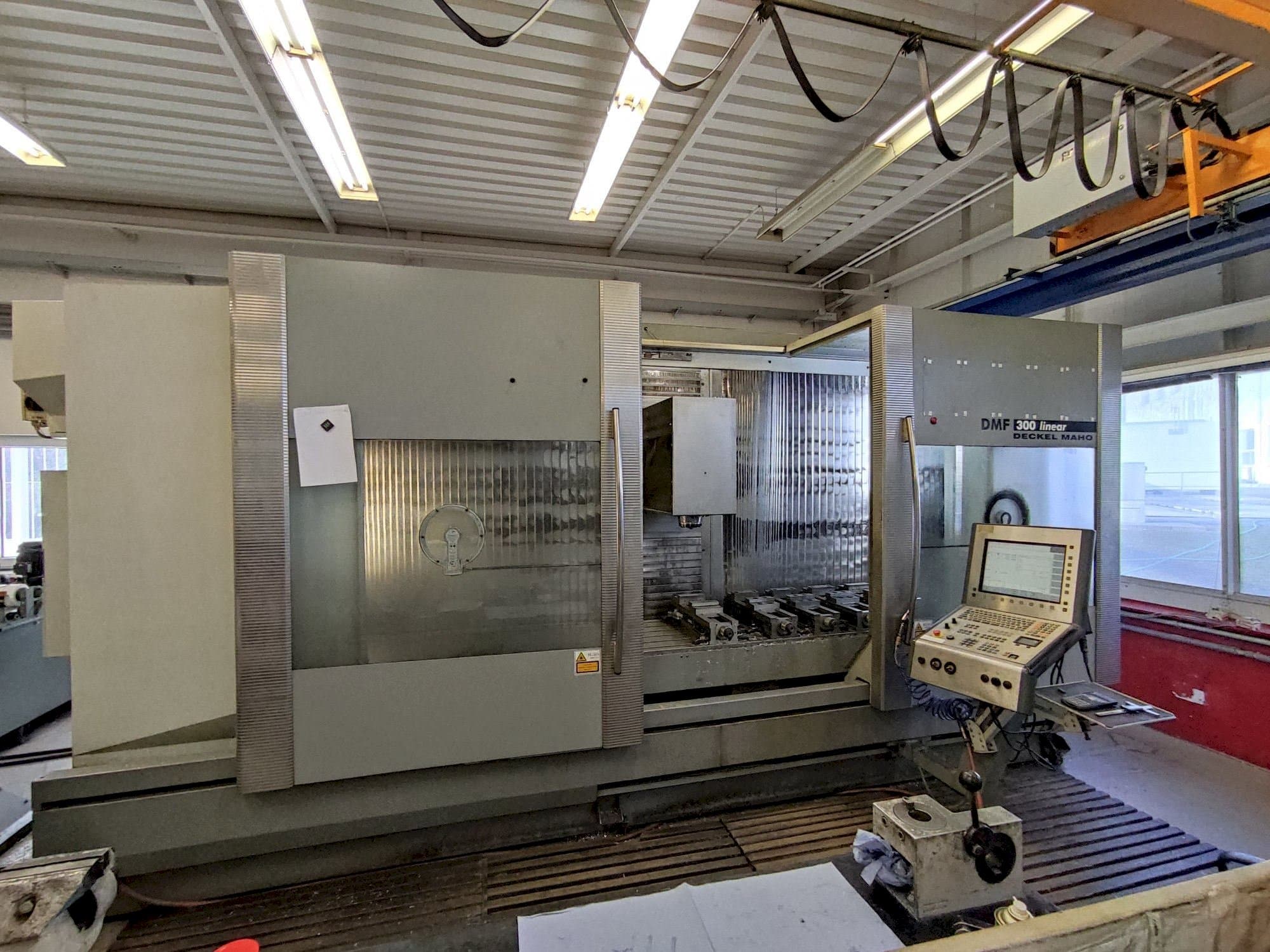

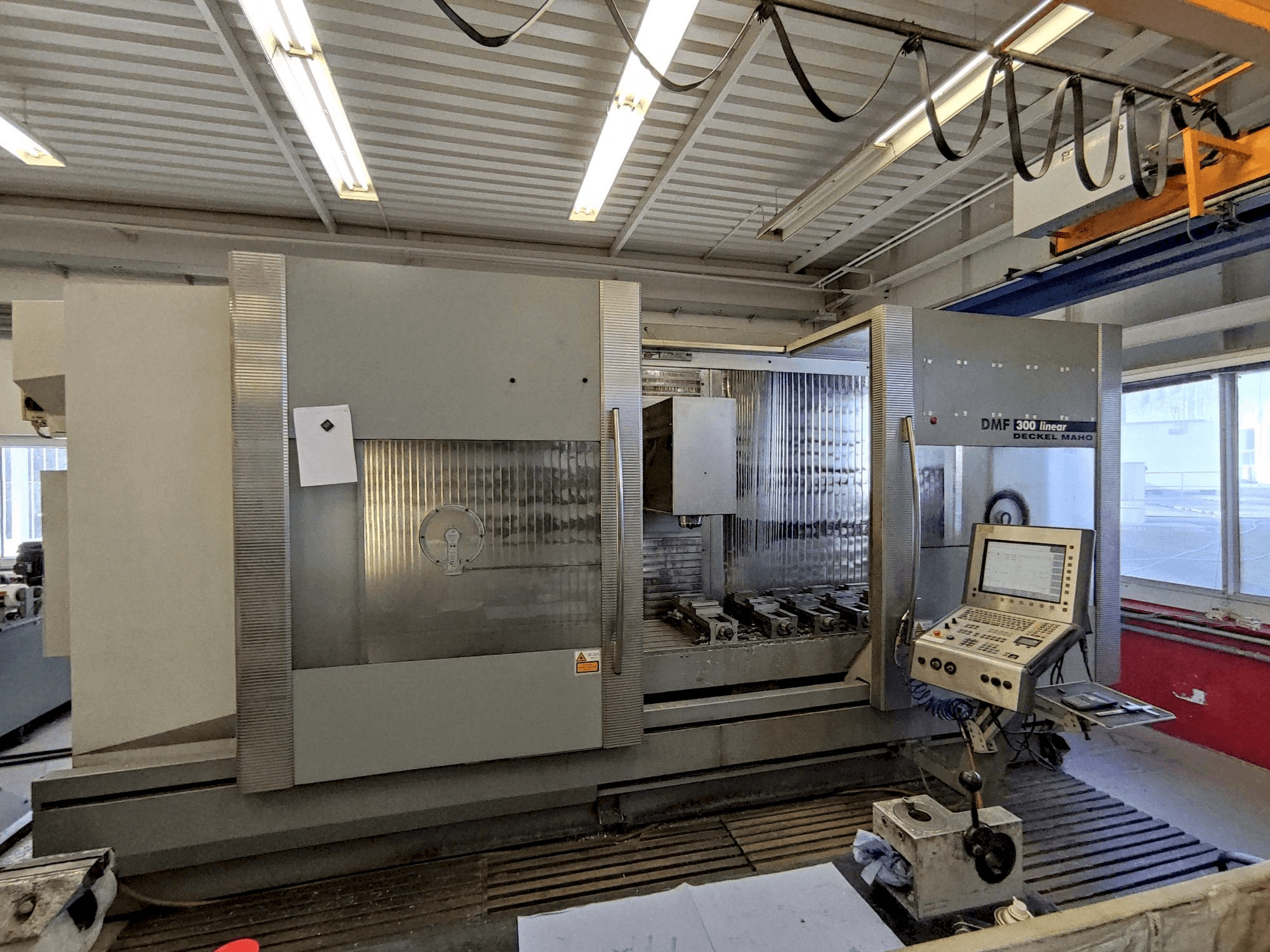

Front view of DECKEL MAHO DMF 300 linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMF 300 linear

Photo Gallery

DECKEL MAHO - DMF 300 linearCZ-MIL-DEC-2004-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO DMF 300 linear

Show in original language

This DECKEL MAHO DMF 300 linear vertical machining center was manufactured in Germany in the year 2004. This 3 axis machine has a total of 55365 operating hours, of which 22369 are spindle hours. It is operated through a Heidenhain iTNC 530 control unit. This machine has a spindle speed up to 18000 rpm. It has mainly been producing moulds. This machine got a new spindle in 2014 and a new ballscrew and bearings on z axis in the year 2016. It is in very good condition and has been regularly maintained.

Overview

brand: DECKEL MAHO
year: 2004
MODEL: DMF 300 linear
production hours: 55365
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMF 300 linear

General Data

Measurements width: 5272 mm
Measurements depth: 2903 mm
Measurements height: 2650 mm
Machine weight: 16500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Spindle motor power: 35/25 kW (40/100%)
Number of axis: 3

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 20000 mm/min
Y-AXIS Movement: 560 mm
Y-AXIS Working Feed: 20000 mm/min
Z-AXIS Movement: 720 mm
Z-AXIS Working Feed: 20000 mm/min

Workpiece

Workpiece weight: 3000 kg

Table

Outer length: 3400 mm
Outer width: 600 mm
Number of tslots: 6/18 H7
Distance between: 100 mm

Tools

Slots in storage: 30
Max tool diameter: 50 mm
Max tool length: 200 mm
Type of tool holder: SK 40

Media

Main electronic connection: 400 v 50 hz
Power consumption: 70 kva
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Heidenhain touch probe TS 641
Set of SK 40 tool holders (ca 50 pcs)

Machine Benefits

Qualitative Machine Benefits

Very good condition, regularly maintained.
2014 - new spindle
2016 -new ballscrew and bearings on z axis

Technical Machine Benefits

Cooling through spindle
Paper band filtration

Machine History

Industries

Die & mould

End product

Mould

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
