➤ Used DEMAG Ergotech Sytem 200-610 | Injection Moulding

Show in original language

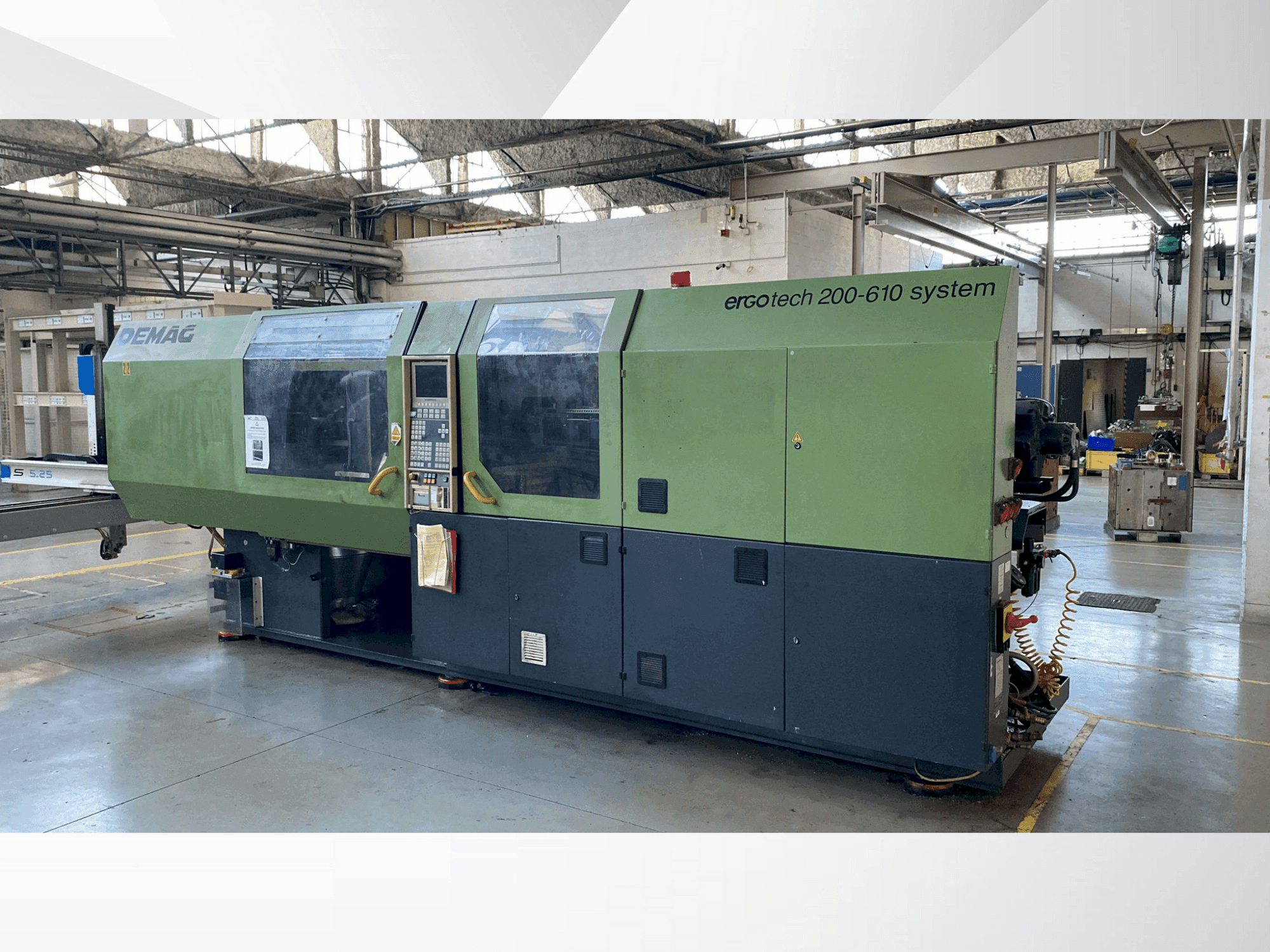

This DEMAG Ergotech System 200-610 hydraulic injection moulding machine was manufactured in 1997. It's a robust option for efficient plastic processing tasks. Contact us for more information.

Overview

brand: DEMAG
year: 1997
MODEL: Ergotech Sytem 200-610
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine

Technical Information - DEMAG Ergotech Sytem 200-610

Injection Unit

Screw diameter: 40 mm
Stroke volume: 40 mm CM³
Injection pressure: 2402 bars

Clamping unit

Clamping force: 200 tons KN
Ejector stroke: 180 mm

Additional Equipment

- SEPRO ROBOT INCLUDED

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Mold size: 230 - 500 mm
- - Ejection rod length: 230 mm
- - Fixed centering plate diameter: 160 mm
- - Movable centering plate diameter: 160 mm
- - Platen tapping diameter: m20
- - Number of cores: 1
- - Press type: nc4
- - Horizontal tie bar spacing: 560 mm
- - Vertical tie bar spacing: 560 mm
- - Maximum platen opening: 1235 mm
Qualitative Machine Benefits:
- - Maximum mold weight: 2500 kg
- - Mold weight on moving platen: 1700 kg
- - Oil reservoir volume: 650 liters
- - Pump power: 30 kw
- - Heater power: 13 kw
- - Heater power: 13 kw

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
