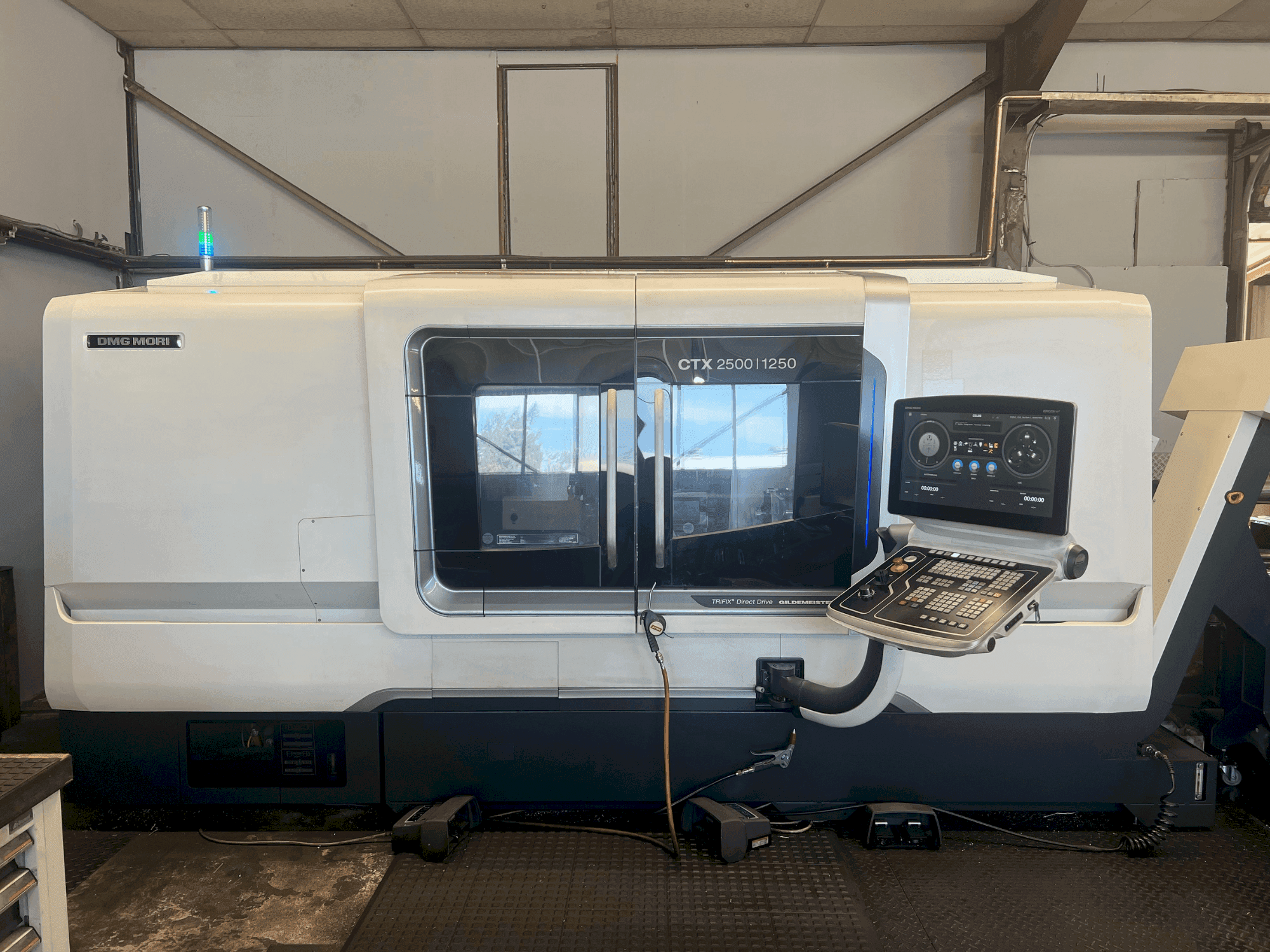

DMG MORI - CTX 2500/1250DE-TUR-DMG-2018-00001

Additional Equipment

• - Counter spindle turnMASTER 6 inch, ISM 36, Y-axis / C-axis and spindle brake (hydr.) / Reinforced coolant pump (5 - 20 bar) / Hinged belt chip conveyor / Tool measuring device in the work area (automatic, Ø 315 mm) / 12-station star turret, VDI 40 with quick-change system (TRIFIX) / Tool revolver completely replaced in December 2024 / Machine comes without chuck
• - Turret: Number of tool stations: 12 / Number of driven tool stations: 12 / Max. speed: up to 6000 rpm /Max. power (100% ED): 10 kW
• - Shank diameter according to DIN 69880: 40 mm
• - Off-center turning and milling / Milling of gearing using the hobbing process / Alternating speed technology cycle / Polygon turning (machining of elliptical and polygonal shapes) / Program status control / Gear skiving (technology cycle for gears) / Multi-thread cycle 2.0 (position-oriented threads) / Easy Tool Monitor 2.0 (tool monitoring system) / Energy meter for Siemens 840D sl OP CELOS / Hydraulic hollow clamping device Ø77 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Torque (100% ed): 410 nm / max. Torque (40% ed): 525 nm
  • - Circumferential diameter above bed: 710 mm / face travel: 260 mm / longitudinal stroke: 1345 mm
  • - Max. Chuck diameter: 315 mm
