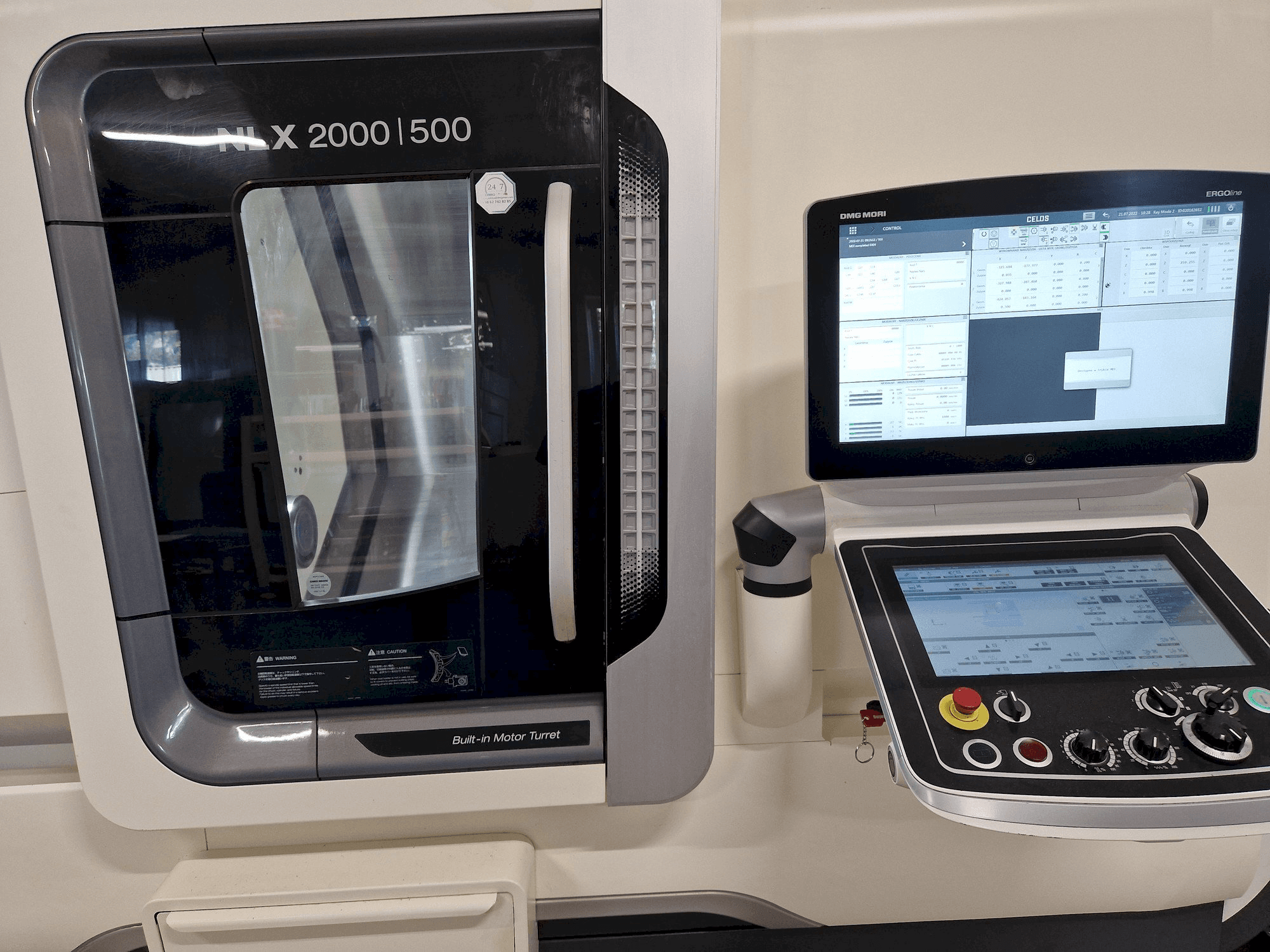

DMG NLX2000SY-500

Photo Gallery

DMG - NLX2000SY-500PL-TUR-DMG-2017-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG NLX2000SY-500 Lathes and Milling machine

Show in original language

This DMG NLX2000SY-500 Lathe and Milling machine was manufactured in the year 2017 in Japan and has 1173 hours. It is equipped with a CELOS M730UM control unit. The machine has a spindle speed of 10000 rpm, is in very good condition and well maintained

Overview

brand: DMG
year: 2017
MODEL: NLX2000SY-500
production hours: 1173
application type: Turning
Location: Poland
machine type: Turn-Mill Centre

Technical Information - DMG NLX2000SY-500

General Data

Measurements width: 2820 mm
Measurements depth: 2082 mm
Measurements height: 2145 mm
Machine weight: 5100 kg

Control Unit

Model: M730UM

Main drive

Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 100 mm(<+/- 50 mm)
Z-AXIS Movement: 590 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Lns bar feeder model: qls80 s2 (2017)
Rod feeder connection (lns) (multiple)
Increased chip flushing capacity and tool and workpiece cooling
Air purge for the spindle (main spindle)
Workpiece ejector for counter-spindle
Setting unit mm
Milling of "islands" and open "pockets"
Hsc (high-speed cutting) milling cycle
Standard workpiece unloader (built-in type)
Slide guides in all axes

Technical Machine Benefits

Swing over bed: 923. 8 mm
Swing over cross slide: 755 mm
Maximum turning diameter: 366 mm, standard turning diameter: 271 mm , maximum turning length: 510 mm
Bar work capacity: 65 mm
No tools in the turret: 12 pcs
Tailstock travel: 564 mm
Spindle 1 holder: kitagawa 8-inch - bb208a621
Spindle 2 holder: kitagawa 6-inch - b206a521f
Chip conveyor (right-side ejection, hinged type)
High-pressure coolant system (max. Pressure 0. 8 mpa, power: 800/1100 w)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
