DOOSAN - DNM 6700GB-MIL-DOO-2016-00003
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Doosan DNM 6700 - Vertical Machining Center For Sale
Show in original language

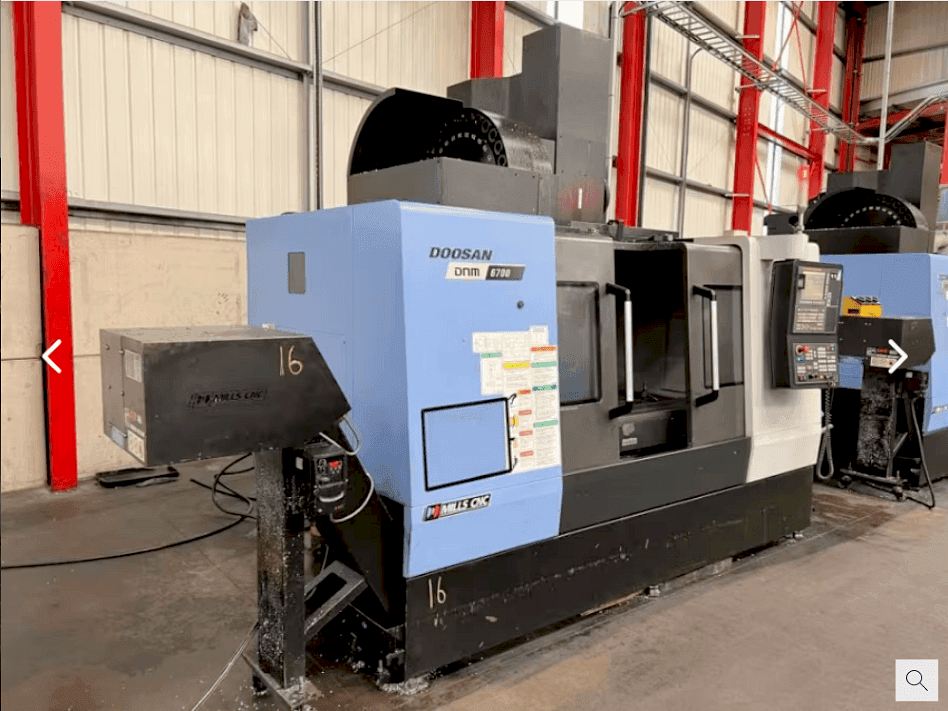

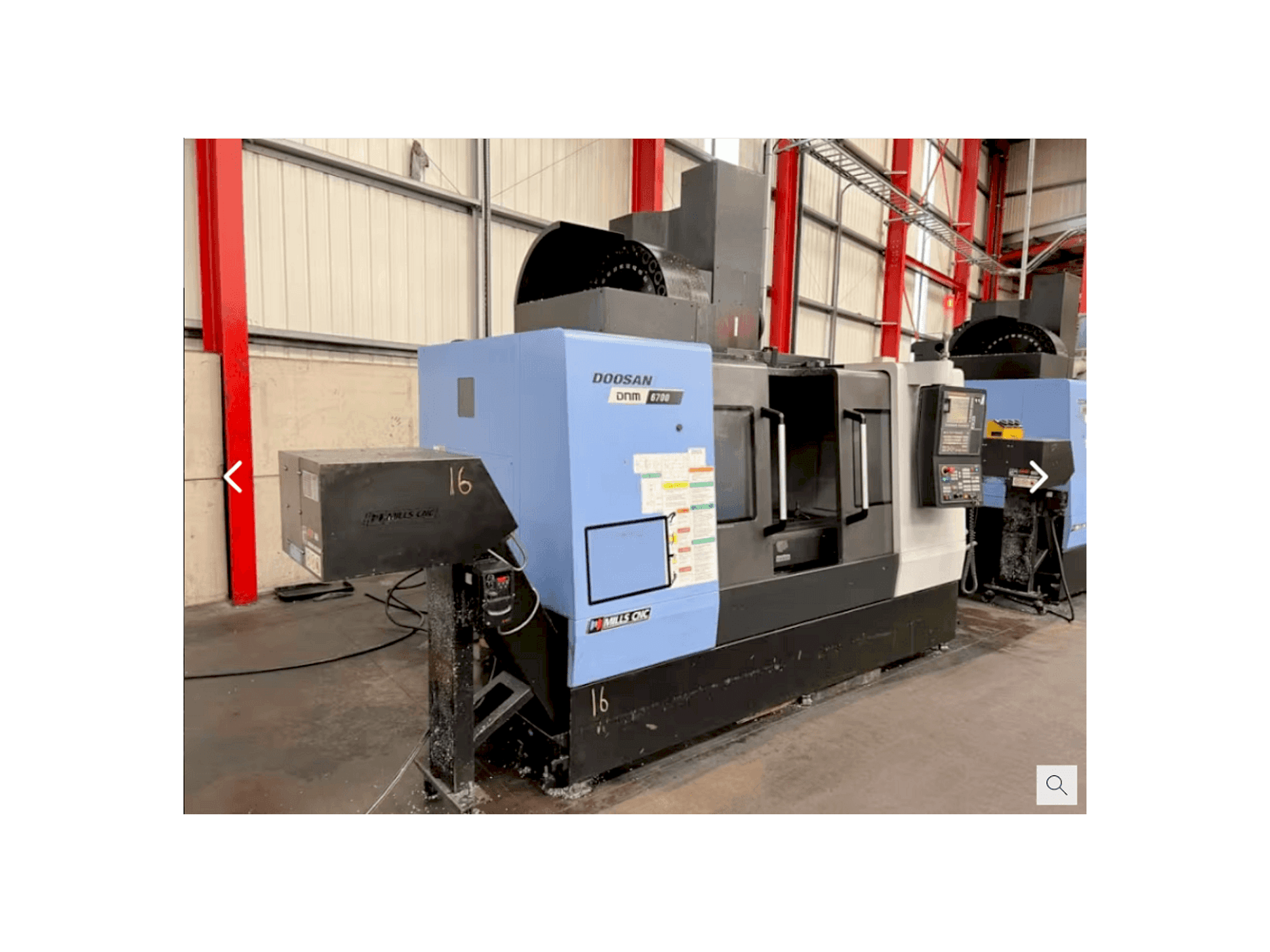

This Doosan DNM 6700 Vertical Machining center was manufactured in the year 2016 in South Korea. It is equipped with a Doosan Fanuc i-Series control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.
Overview
- brand: DOOSAN
- year: 2016
- MODEL: DNM 6700
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN DNM 6700
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Depth: 2415 mm
- Machine Height: 3100 mm
- Machine Weight: 8500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1300 mm
- Y-axis Travel: 670 mm
- Z-axis Travel: 625 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 30
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Good condition
Technical Machine Benefits
- Rapid feedrates: xyz: 36 x36 x 30m/minute
- Min-max height under spindle 150-775 mm
- Tool change time (chip to chip): 3. 2 seconds
- Spindle motor power 18. 5 kw
- Through spindle coolant
- Coolant
- Remote hand wheel, usb port
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
