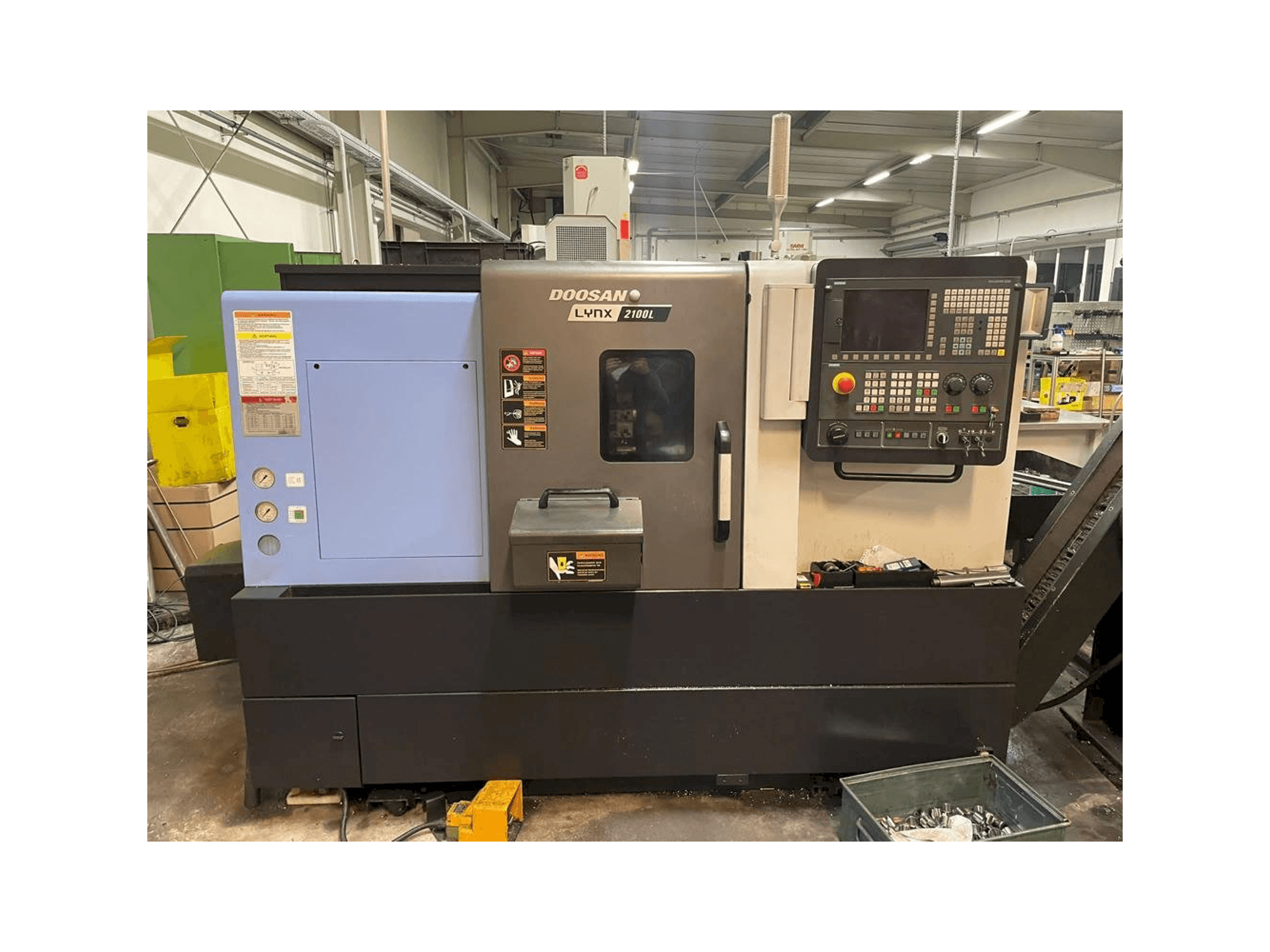

Front view of Doosan Lynx 2100LB machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Lynx 2100LB

Photo Gallery

DOOSAN - Lynx 2100LBGB-TUR-DOO-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 2100LB Lathe

Show in original language

This Doosan Lynx 2100LB Lathe was made in 2019 in South Korea. It is equipped with a Siemens Sinumerik 828D control unit and has 2 axis. The machine has a spindle speed of 4500 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2019
MODEL: Lynx 2100LB
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - DOOSAN Lynx 2100LB

General Data

Measurements width: 2570 mm
Measurements depth: 1595 mm
Measurements height: 1693 mm
Machine weight: 2950 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 828D

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 205 mm
Z-AXIS Movement: 560 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 600 mm, over carriage 400 mm
- - Maximum machining diameter 300 mm
- - Maximum machining length 550 mm
- - Bar capacity 65 mm
- - Main spindle motor power 15. 7/10. 5kw
- - Rapid feedrates xz: 30 x 36m/minute
- - Spindle nose a2-6
- - Tailstock travel 360 mm (taper mt #4, quill diameter 65)
- - Tool setter, parts catcher, coolant, 3 jaw chuck, usb port
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
