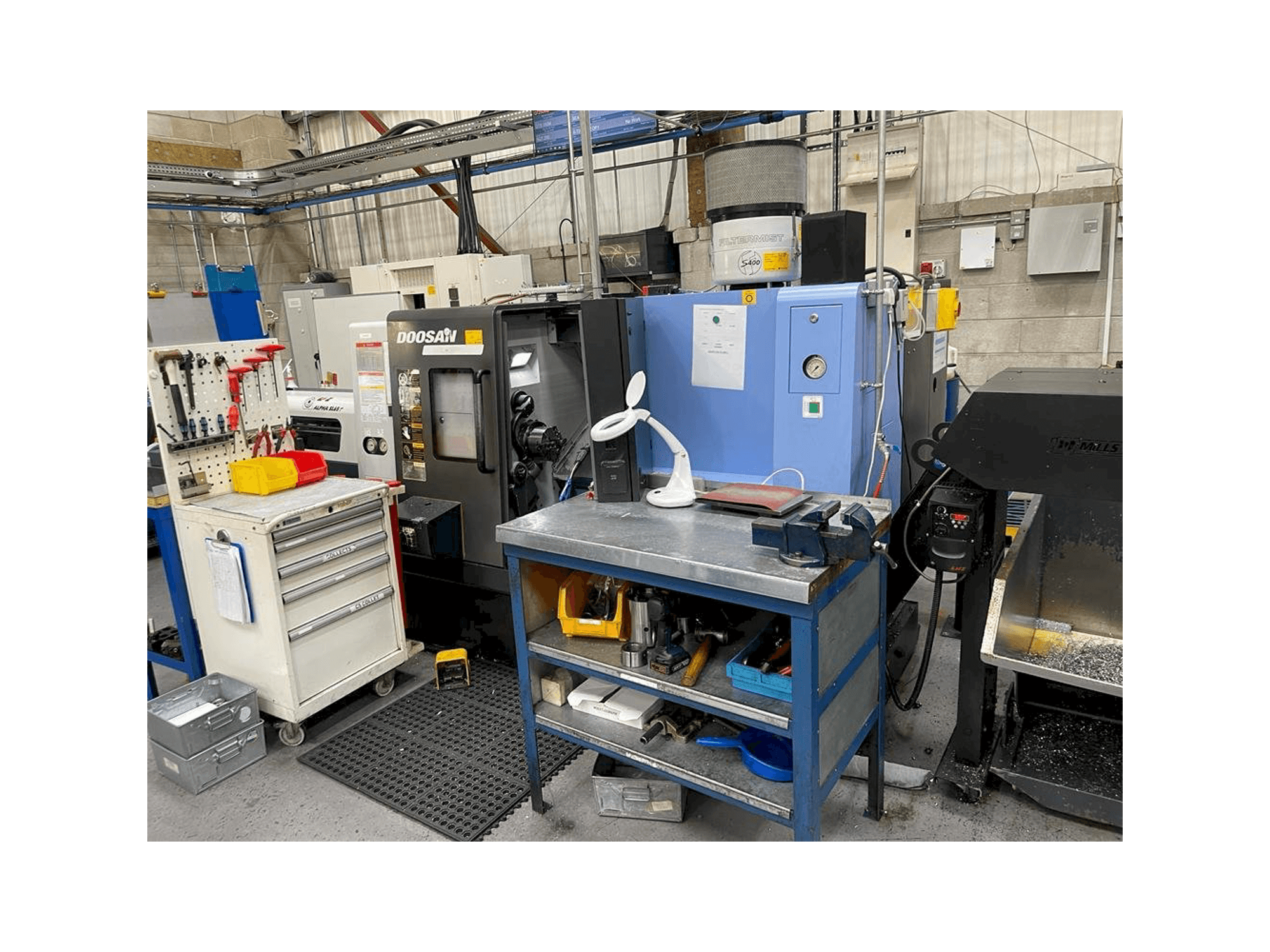

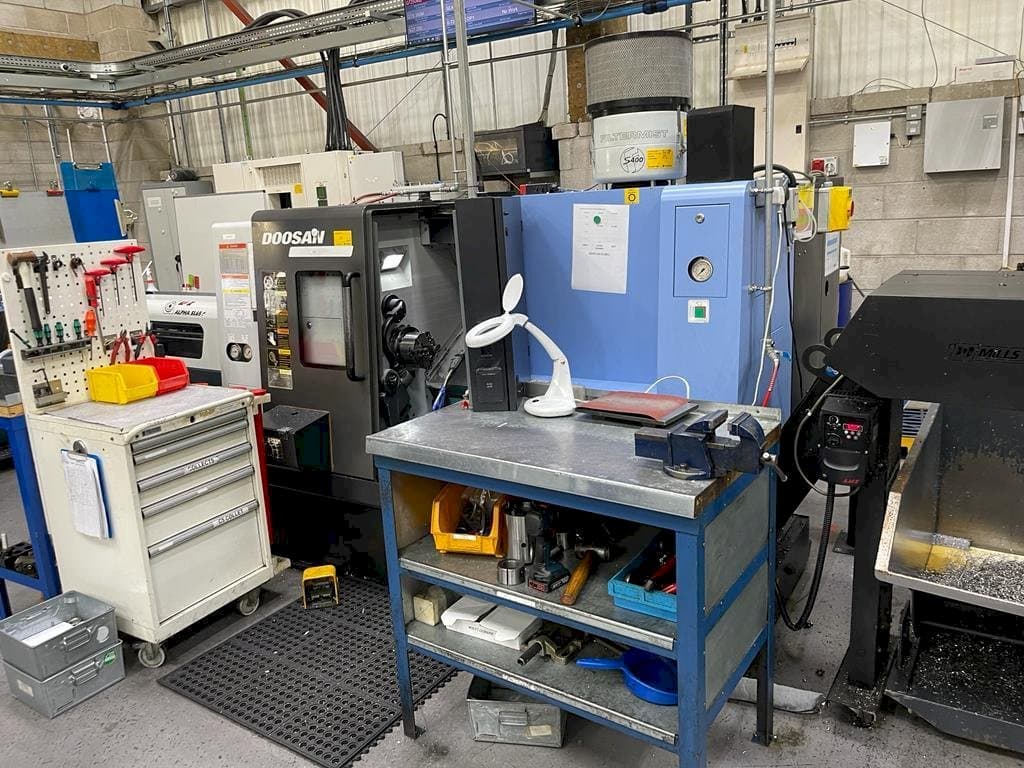

Front view of Doosan Lynx 220 LMA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Lynx 220 LMA

Photo Gallery

DOOSAN - Lynx 220 LMAGB-TUR-DOO-2014-00006

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 220 LMA Lathe machine

Show in original language

This Doosan Lynx 220 LMA Lathe machine was built in the year 2014. It is equipped with a FANUC i Series control unit and has 3 axis. The machine has a spindle speed of 6000 rpm and is in very good condition.

Overview

brand: DOOSAN
year: 2014
MODEL: Lynx 220 LMA
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220 LMA

General Data

Measurements width: 2630 mm
Measurements depth: 1600 mm
Measurements height: 1655 mm
Machine weight: 3100 kg

Control Unit

Brand: FANUC
Model: i Series

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 15/11 kW

Movement

X-AXIS Movement: 175 mm
Z-AXIS Movement: 550 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 24

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 510 mm, over carriage 290 mm
- - Maximum machining diameter 250 mm
- - Maximum machining length 510 mm
- - Bar capacity 51 mm
- - Turret positions 24 (positions 1-12 driven)
- - 0. 001 degree c axis
- - Tailstock (taper mt #4, quill diameter/ stroke 65/80mm)
- - 3 jaw chuck, magazine barfeed, swarf conveyor,
- - Tool setter, parts catcher
- - 3 controlled axes (x, z, c)
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
