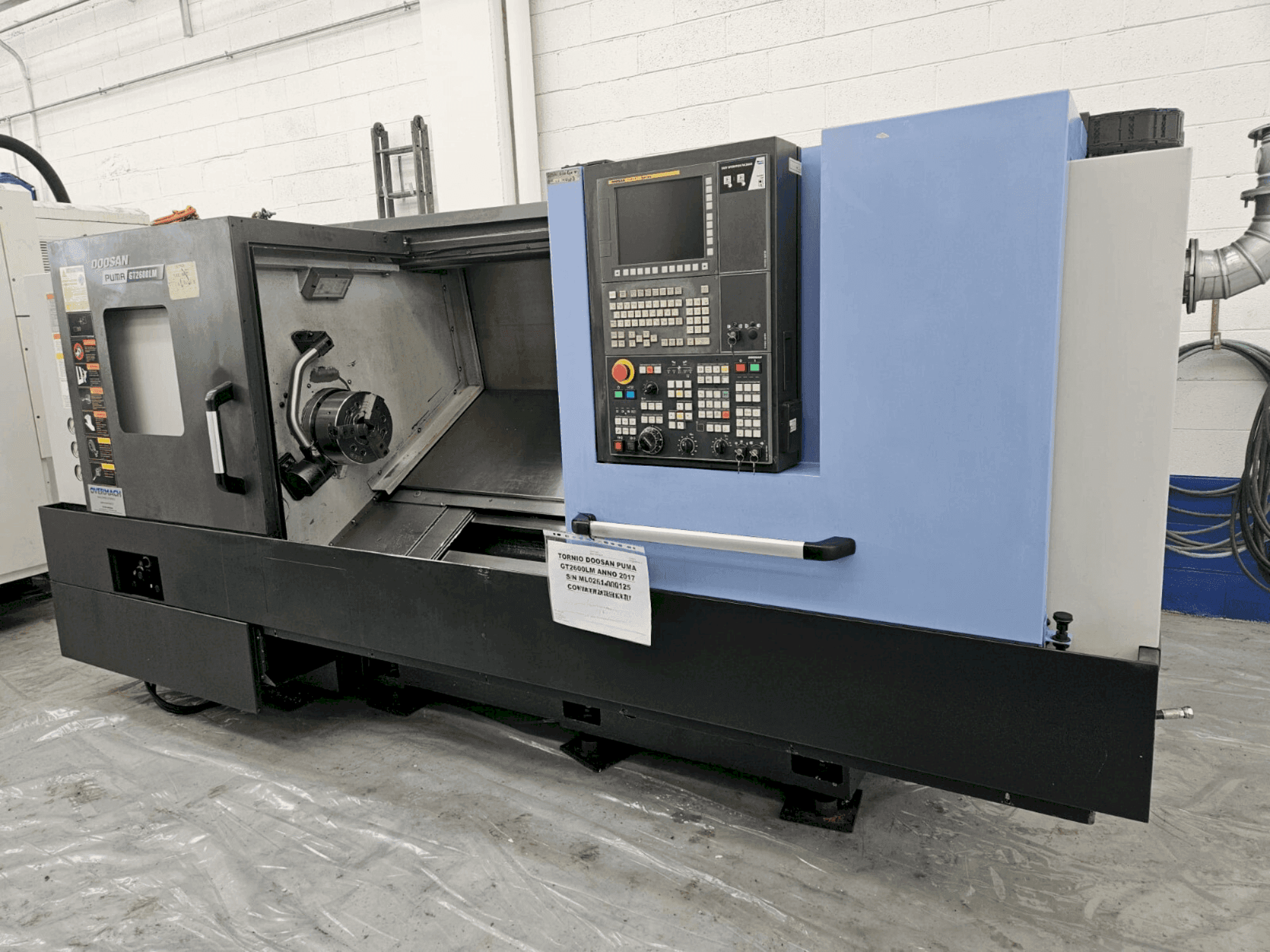

DOOSAN PUMA GT2600LM (2017) Lathe

Show in original language

This DOOSAN PUMA GT2600LM Lathe was manufactured in 2017. It is equipped with a belt Spindle which has 3500 r/min. The machine has a turret with 12 stations.

Overview

brand: DOOSAN
year: 2017
MODEL: PUMA GT2600LM
production hours: 2965
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN PUMA GT2600LM

General Data

Measurements width: 1630 mm
Measurements depth: 3735 mm
Measurements height: 1720 mm
Machine weight: 5900 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 265 mm
Z-AXIS Movement: 1100 mm

Turret

Number of turrets: 1
Number of tool slots: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotating diameter on the bench 630 mm // rotating diameter on the carriage 460 mm recommended turning diameter 255 mm
- - Max turning diameter 410 mm // max turning length 1030 mm
- - Bar diameter 81 mm
- - Asa a2#8 spindle nose
- - Spindle bearing diameter (front) 140 mm // spindle through hole diameter 91 mm // min. Spindle indexing angle (c axis) deg 0. 001deg
- - Turret: tool external diameter size 25 mm // boring diameter 50 mm // indexing time (rotation time) s 0. 15 // motorized tool spindle speed r/min 5,000
- - Rapid feed (x axis) m/min 24 // rapid feed (z axis) m/min 30
- - Sleeve diameter 100 mm
- - Mt#5 quill bore taper (motorized).
- - Stub travel 100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
