Doosan Puma MX 2100 ST Lathe

Show in original language

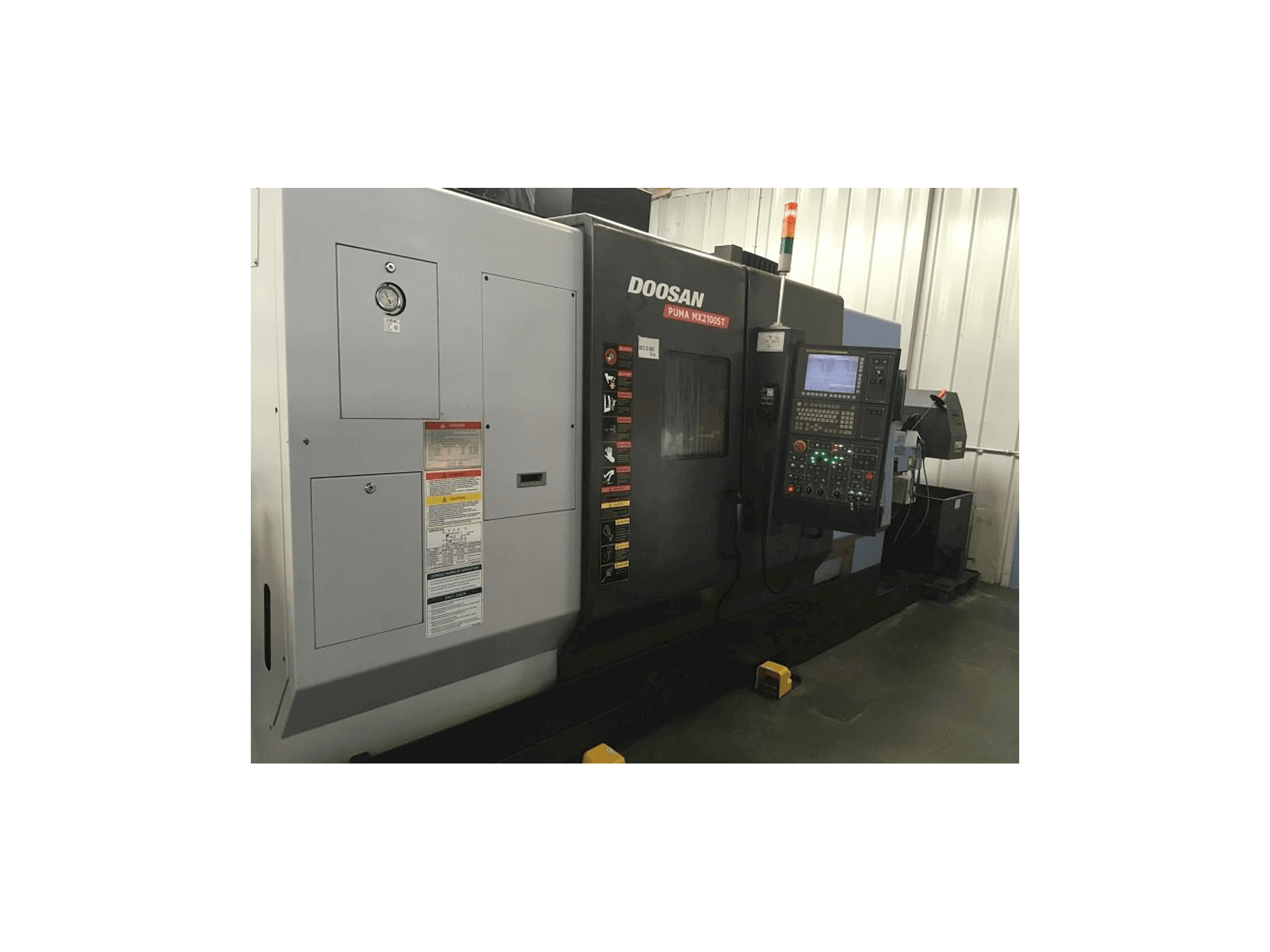

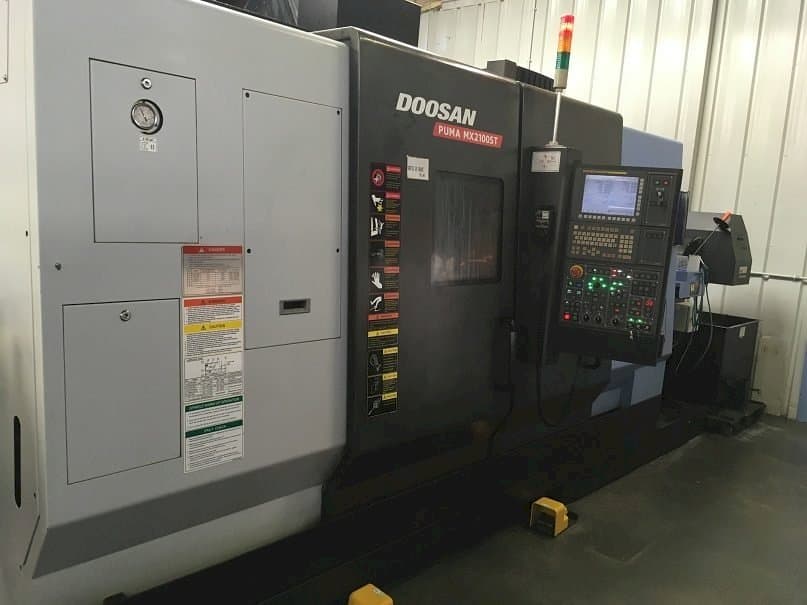

This Doosan MX 2100 ST Lathe was built in the year 2008 in Korea. Operated through a Fanuc 31 I Control unit, this 9 axis machine can work with a spindle speed up to 5000 rpm.

Overview

brand: DOOSAN
year: 2008
MODEL: Puma MX 2100 ST
application type: Turning
Location: France
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Puma MX 2100 ST

General Data

Measurements width: 7000 mm
Measurements height: 2500 mm
Machine weight: 11500 kg

Control Unit

Model: 31 I
Brand: FANUC

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 29 kW
Number of axis: 9

Movement

X-AXIS Movement: 565 mm
X-AXIS Rapid traverse: 36 mm/min
Y-AXIS Movement: 170 mm
Y-AXIS Rapid traverse: 26 mm/min
Z-AXIS Movement: 1050 mm
Z-AXIS Rapid traverse: 36 mm/min

Workpiece

Workpiece weight: 1000 kg

Tools

Number of stations: 12
Slots in storage: 40
Max tool diameter: 90 mm

Media

Oil water separator: Yes
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 540 mm
- - Max turning length: 1020 mm
- - Turning and milling operations horizontal/vertical with y-axis
- - Tool taper: milling capto c 6/ turning km 63
- - Subspindle, c-axis, b-axis, y-axis
- - 40-fold automatic tool changer
- - Automatic tool measuring device with swivel arm
- - Misc. Tool holders 20 capto halter
Qualitative Machine Benefits:
- - Soft jaws
- - Automatic power off
- - Tool setter
- - Bar feeder
- - Bar puller
- - Servo driven steady rest
- - Minimum quantity lubrication (mql) system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
