Durma AD-S 30320

Photo Gallery

Durma - AD-S 30320PL-BEN-DUR-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

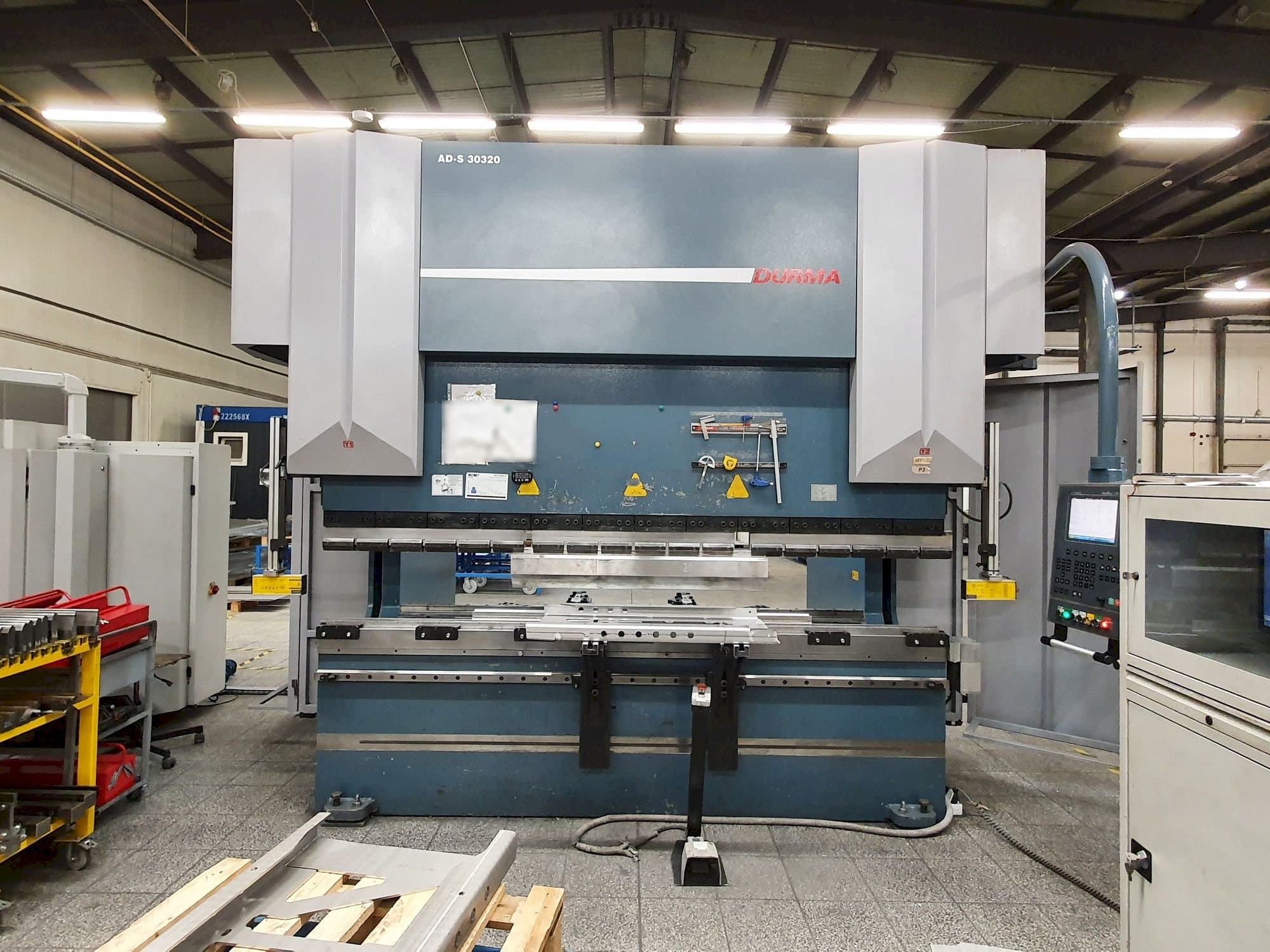

This Durma AD-S 30320 Bending Machine from Turkey was manufactured in the year 2012. It has a production history of approximately 34000 working hours. It is Equipped with a 10" color screen CYBELEC ModEva 10S control unit. This 8 axis machine stands out due to its bending length 3050 mm and bending force 3200 kN. It comes with a DURMA tool clamping system and a front laser protection of the working space, type FIESSLER AKAS. This machine is in very good working condition and ready for tests. It comes with its full documentation available.

Overview

brand: Durma
year: 2012
MODEL: AD-S 30320
production hours: 34000
application type: Bending
Location: Poland
machine type: Press Brake
control unit brand: CYBELEC

Technical Information - Durma AD-S 30320

General Data

Measurements width: 4300 MM
Measurements depth: 1820 MM
Measurements height: 3230 mm
Machine weight: 17500 kg

Control Unit

Model: ModEva10S
Brand: CYBELEC

Main drive

Bending length: 3050 mm
Throat: 450 mm
Stroke: 365 mm
Number of axis: 8

Movement

X-AXIS Movement: 650 mm
R-AXIS Movement: 250 mm

Table

Outer length: 900 mm
Outer width: 154 mm

Clamping unit

Max open daylight: 530 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 37 kW
Oil tank: 250 l

Additional Information

Additional equipment

Portable console with foot switch and stop / breakdown button
Lighting
Front laser protection of the working space, type FIESSLER AKAS
CNC table compensation, Wila type
Front supports: 2 pcs

Machine Benefits

Qualitative Machine Benefits

Machine in very good working condition
Full documentation available
Ready for tests
X axis speed 500 mm/s, r axis speed: 350 mm/s
Bending force: 320 tons
It is 8 axis cnc press brake (y1, y2, x, r, z1, z2, x1, x2)
Cnc axis: y1, y2, x, r, z1, z2, x1, x2 v

Technical Machine Benefits

Extension of the back gauge up to 1000 mm
Central lubrication (manual)
Durma tool clamping system
2d graphics, 10 "color screen, 256 mb flash memory
Usb port and 3. 5 "floppy disk drive
Rj45 ethernet port for networking and rs 232 port
Programming of tools, angles and bending lengths
Axis corrections for the product and for the step (for each bend)
Simulation of the bending process (automatic selection of the bending sequence, collision signaling
Distance between columns: 2600 mm

Extra Information

No tooling included in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
