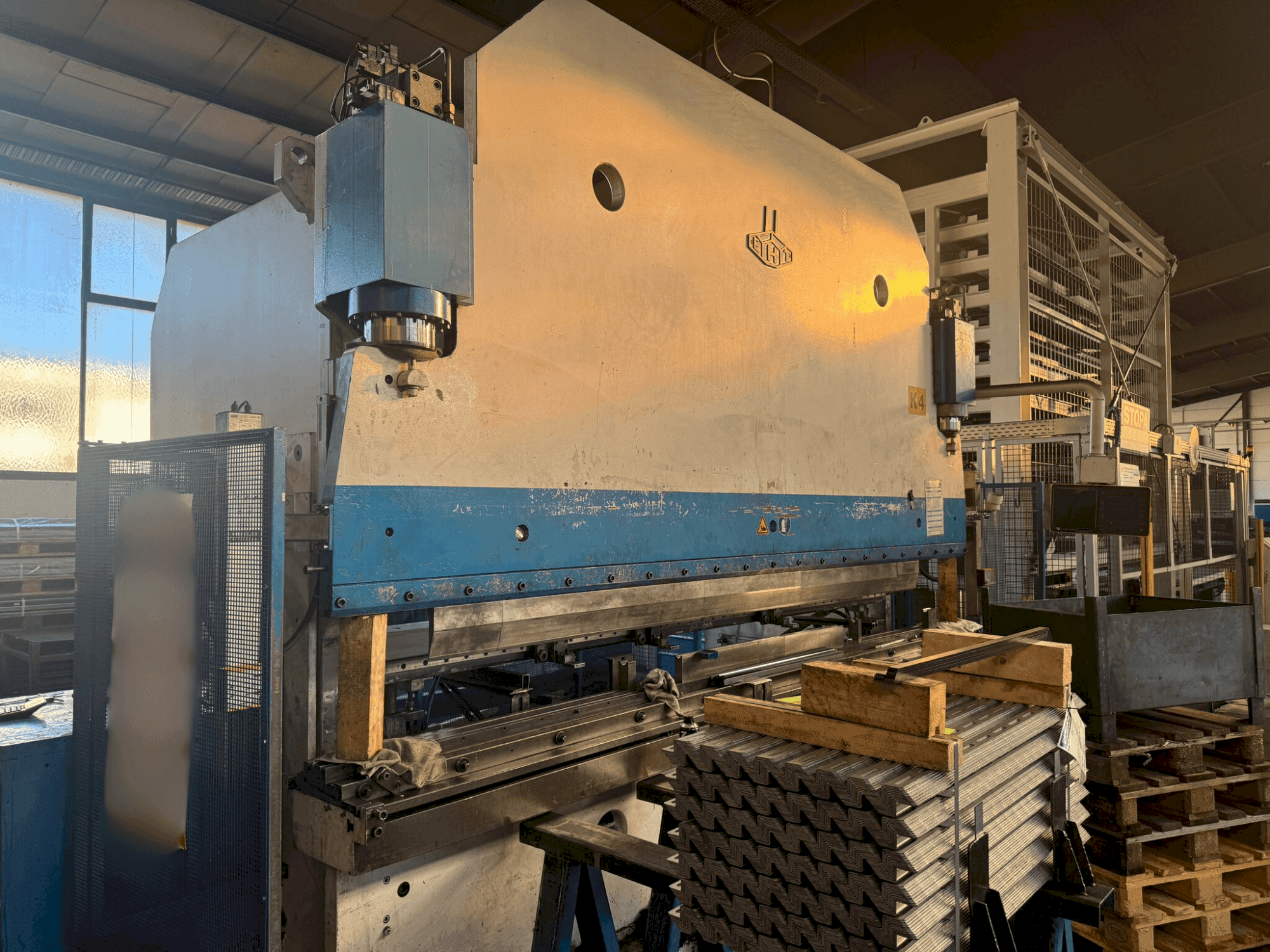

EHT - EHPS 15-40DE-PRE-EHT-1989-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Working length: 4050
  • - Frequency: 50 hz
  • - Operating voltage: 380 v
  • - Control voltage: 220/24 v
  • - Rated current: 47 a

Extra information

• - Machine still under power // Press force 1500 kN / Distance between columns 3545 mm/ Column utilization 350 mm/ Hydraulic ram stroke 220 mm/ Distance between table and ram: Max. stroke 490 mm, min. stroke 270 mm/ Stroke speed: Idle 100 mm/sec/ Under load 3-10 mm/sec/ Retraction 100 mm/sec/ Rip stop adjustment from tool center 5-1000 mm/ Rip stop adjustment speed 200 mm/sec/ Rip stop lowering +-10 mm/ Safety distance between tool and control element 120 mm/ Overtravel time 75 ms/ Overtravel distance 11 mm/ Main motor power 18.5 KW/ Rip stop drive power 3/6 Ns/ Max. hydraulic system pressure 265 bar/ Max. pneumatic system pressure 6 bar/ Contents Oil tank: 390 liters/ Machine weight: 14,500 kg
