EMAG VL3 Vertical Lathe

Show in original language

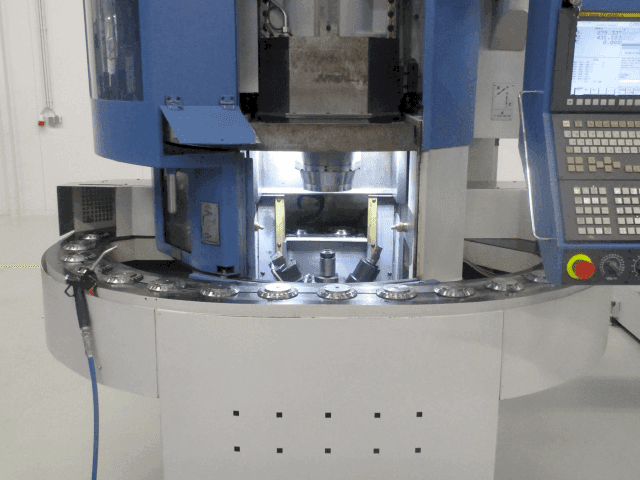

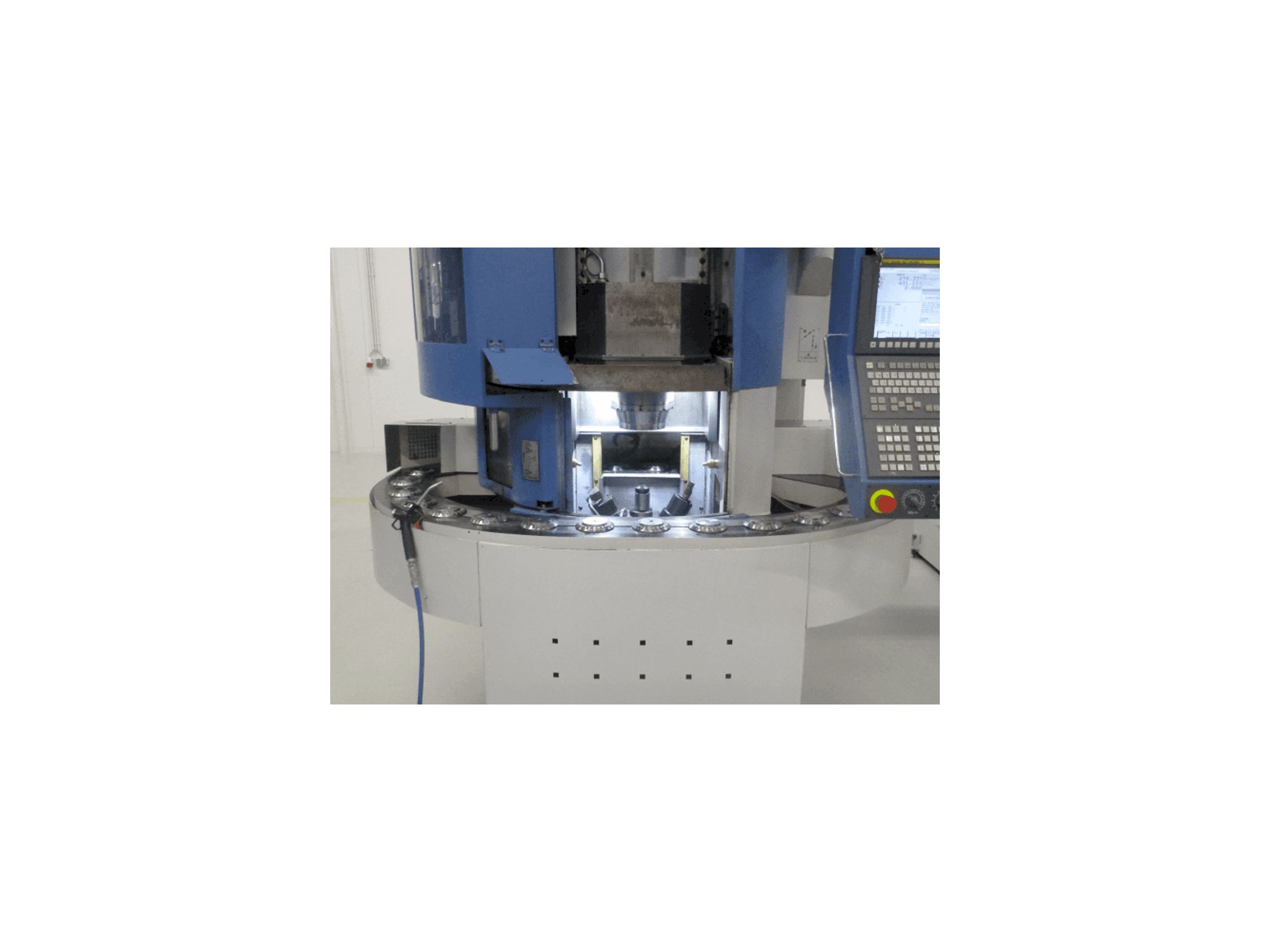

This EMAG VL3 Vertical Lathe was MADE in the year 2011. It has a production history of 10580 hours since then. It is operated through a FANUC Series 32i-Model A control unit. This machine can perform with a spindle speed up to 7500 rpm.

Overview

brand: EMAG
year: 2011
MODEL: VL3
production hours: 10580
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - EMAG VL3

General Data

Measurements width: 1900 mm
Measurements depth: 2500 mm
Measurements height: 2300 mm
Machine weight: 5500 kg

Control Unit

Model: Series 32i-Model A
Brand: FANUC

Main drive

Spindle speed range: 7500 1/MIN

Movement

X-AXIS Movement: 400 mm
X-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 200 mm
Z-AXIS Rapid traverse: 30 m/min

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Vertical turning lathe
- - Includes workpiece turning station
- - Control panel with 10. 4" colour lcd screen
- - Chuck diameter mm 170, swing diameter mm 210
- - Cylindrical shank holder din 69880 12-fold
- - Spindle flange according to din 55026 size 5
- - Spindle bearing - Ø front mm 80
- - Ac asynchronous motor 100/ 40% ed kw 16/25
- - Torque 100/ 40% ed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
