EMAG - VSC 500DE-TUR-EMA-1998-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- EMAG VSC 500
Show in original language

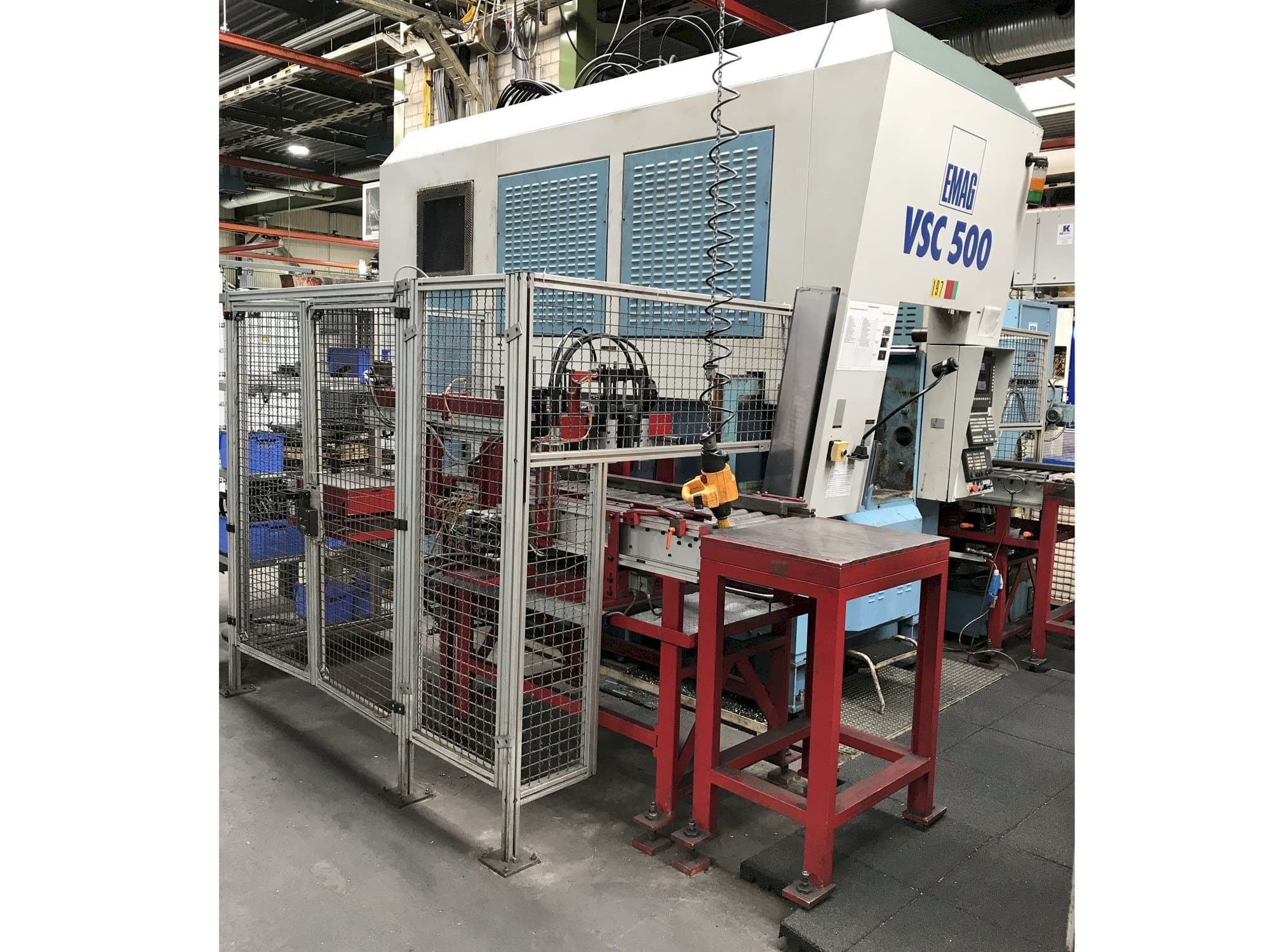

This EMAG VSC 500 Lathe were manufactured in 1998. It is operated with a control unit SIEMENS Sinumerik 840 D with 14'' display. This 2 axis machine can work with a spindle speed up to 3400 rpm and a swing diameter 520 mm.
Overview
- brand: EMAG
- year: 1998
- MODEL: VSC 500
- application type: Turning
- Location: Germany
- machine type: Vertical Turning Machine
- control unit brand: SIEMENS
Technical Information - EMAG VSC 500
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840 D
Dimensions
- Machine Depth: 4050 mm
- Machine Height: 4250 mm
- Machine Weight: 12000 kg
Movement
- Number of Axes: 2
- X-axis Travel: 1000 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Power: 71 kW
- Spindle Speed: 3400 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Cylindrical shank din 69880 12-fold shank Ø 50 mm
- Control voltage - direct current 24 v
- Control voltage - alternating current 230 v
- Workpiece diameter 440 mm
- Workpiece height 250 mm
- Discharge height 1250 mm
- Dimensions (with automation): length 4500 mm; width 4000 mm; height 4250 mm
Technical Machine Benefits
- Control unit with integrated plc-s7-300
- Chuck diameter 500 mm
- Swing diameter 520 mm
- Loading time 8-12 sec
- Spindle bearing -Ø front 160 mm
- Three-phase motor 40% ed 45 kw
- Full power from spindle speed 900 rpm
- Maximum torque 480 nm
- Torque 40% ed 750 nm
- Ball screw in x and z 50 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
